Entertainment Component Views

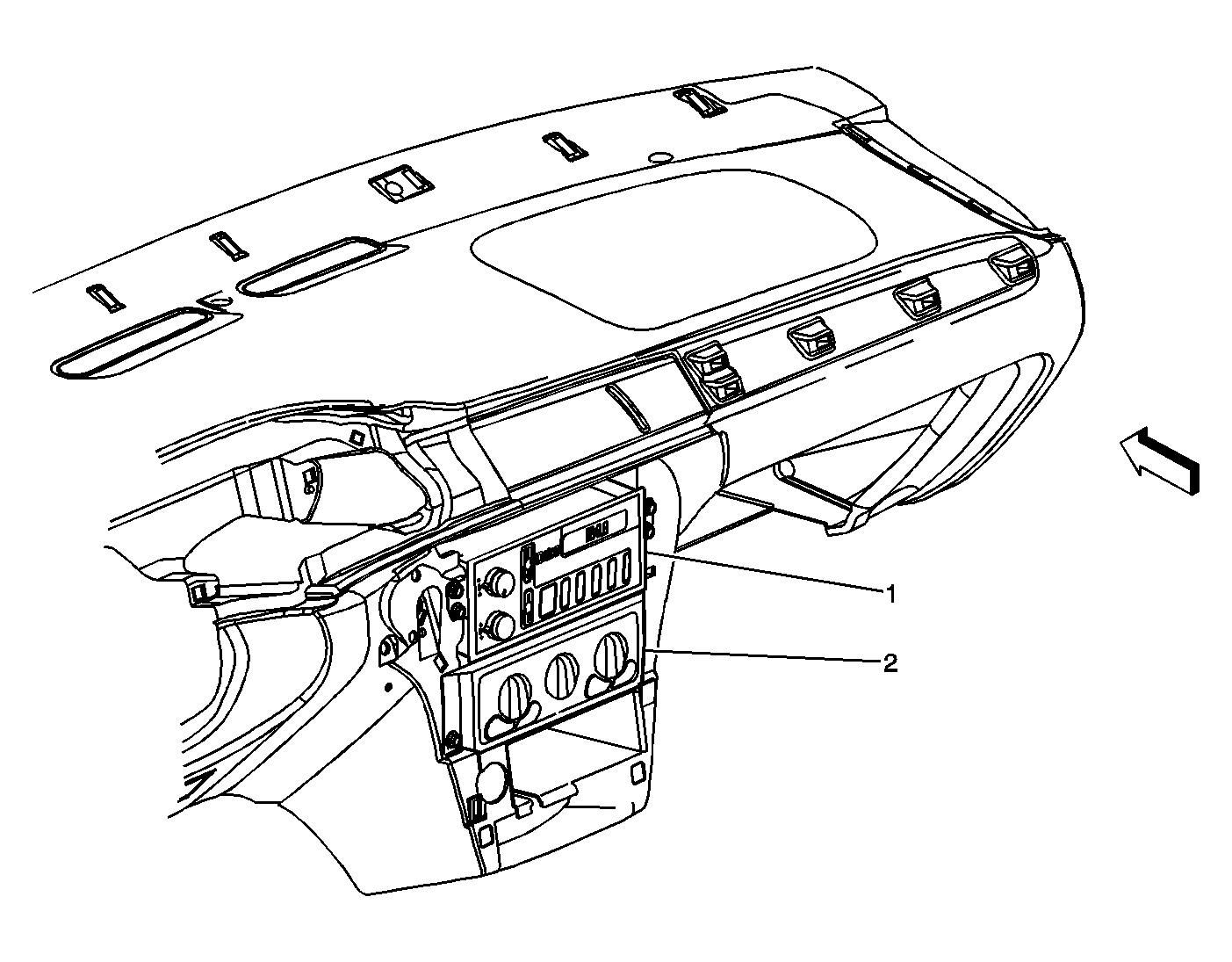

Fig 1: Below the Center of the IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	HVAC Control Assembly

Fig 2: Drivers Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch Connector, Driver
2	Power Mirror Switch Connector
3	Power Window Switch Connectors, Driver
4	Outside Rearview Mirror Connector, Driver
5	Window Motor, Driver
6	Speaker Connector, LF
7	Door Lock Motor Connector, Driver
8	Door Ajar Switch Connector, Driver

Fig 3: Front Passenger Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch Connector, Front Passenger
2	Door Ajar Switch Connector, Front Passenger
3	Door Lock Actuator Connector, Front Passenger
4	Speaker Connector, RF
5	Power Window Motor, Front Passenger
6	Outside Rearview Mirror Connector, Front Passenger
7	Power Window Switch Connector, Front Passenger

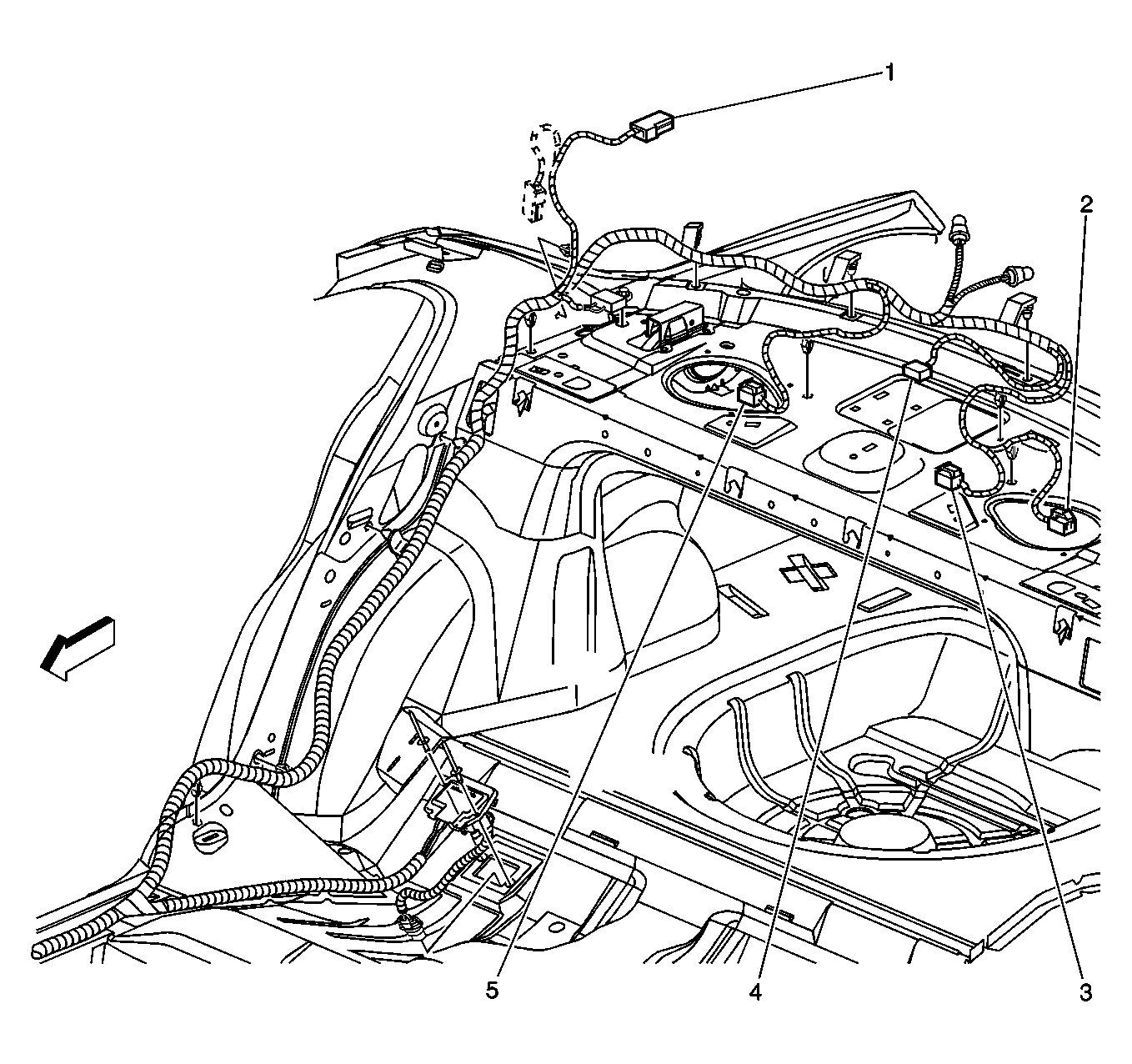

Fig 4: Right Side of the Passenger Compartment, Rear Package Shelf Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Defogger Grid Connector
2	Speaker Connector, Left Rear
3	Rear Compartment Courtesy Lamp Connector
4	Remote Control Door Lock Receiver (RFA) Connector
5	Speaker Connector, Right Rear
