Removal Procedure

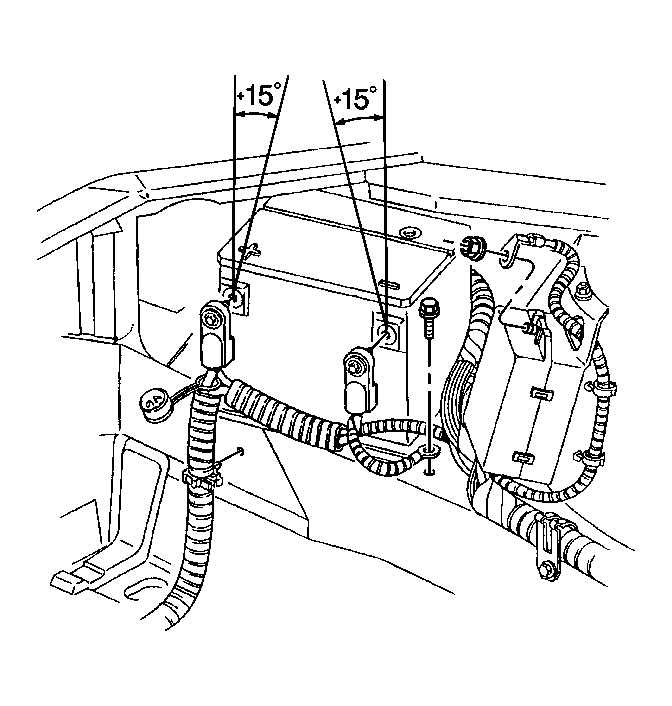

    Fig 1: Connecting Battery Cables
    GM289316Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the positive battery cable.
  3. Remove the battery hold down retainer.
    4. Fig 2: Proper Removal of Battery
    GM289311Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not tip the battery more than 40 degrees during removal.
  4. Remove the battery.
