Cruise Control Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

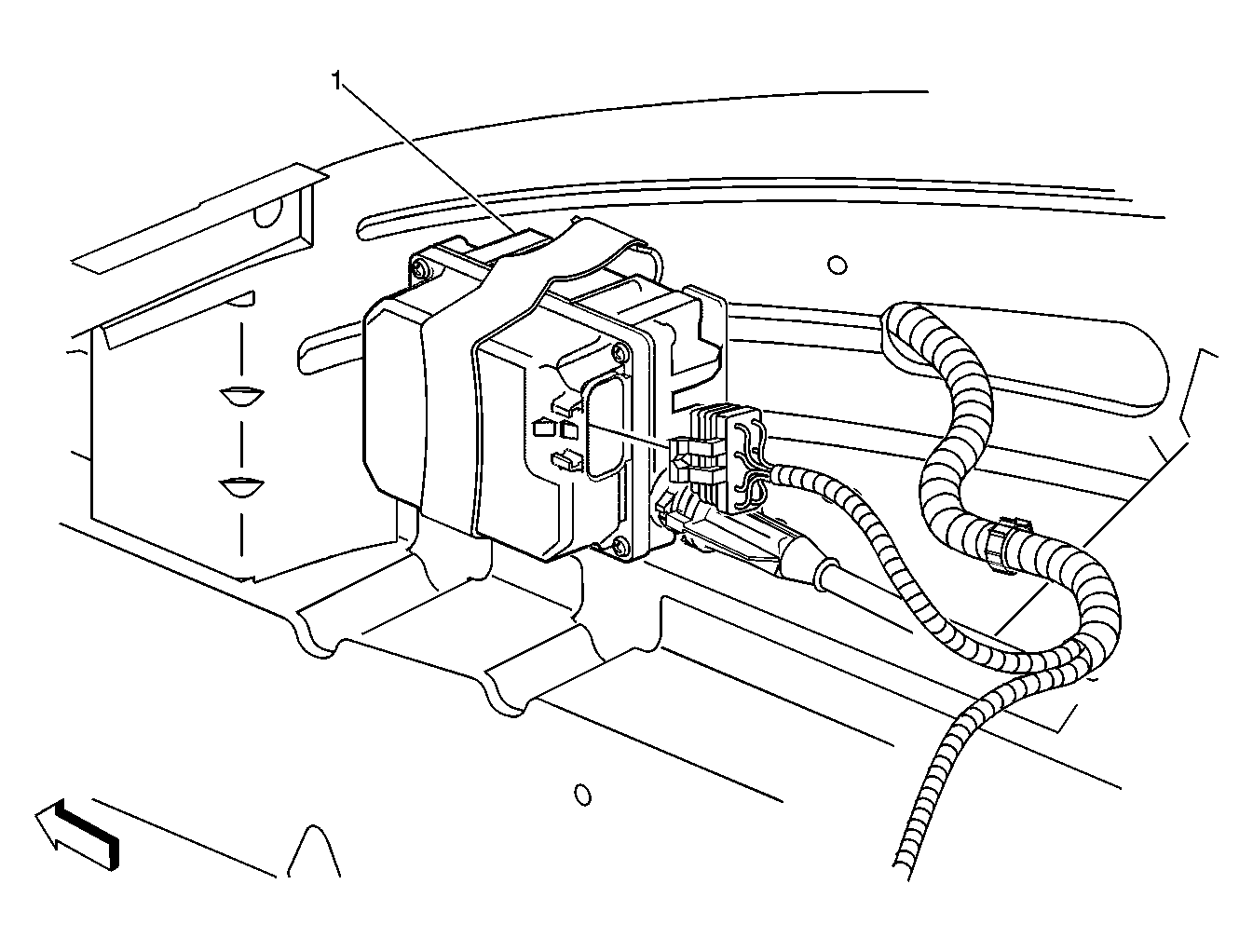

Fig 1: Right Side of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cruise Control Module (CCM)

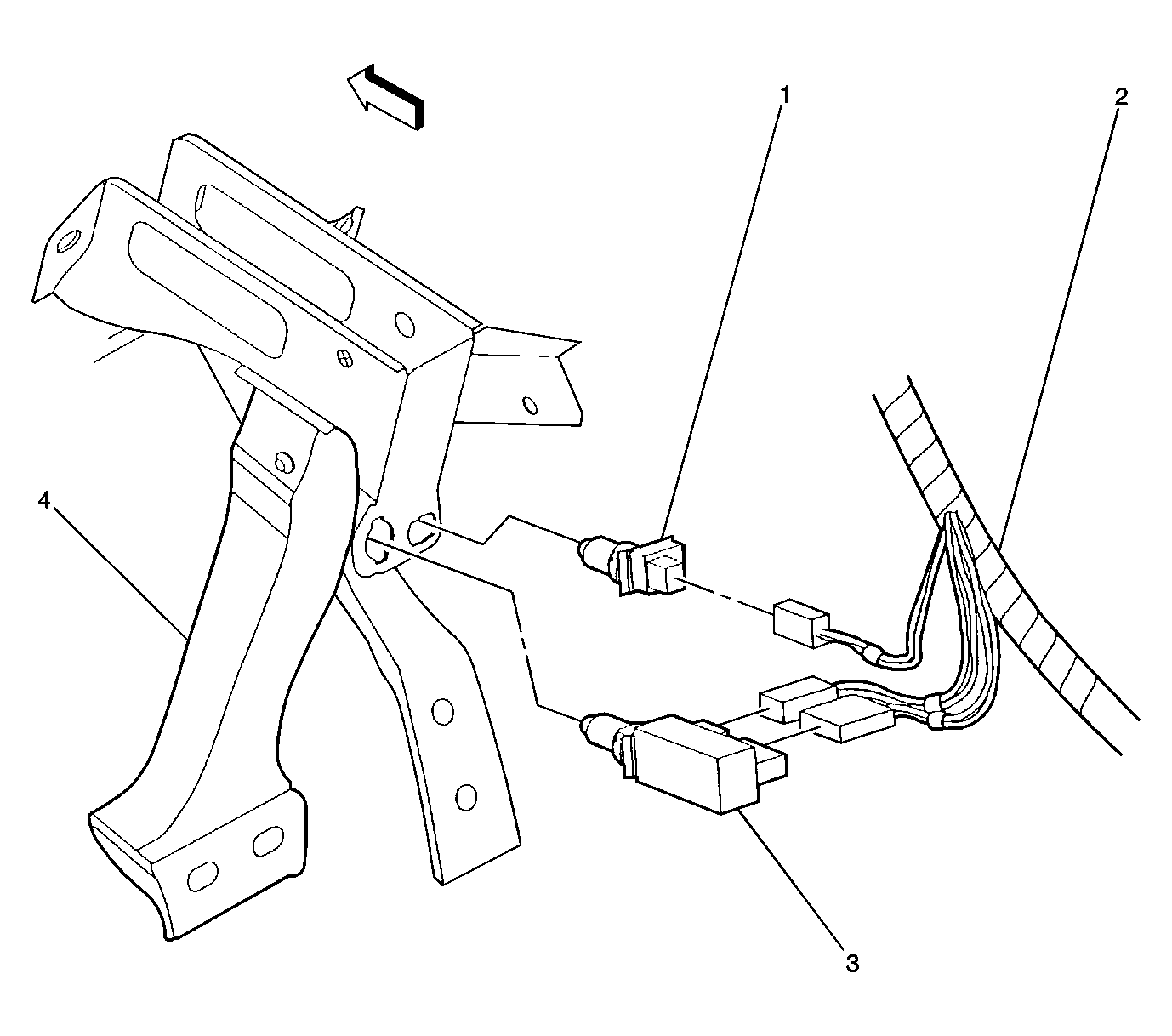

Fig 2: Below the Left Side of the I/P, Near the Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	TCC/Brake Switch
2	Dash Harness
3	Stop Lamp Switch
4	Brake Pedal

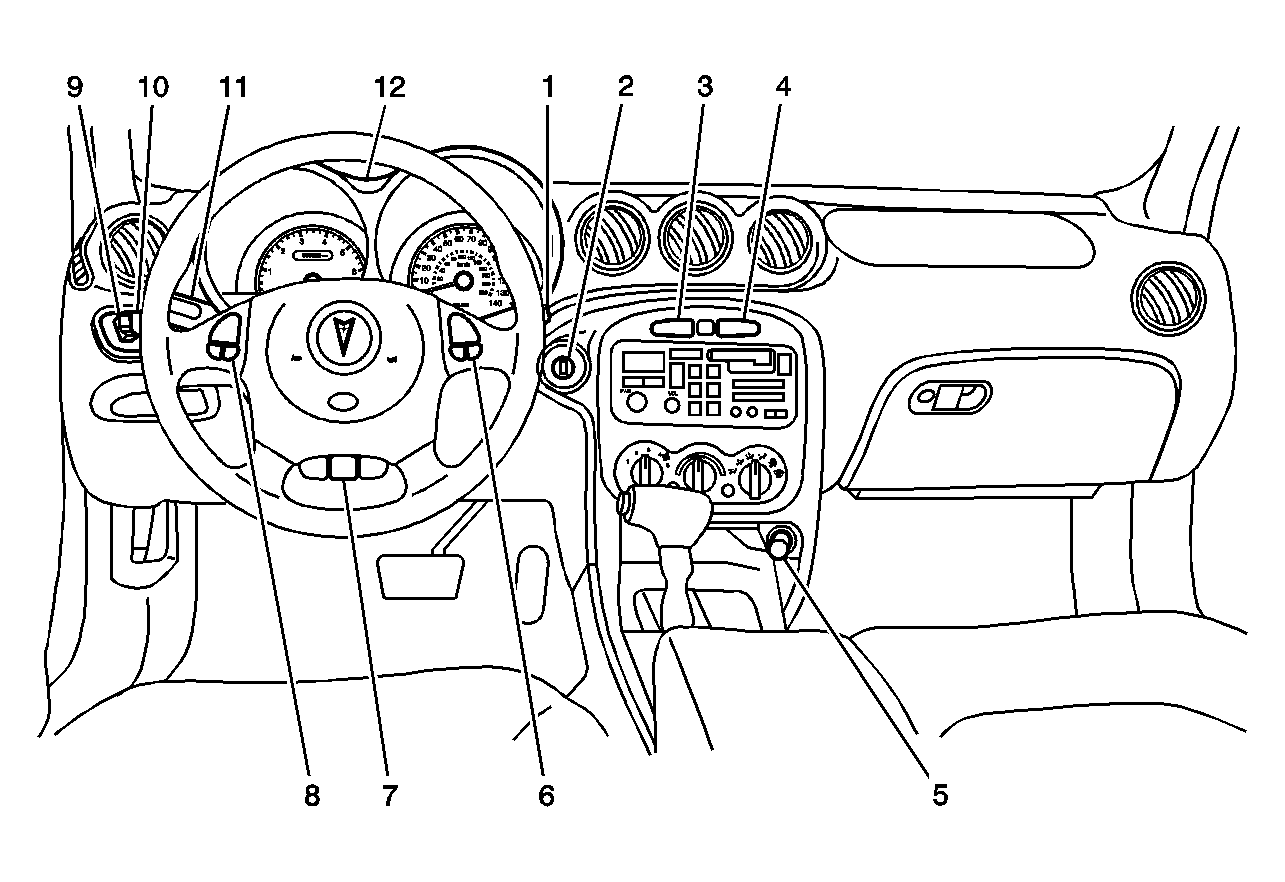

Fig 3: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Ignition Switch
3	Traction Control Switch (Pontiac)
4	Hazard Switch
5	Cigar Lighter
6	Steering Wheel Controls - Right
7	Cruise Control ON/OFF Switch
8	Steering Wheel Controls - Left
9	Fog Lamp Switch
10	I/P Dimmer Switch
11	Turn Signal/Multifunction Switch
12	Instrument Panel Cluster (IPC)

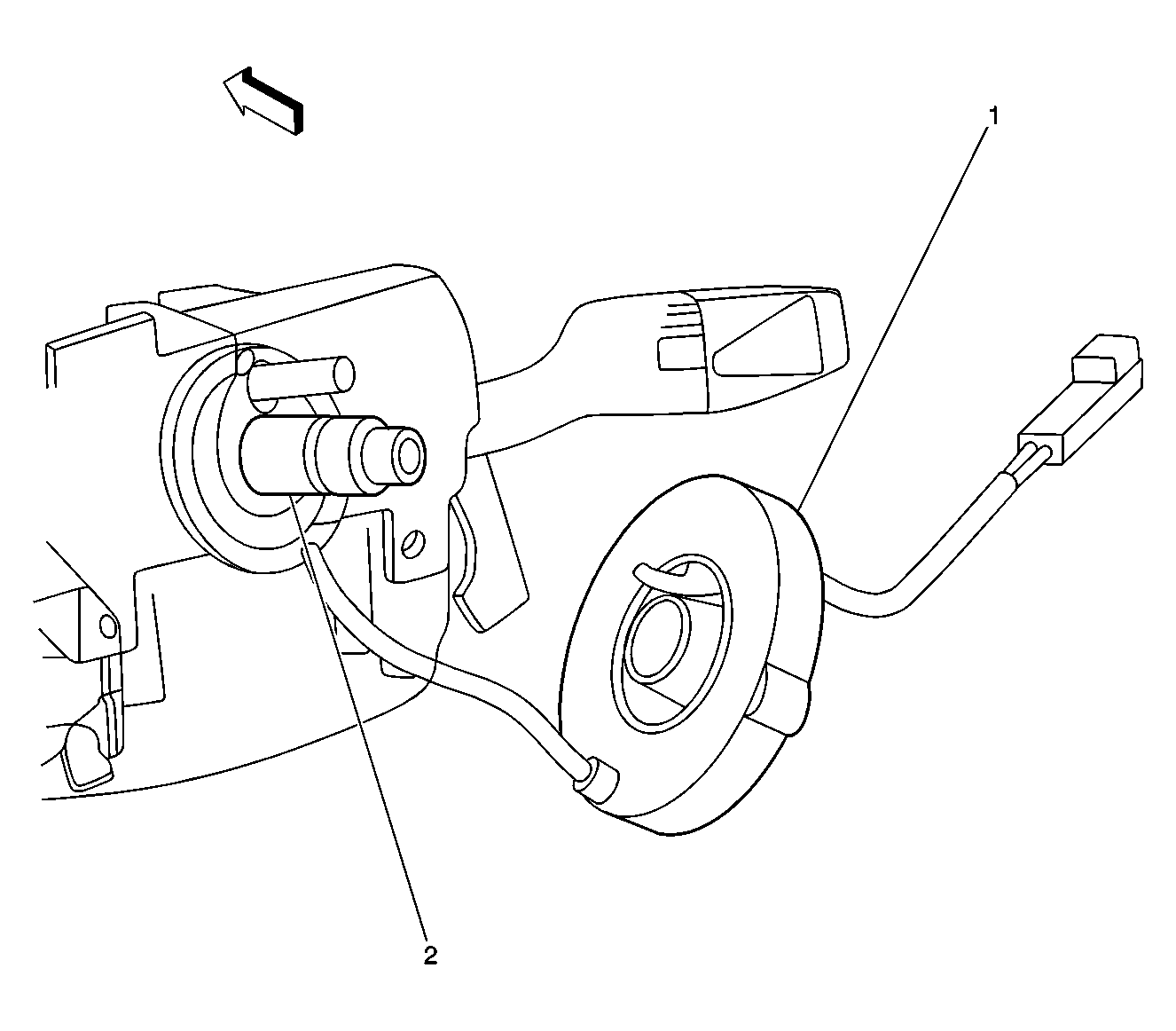

Fig 4: Inflatable Restraint Steering Wheel Module Coil Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Steering Column Assembly
