Cooling System Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Of Radiator Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Left
2	Cooling Fan - Right
3	A/C Refrigerant Pressure Sensor

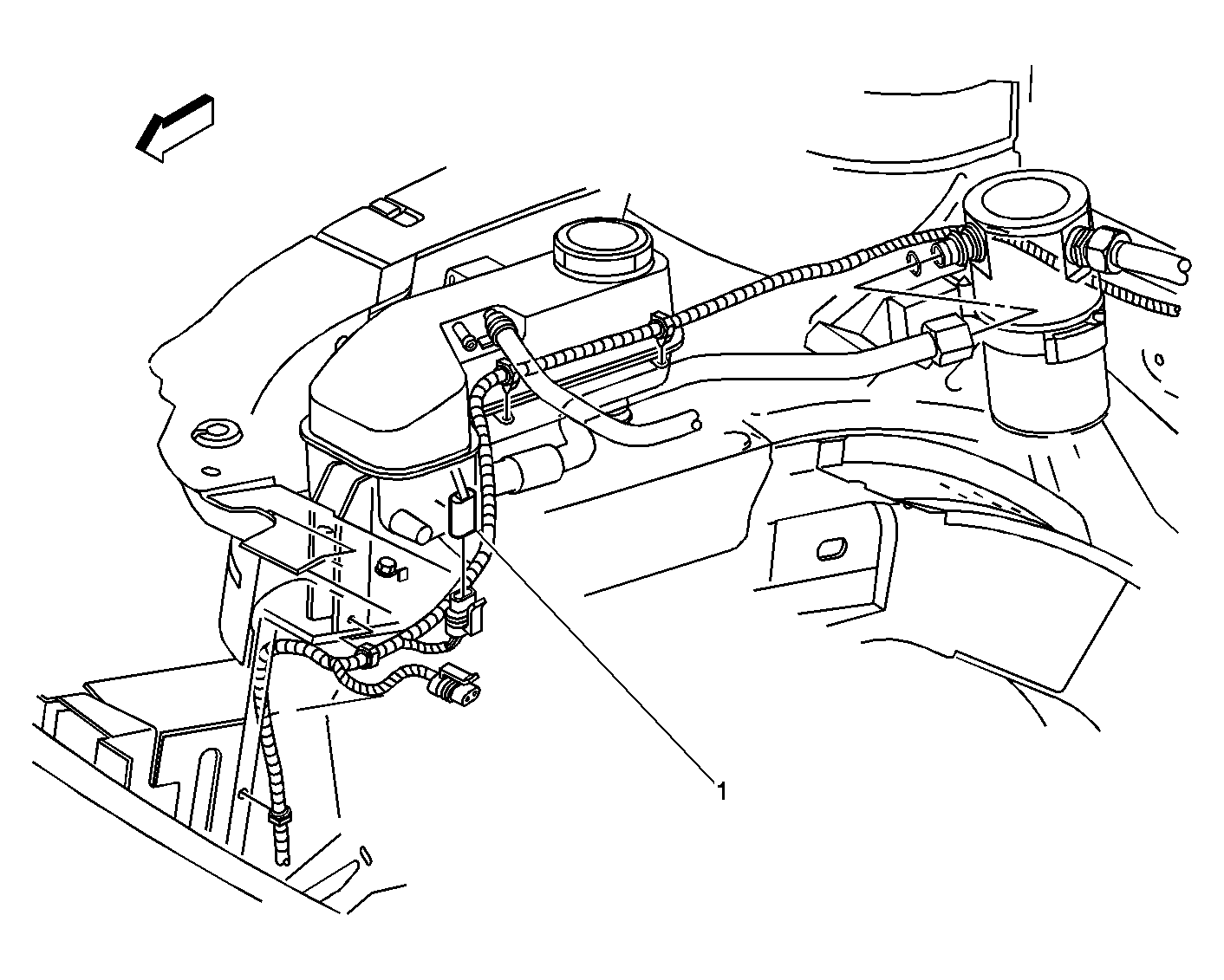

Fig 2: Engine Compartment - RF Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
