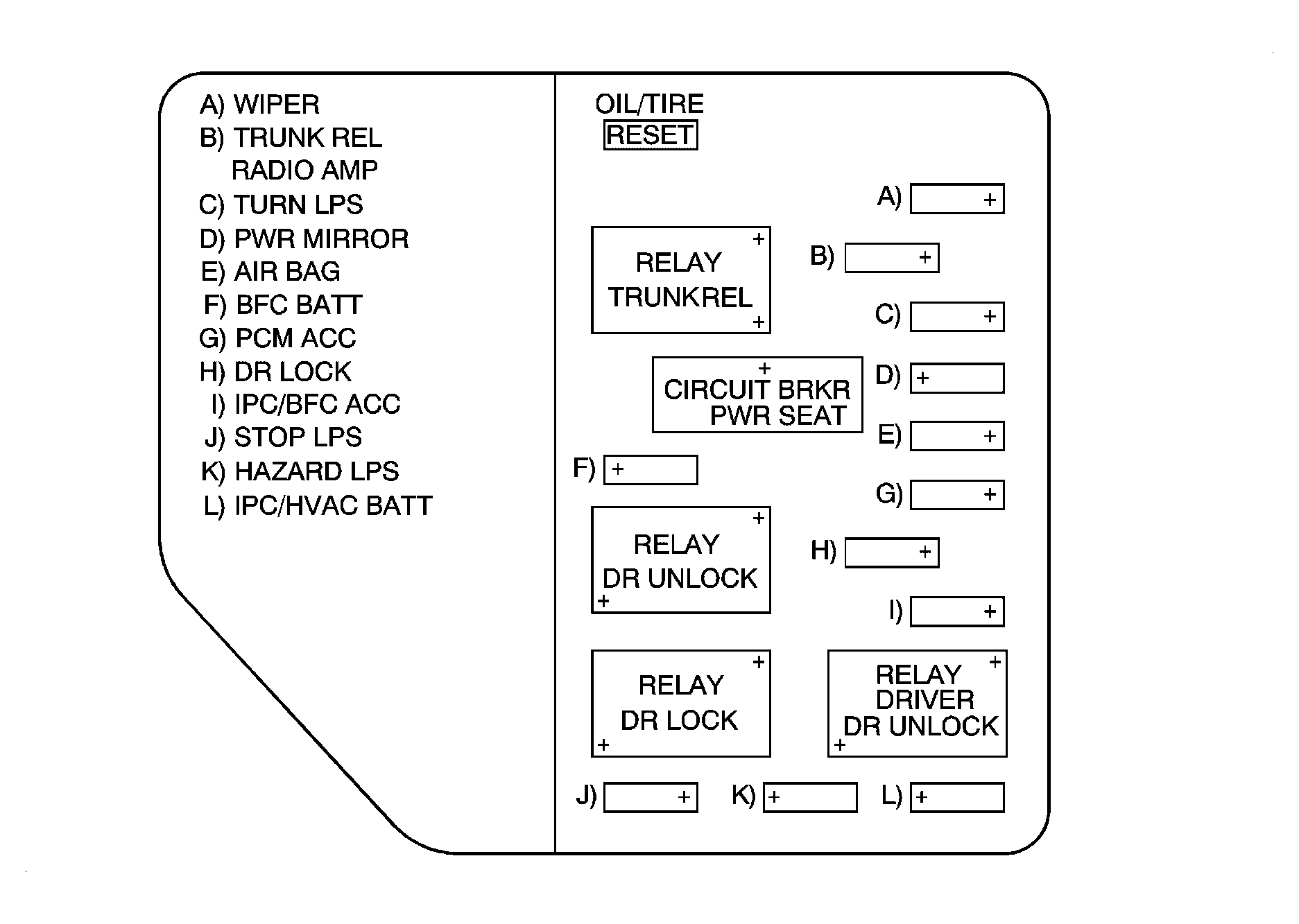

Fuse Block - Left I/P Label
WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.
Fuse Block - Left I/P Table
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| AIR BAG Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| BFC BATT Fuse | 10A | Body Control Module (BCM) |
| DR LOCK Fuse | 15A | Door Lock Actuators/Relays |
| HAZARD LPS Fuse | 15A | Hazard Lamps/Switch |
| IPC/BFC ACC Fuse | 10A | Instrument Panel Cluster (IPC) Body Control Module (BCM) |
| IPC/HVAC BATT Fuse | 10A | Instrument Panel Cluster (IPC) HVAC Control Assembly Data Link Connector (DLC) |
| PCM ACC Fuse | 10A | Powertrain Control Module (PCM) |
| PWR MIRROR Fuse | 10A | Outside Rearview Mirrors/Outside Rearview Mirror Switch |
| CIRCUIT BRKR PWR SEAT | 25A | Power Seat |
| STOP LPS Fuse | 20A | Stop Lamps/Stop Lamp Switch |
| TRUNK REL/RADIO AMP Fuse | 20A | Rear Compartment Lid Release Relay; Audio Amplifier |
| TURN LPS Fuse | 10A | Turn Lamps/Hazard Switch |
| WIPER Fuse | 25A | Windshield Wiper Motor Assembly; Turn Signal Multifunction Switch |
