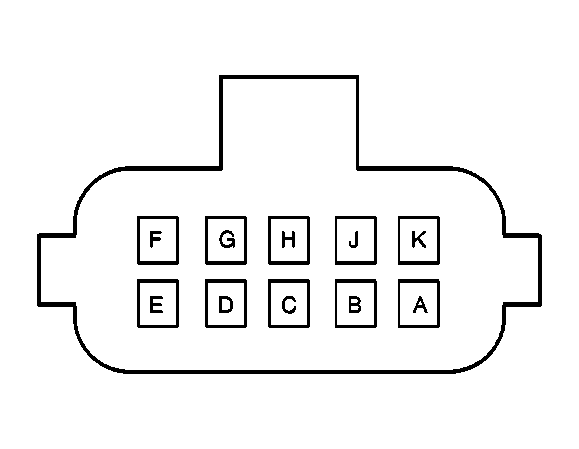

Cruise Control Module (CCM) Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12177081 10-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	GRY	397	Cruise Control ON Switch Signal
B	DK BLU	84	Cruise Control SET/COAST Switch Signal
C	GRY/BLK	87	Cruise Control RESUME/ACCEL Switch Signal
D	PPL	420	TCC Brake Switch Signal
E	BLK	1350	Ground
F	BRN	341	Ignition 3 Voltage
G	LT BLU	20	Stop Lamp Switch Signal
H	DK GRN	83	Cruise Control Inhibit Signal
J	LT BLU/BLK	396	Cruise Control Engaged Signal
K	DK GRN/ WHT	817	Vehicle Speed Signal
