Electronic Brake Control Module: Locations

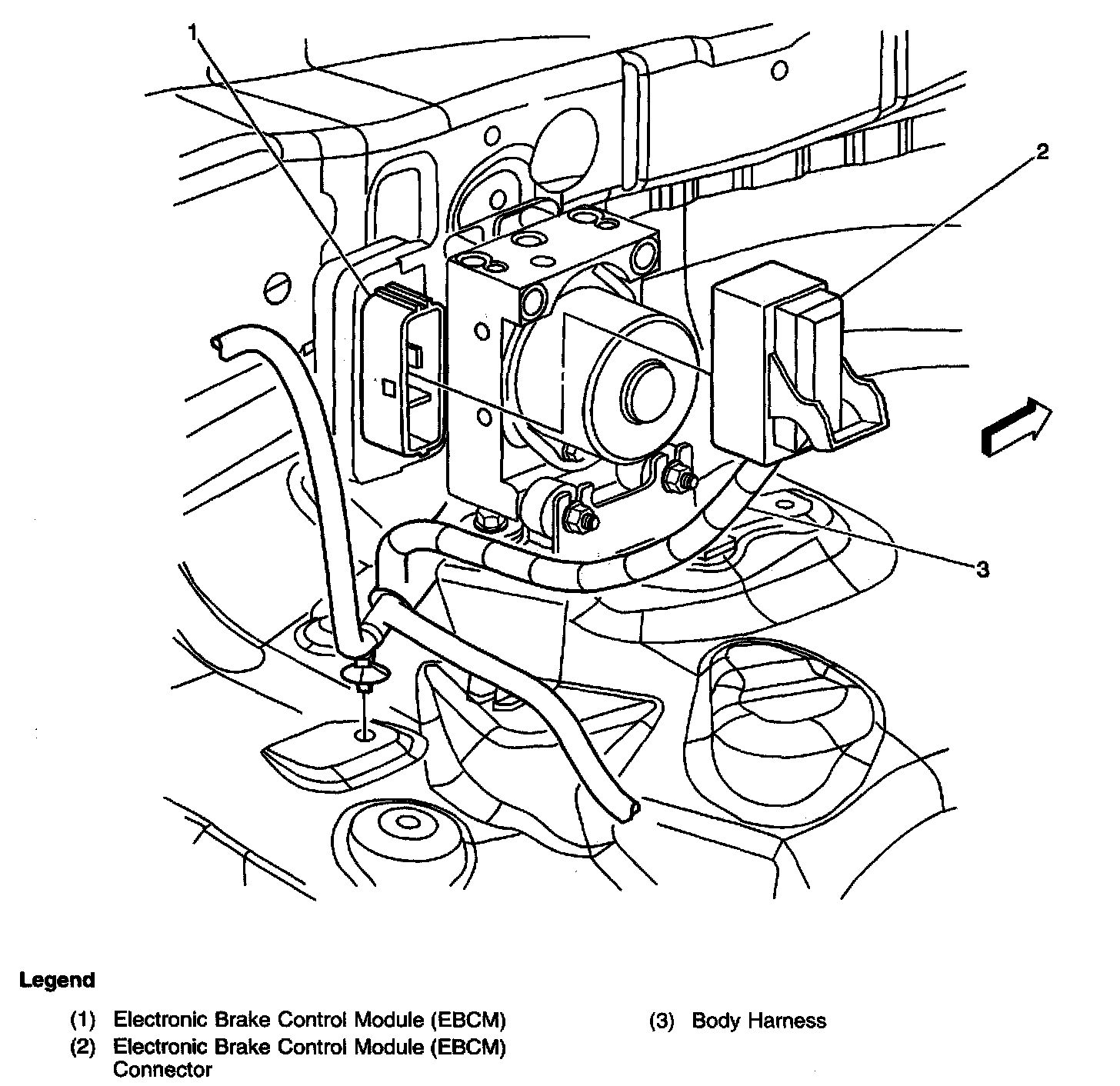

Electronic Brake Control Module (EBCM)






Note: In left rear of the engine compartment to the left of the master cylinder.
