Differential Assembly
Rear Axle Disassembled Views

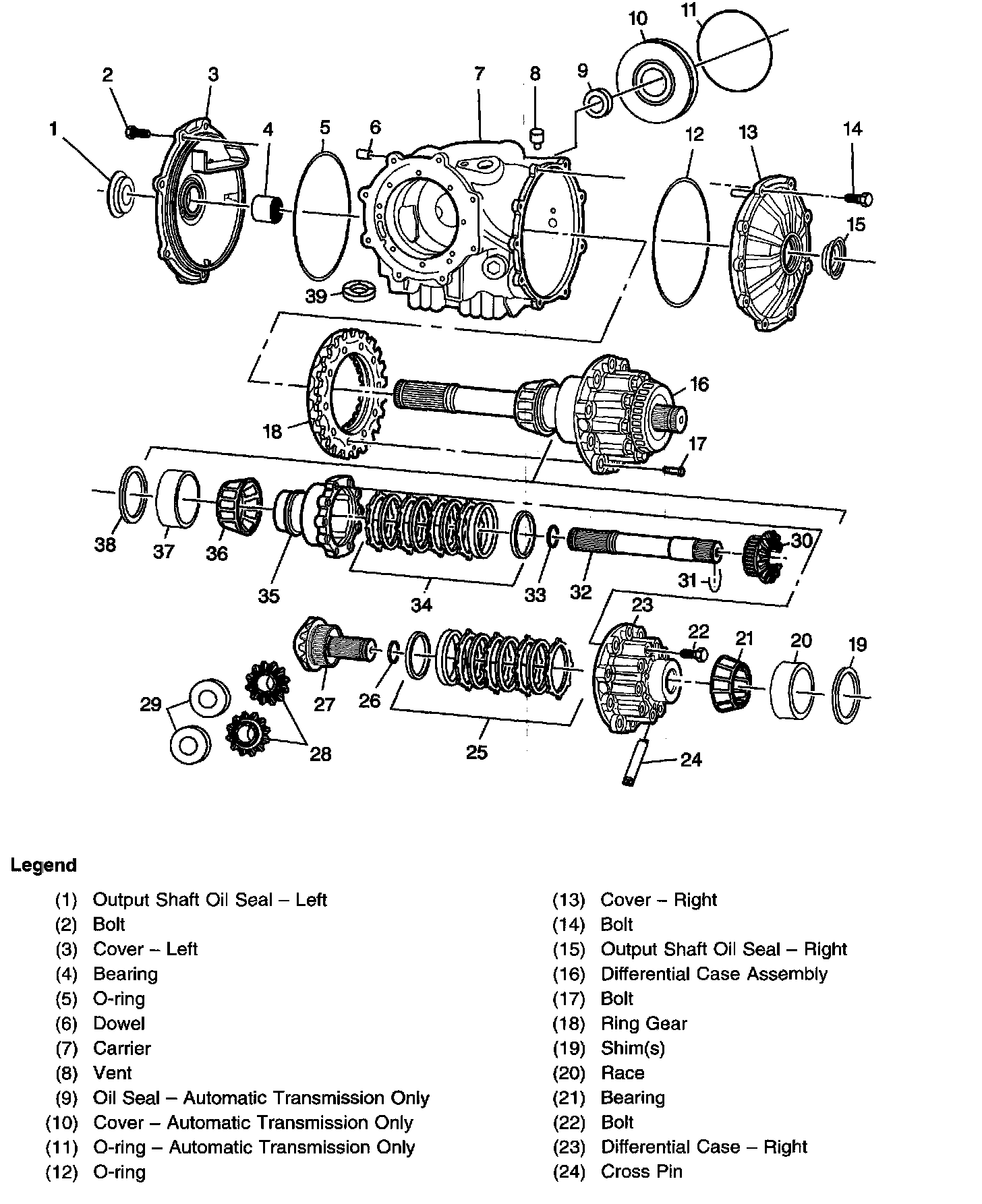

Differential Carrier
and Case Assemble

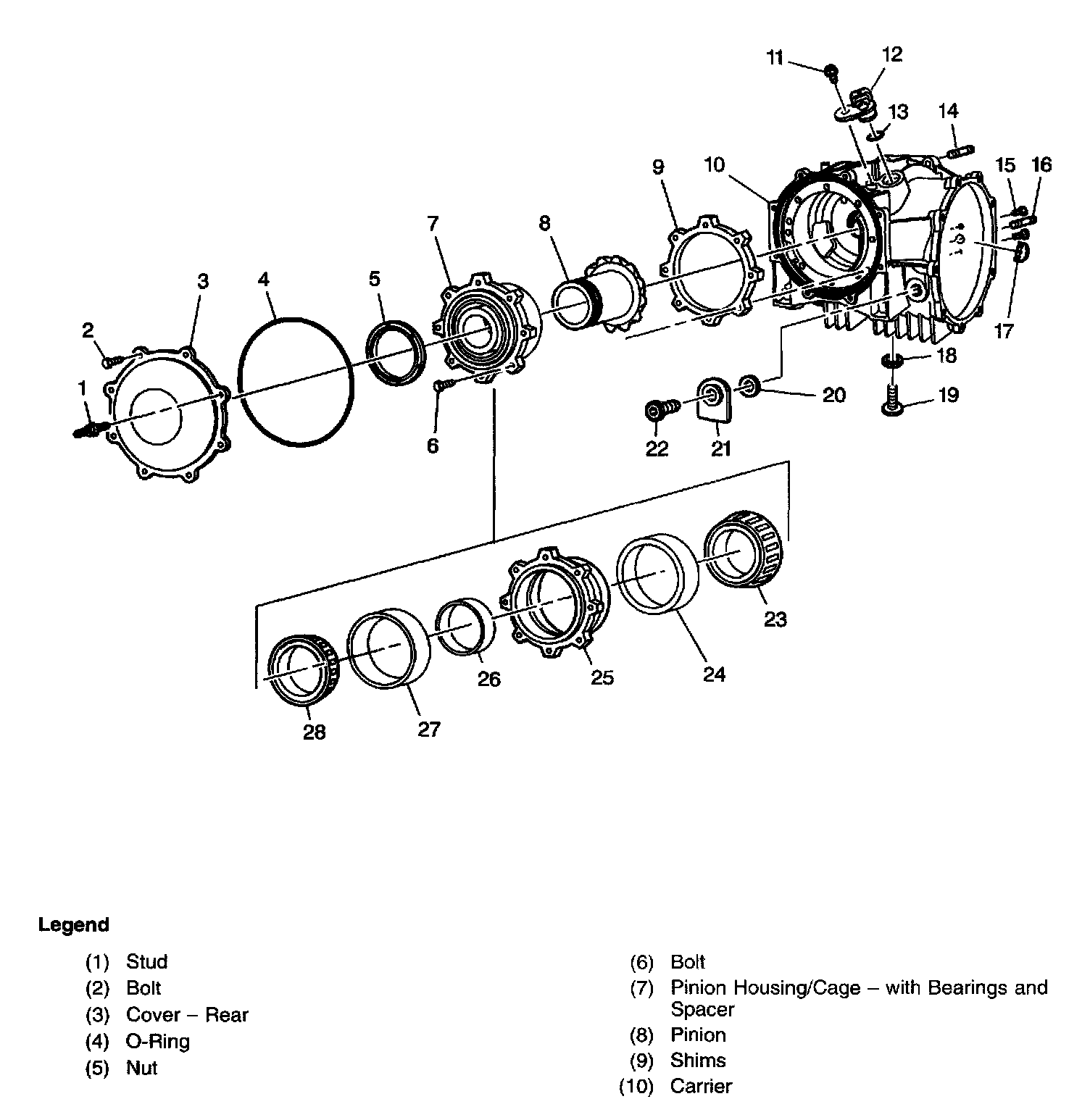

Drive Pinion Assembly
