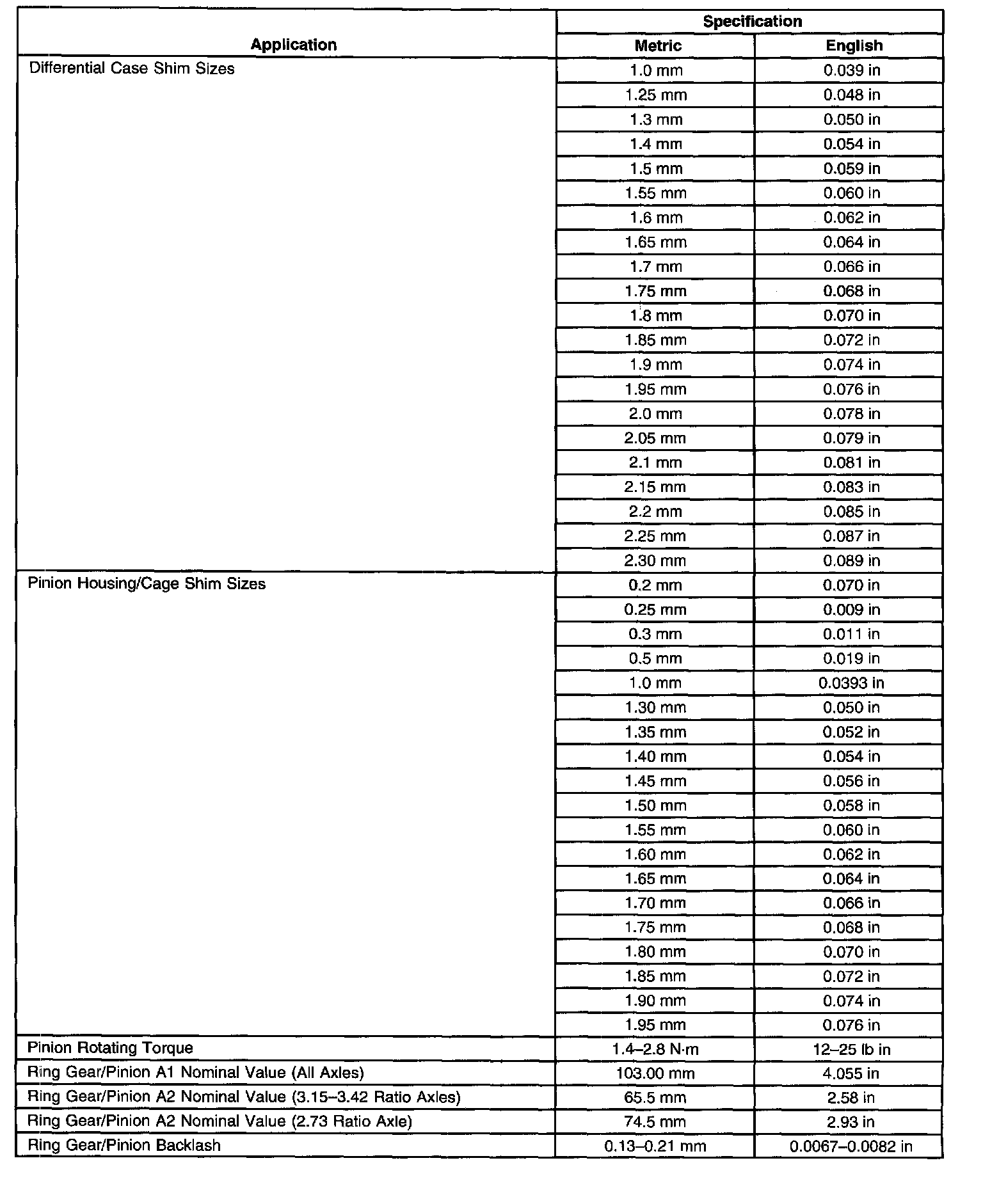

Rear Axle Specifications
Rear Axle Specifications
Rear Axle Specifications
Rear Axle Usage
Available Axle Ratios
