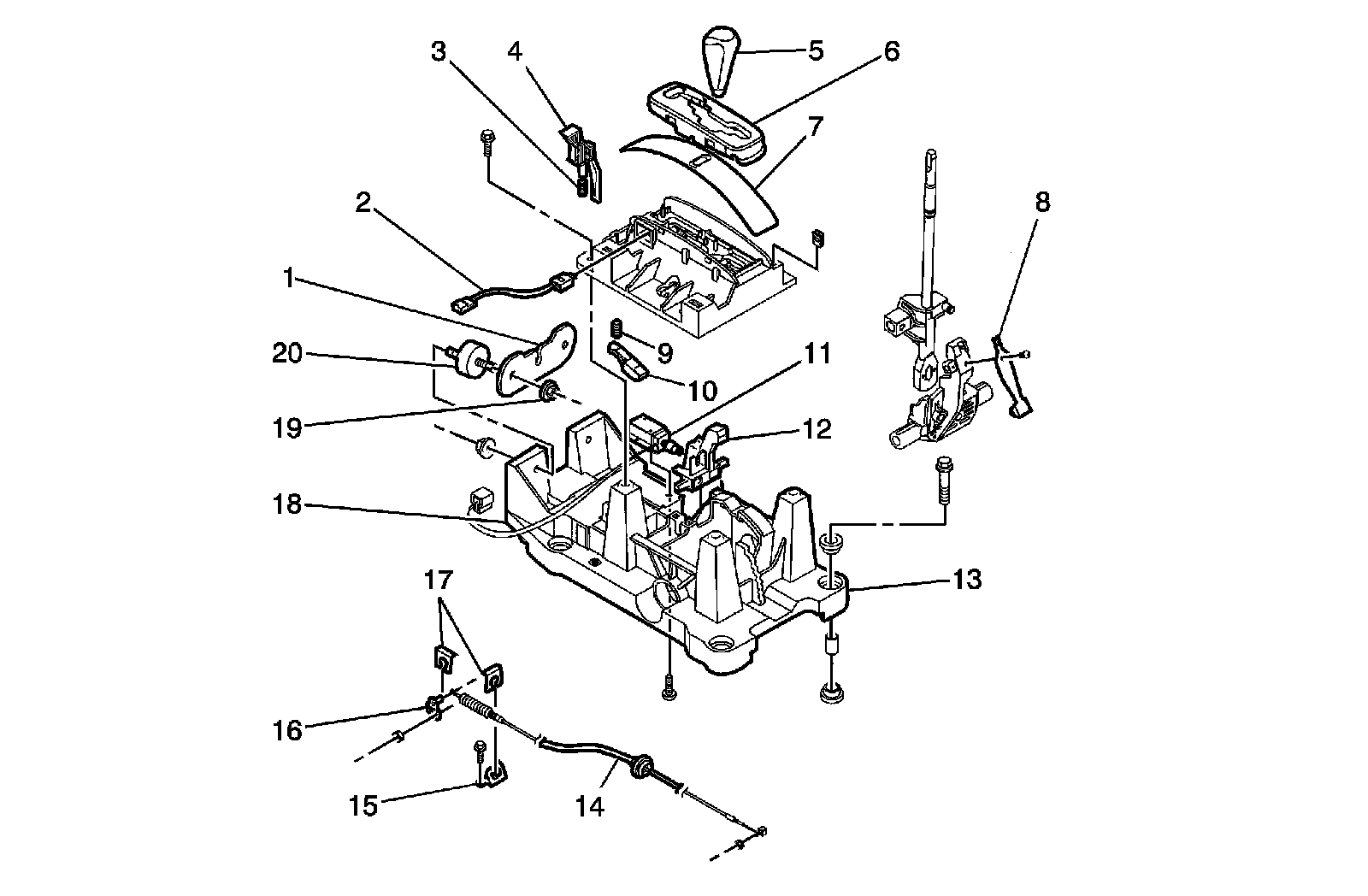

Shift Select Control

Shift Select Control

Shift Select Control




1 - Fastener Plate
2 - Park Position Switch
3 - Spring
4 - BTSI Button
5 - Gear Shift Knob
6 - Cover
7 - Step Gate Slider
8 - Positioning Spring
9 - Spring
10 - Safety Stopper
11 - A/T Shift Lock Solenoid
12 - A/T Shift Lock Solenoid Lever
13 - Base Plate
14 - Select Cable
15 - Cable Fastener
16 - T/A Lever
17 - E-Ring
18 - Base Plate Front
19 - Nut
20 - Selector Control Isolator
