Power Seat Systems Component Views

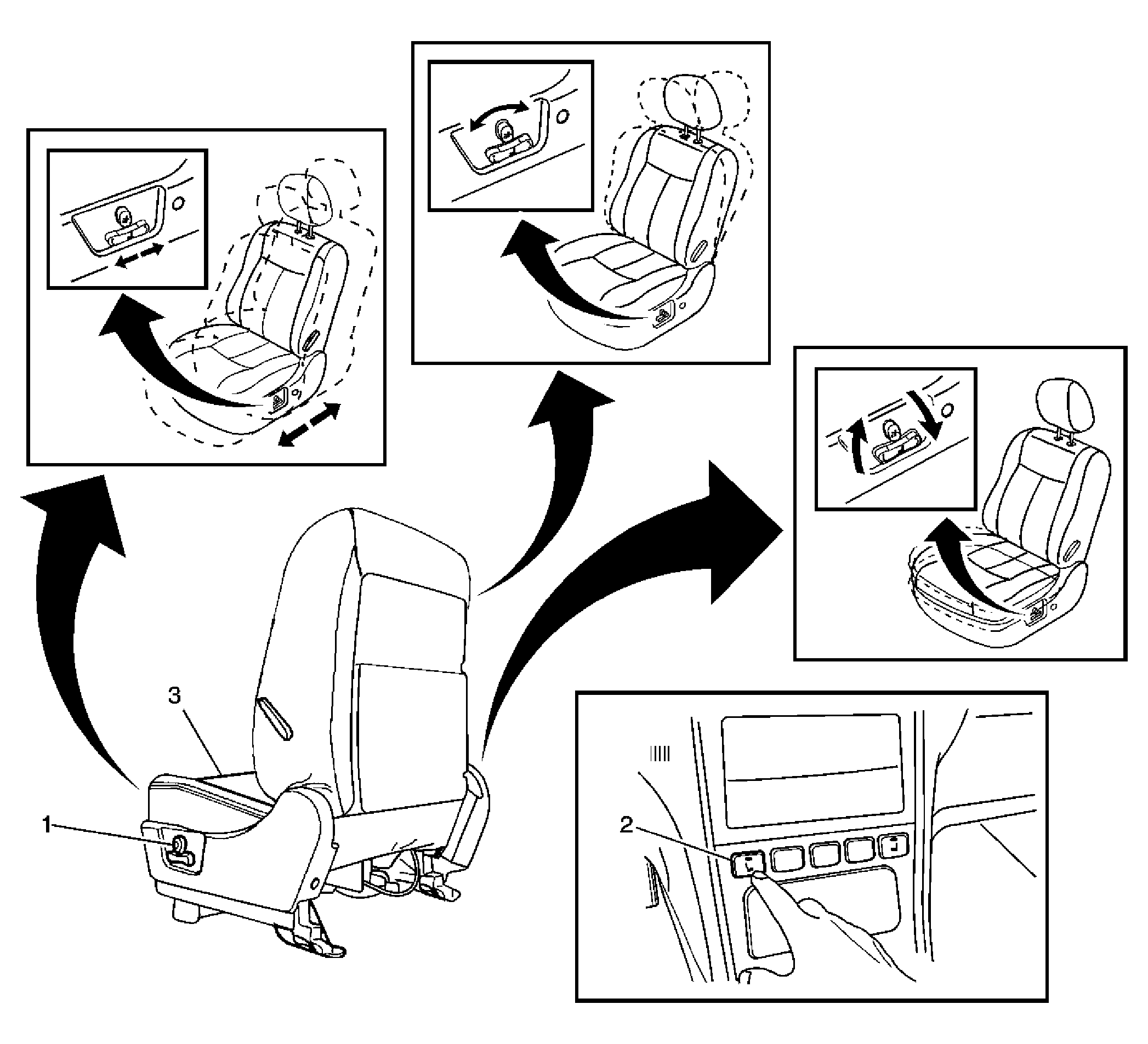

Fig 1: Identifying Power/Heated Seat Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Power Seat Switch (Left Side Shown, Right Side Similar)
2
Heated Seat Switch
3
Heated Seat Cushion Element (Left Side Shown, Right Side Similar)
