Home >> Chevrolet >> 2004 >> Express 2500 2WD V8-4.8L VIN V >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Front of Engine
April 5, 2026: LEMON Manuals is launched! Read the announcement.

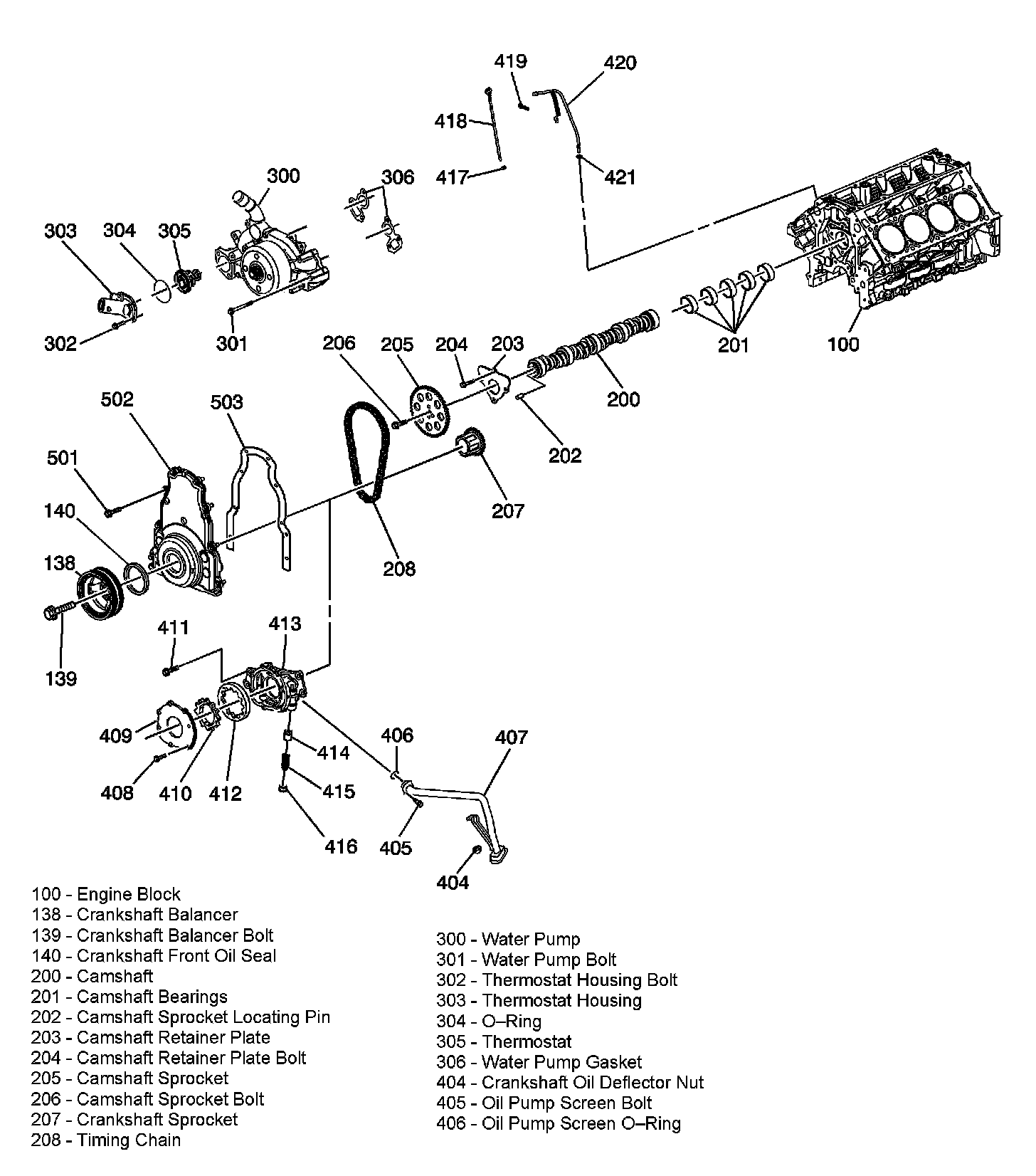

Front of Engine
