Cruise Control Module

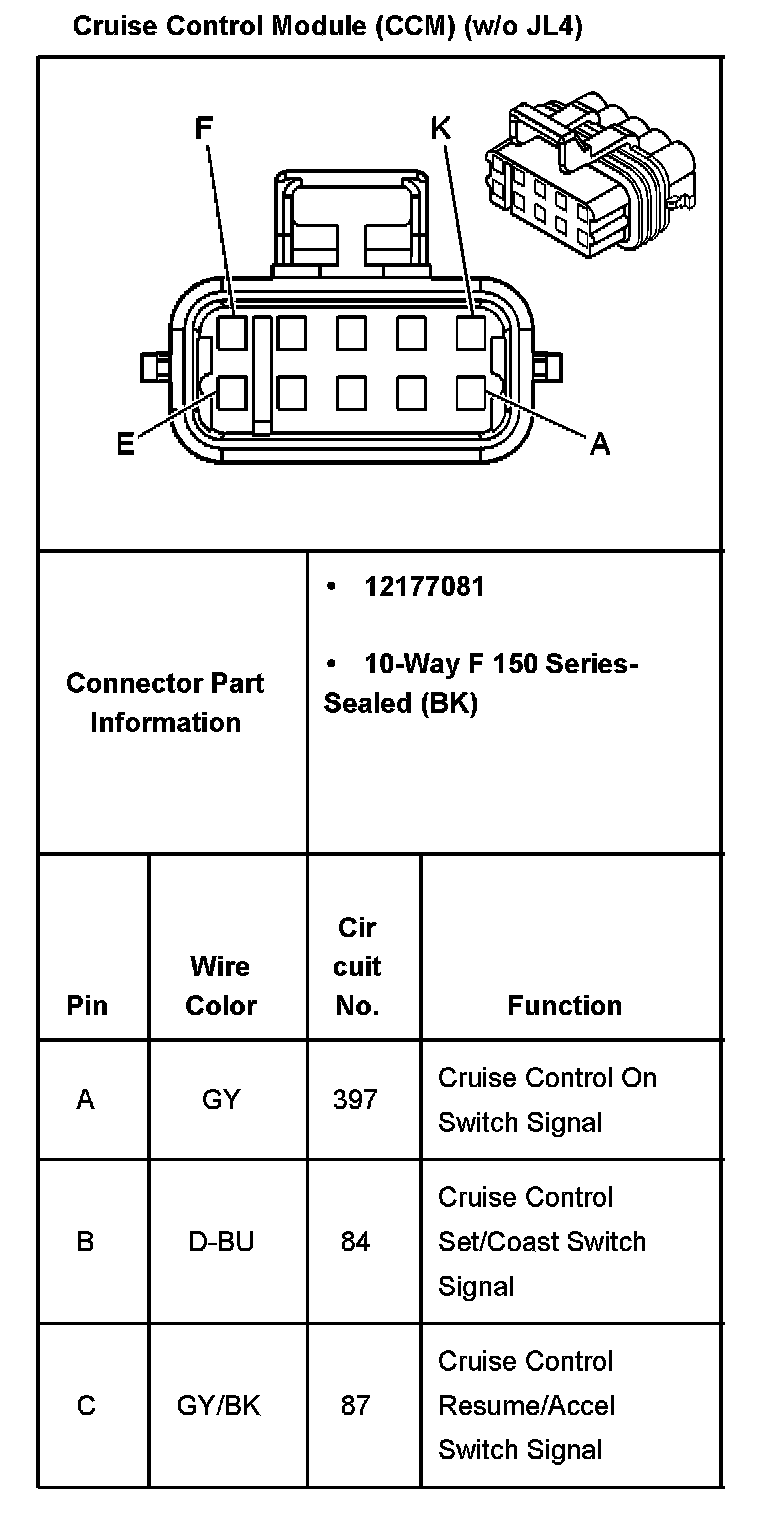

Cruise Control Module (CCM) (Without RPO Code JL4) Part 1:

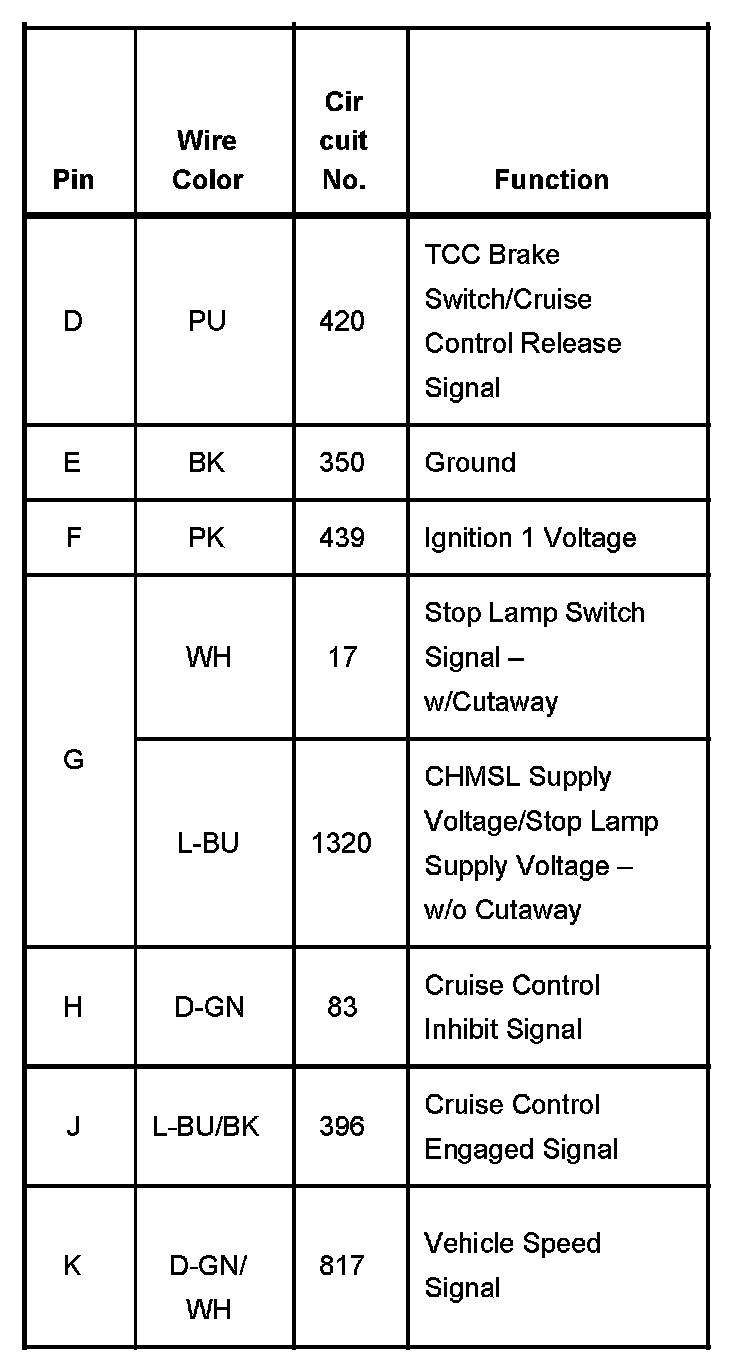

Cruise Control Module (CCM) (Without RPO Code JL4) Part 2:
