Ignition Control Module

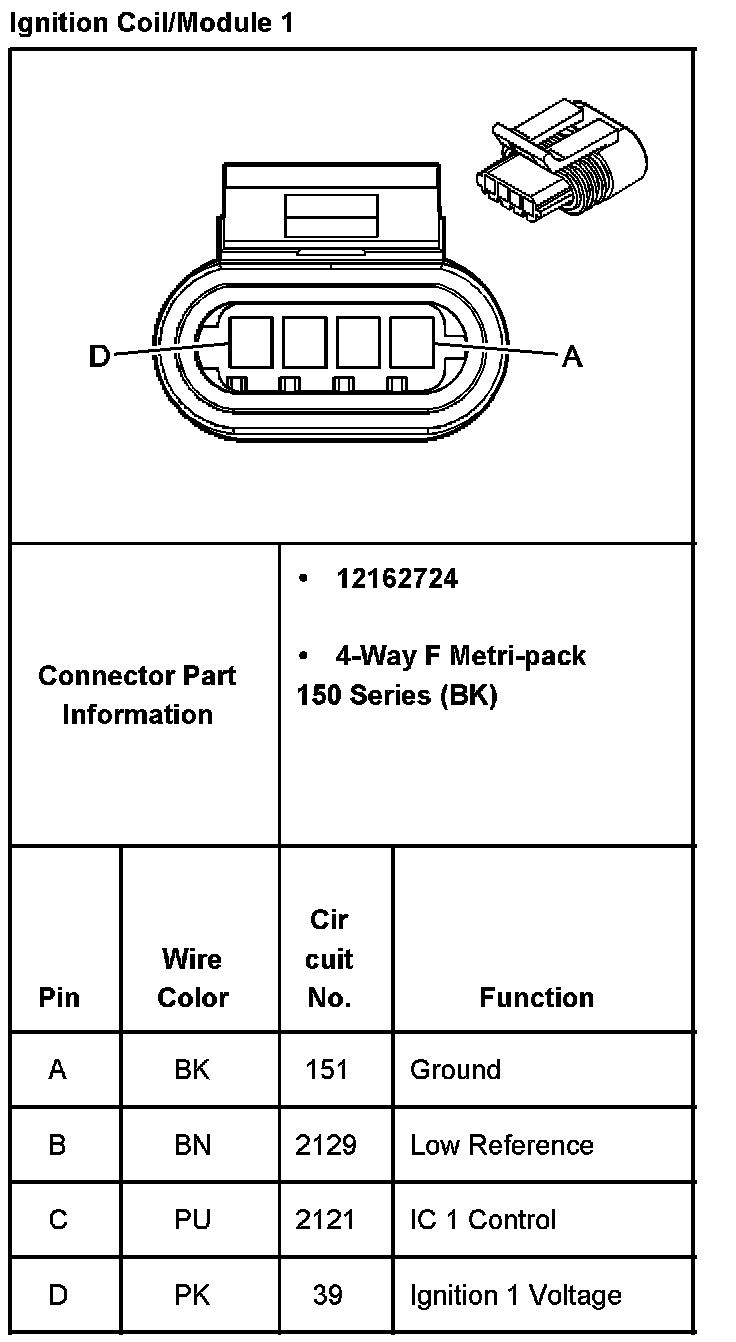

Ignition Coil/Module 1:

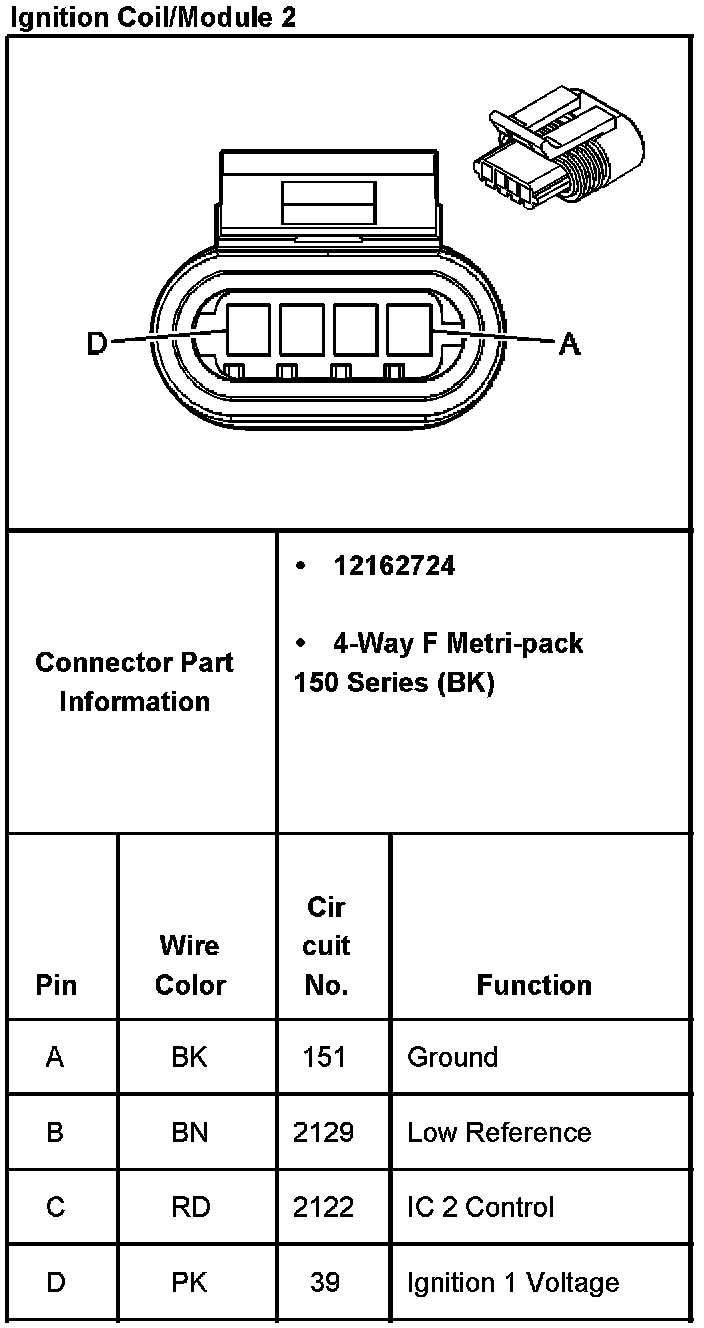

Ignition Coil/Module 2:

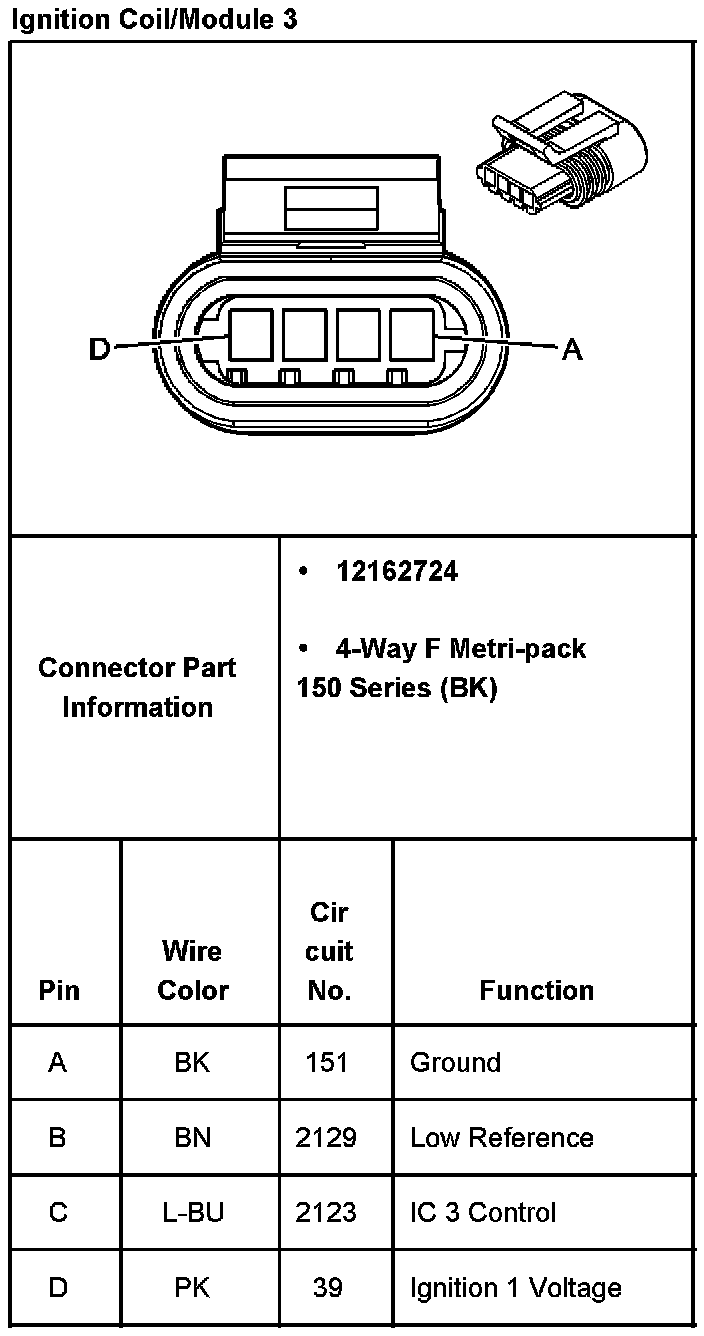

Ignition Coil/Module 3:




Ignition Coil/Module 4:




Ignition Coil/Module 5:

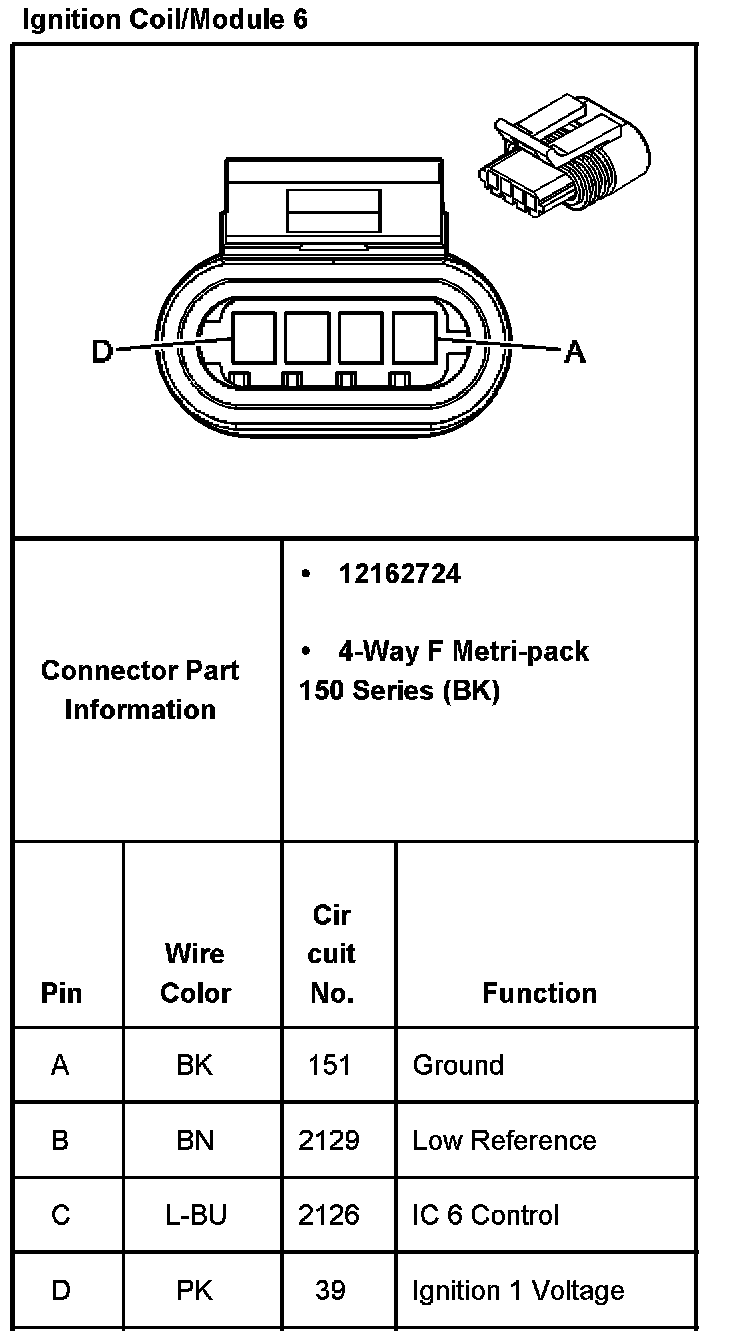

Ignition Coil/Module 6:

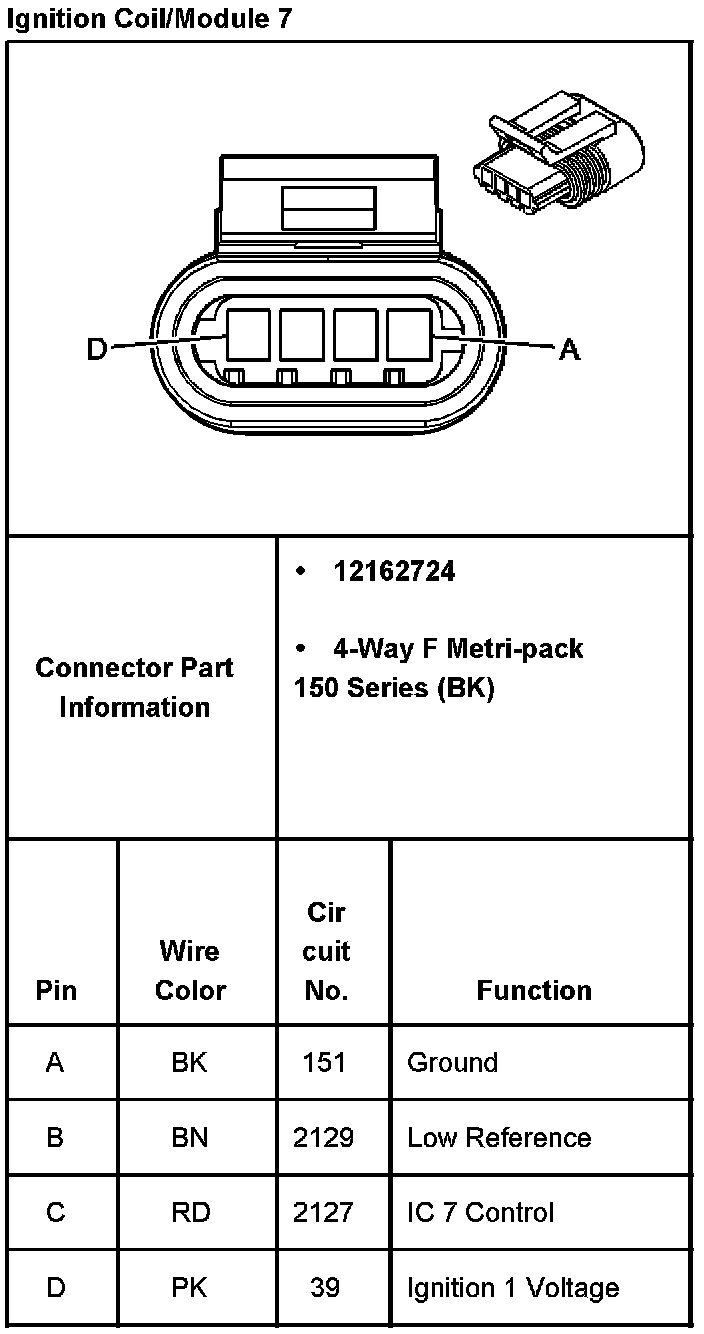

Ignition Coil/Module 7:

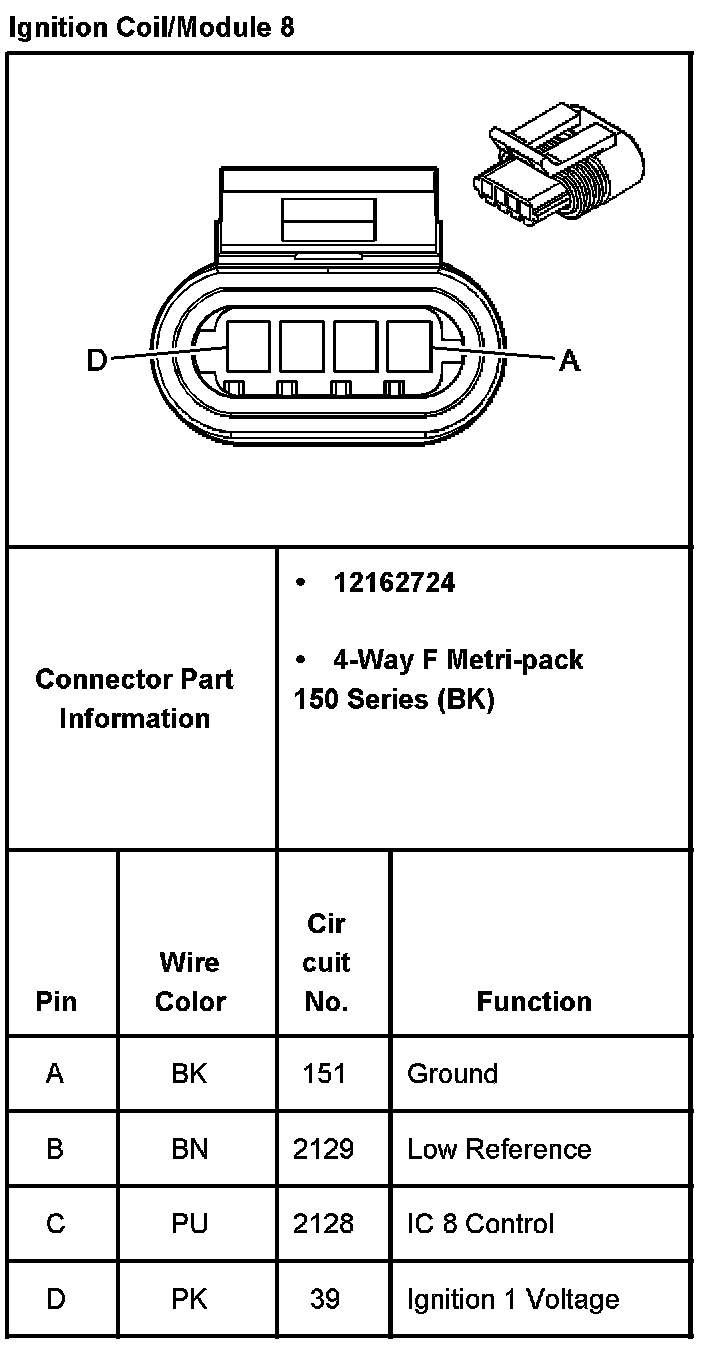

Ignition Coil/Module 8:
