Body Control Module: Service and Repair

BODY CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE

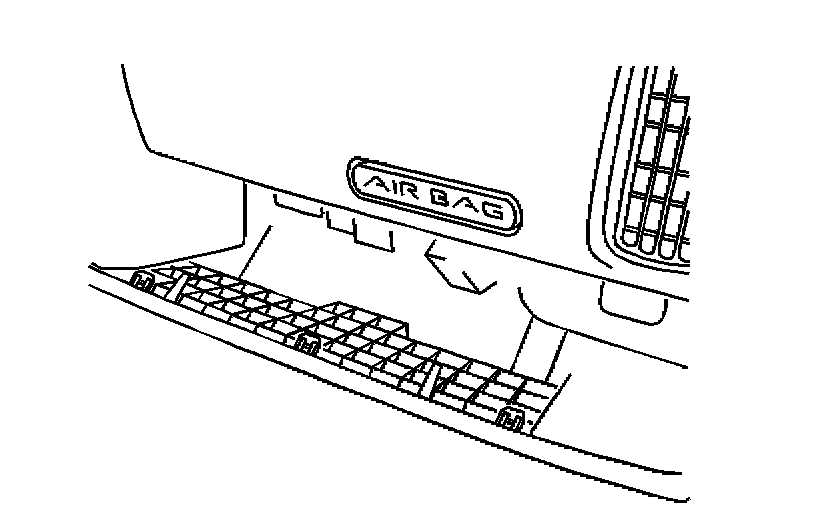

1. Remove the right side knee bolster trim panel.

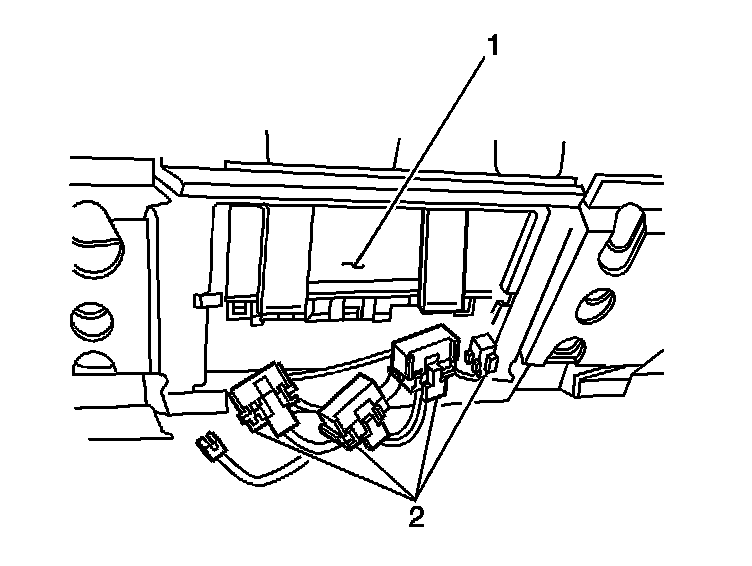

2. Disconnect the electrical connectors (2) from the Body Control Module (BCM) (1).

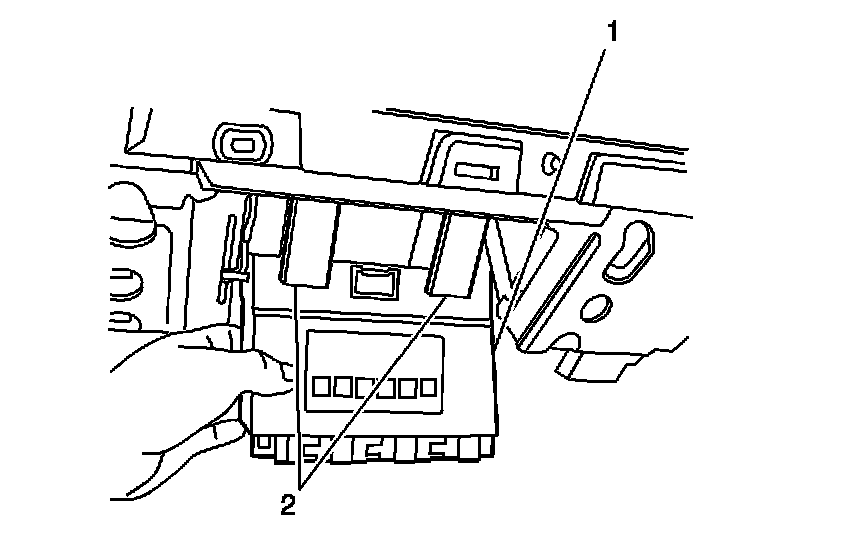

3. Release the tabs (2) retaining the BCM (1) to the bracket.
4. Remove the BCM (1) from the vehicle.

INSTALLATION PROCEDURE

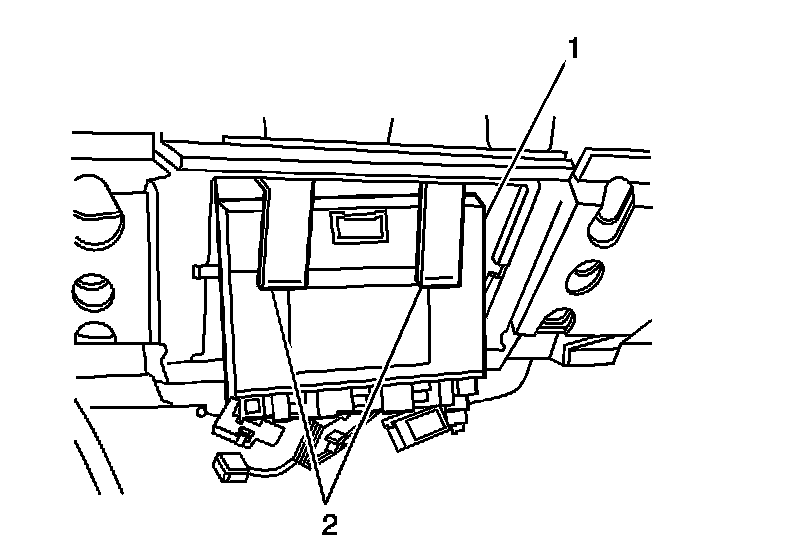

1. Install the BCM (1) into the bracket. Ensure the BCM (1) is engaged in the bracket, under the retaining tabs (2).

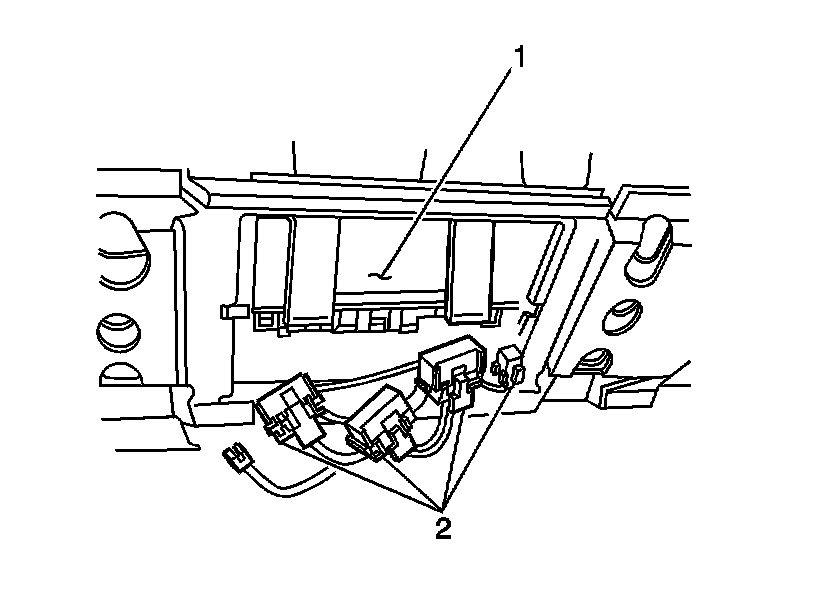

2. Connect the electrical connectors (2) to the BCM (1).

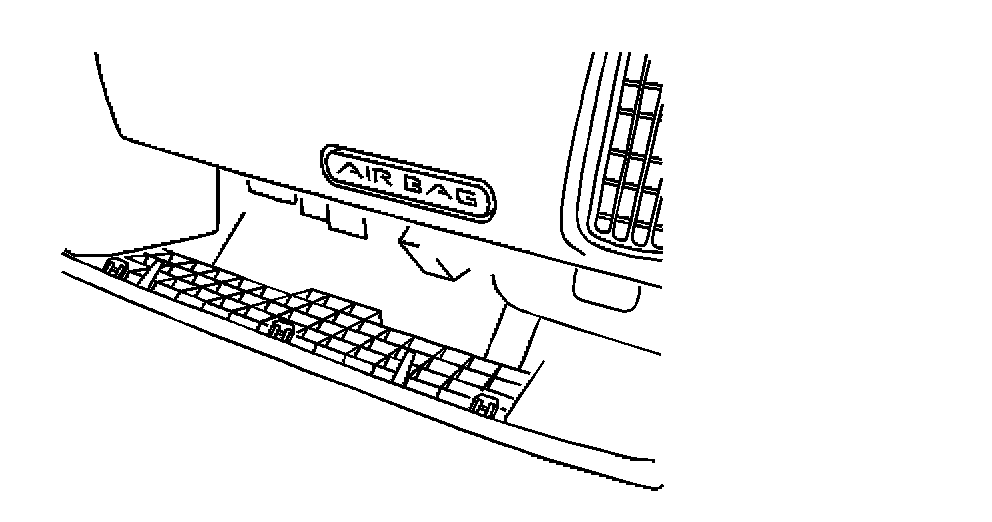

3. Install the right side knee bolster trim panel.
4. If the BCM has been replaced the module will need to be programed. Program the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration. Programming and Relearning
