Electronic Throttle Control Module: Diagrams

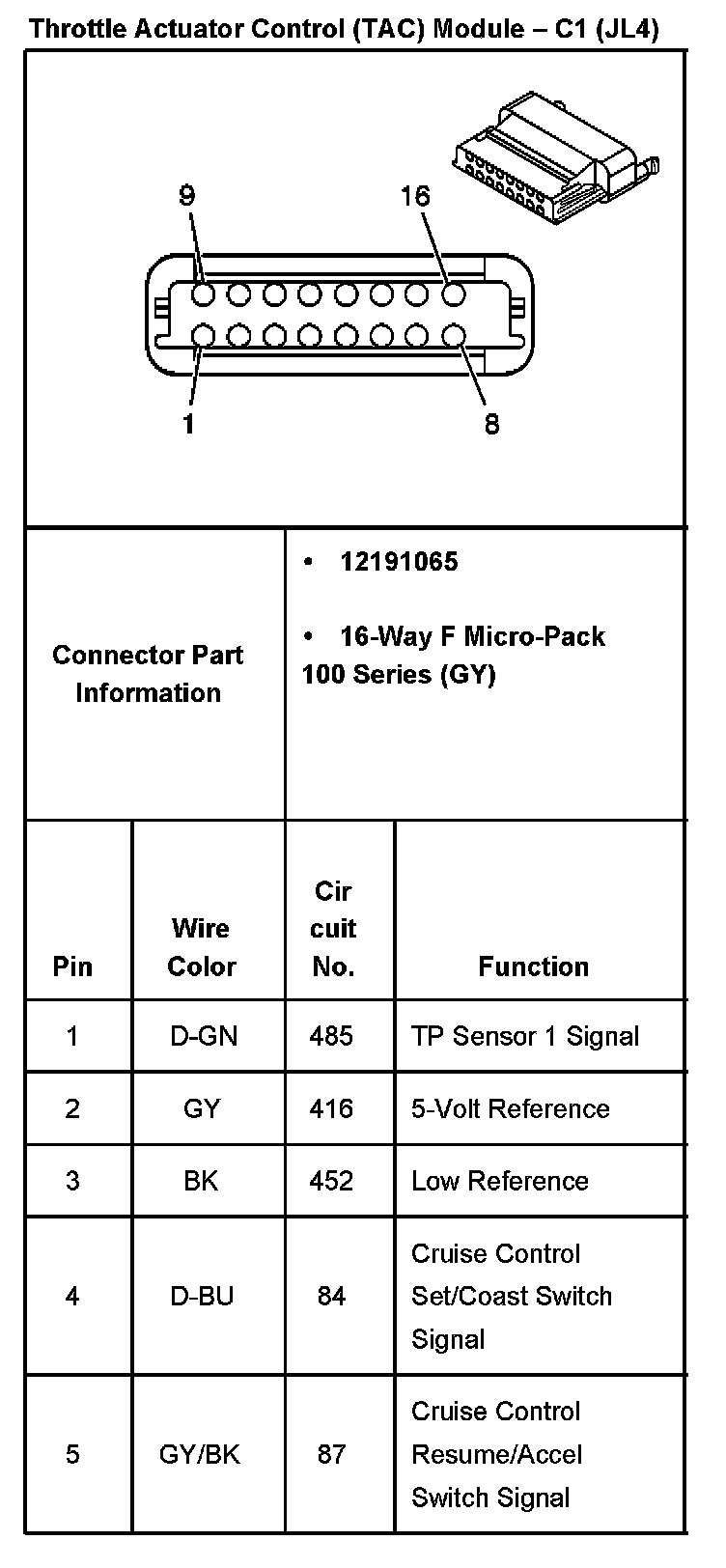

Throttle Actuator Control (TAC) Module - C1 (With RPO Code JL4) Part 1:

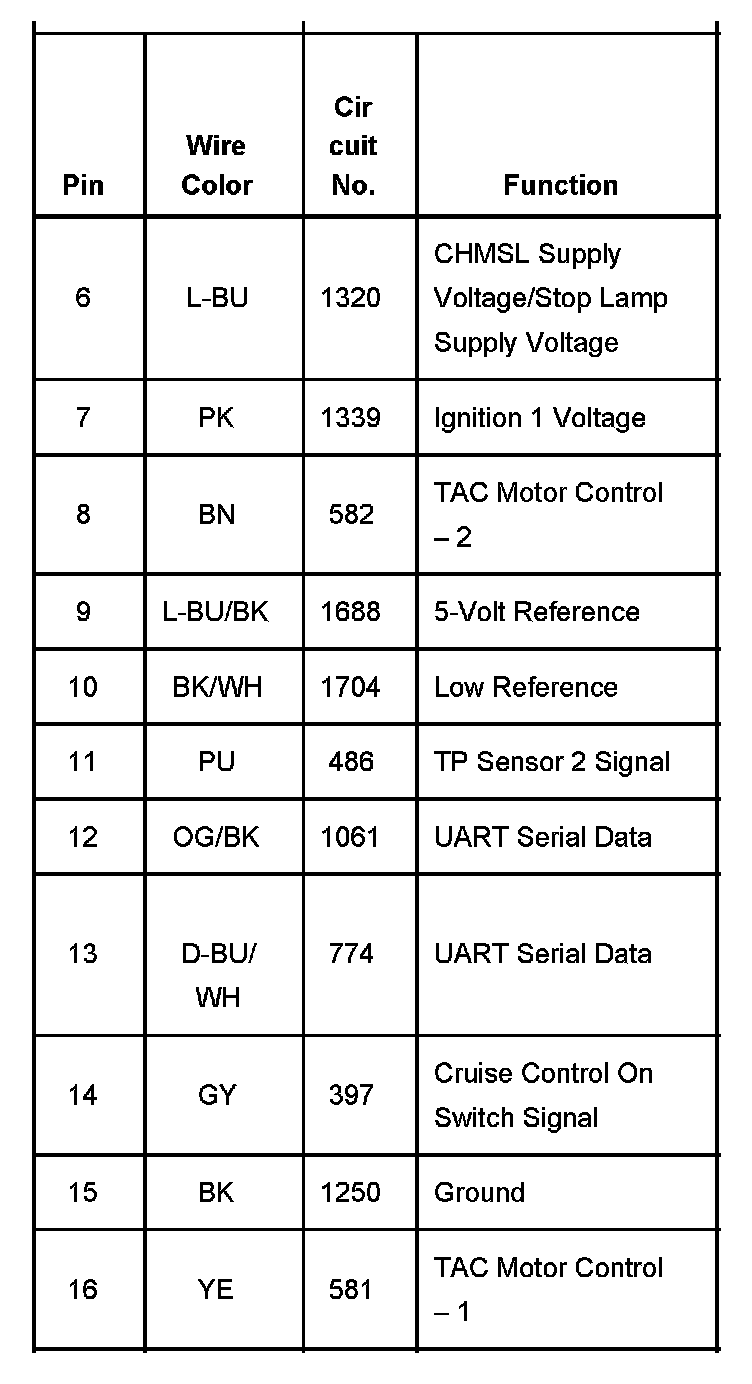

Throttle Actuator Control (TAC) Module - C1 (With RPO Code JL4) Part 2:
