Amplifier Replacement

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

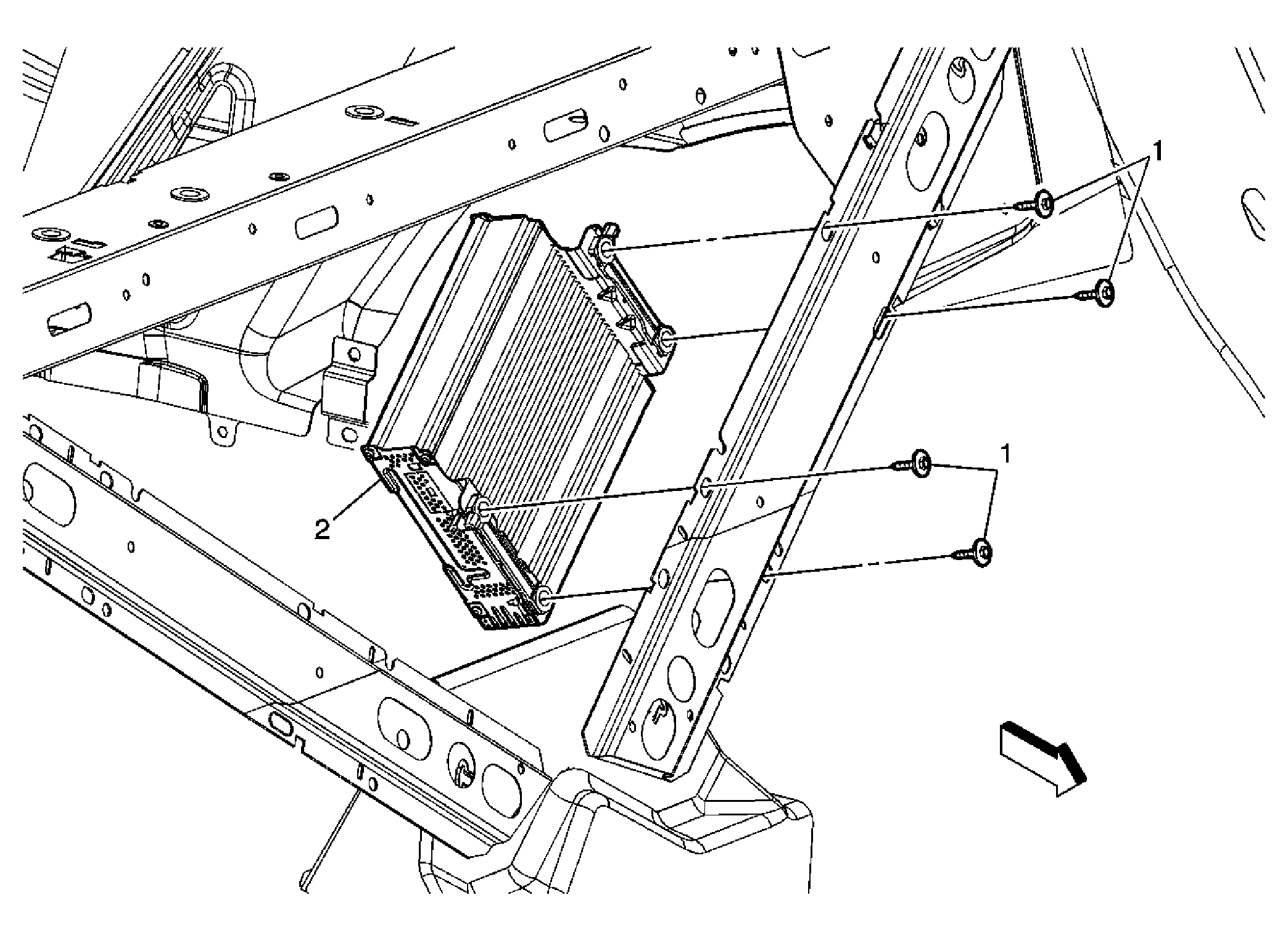

Fig 1: Identifying Amplifier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat back. Refer to Seat Back Replacement - Rear .
1	Radio Speaker Amplifier Assembly Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 3 N.m (25 lb in)
2	Radio Speaker Amplifier Assembly Tip: Disconnect the electrical connectors. Refer to Control Module References for programming and setup information.
