Inflatable Restraint Instrument Panel Module Indicator Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

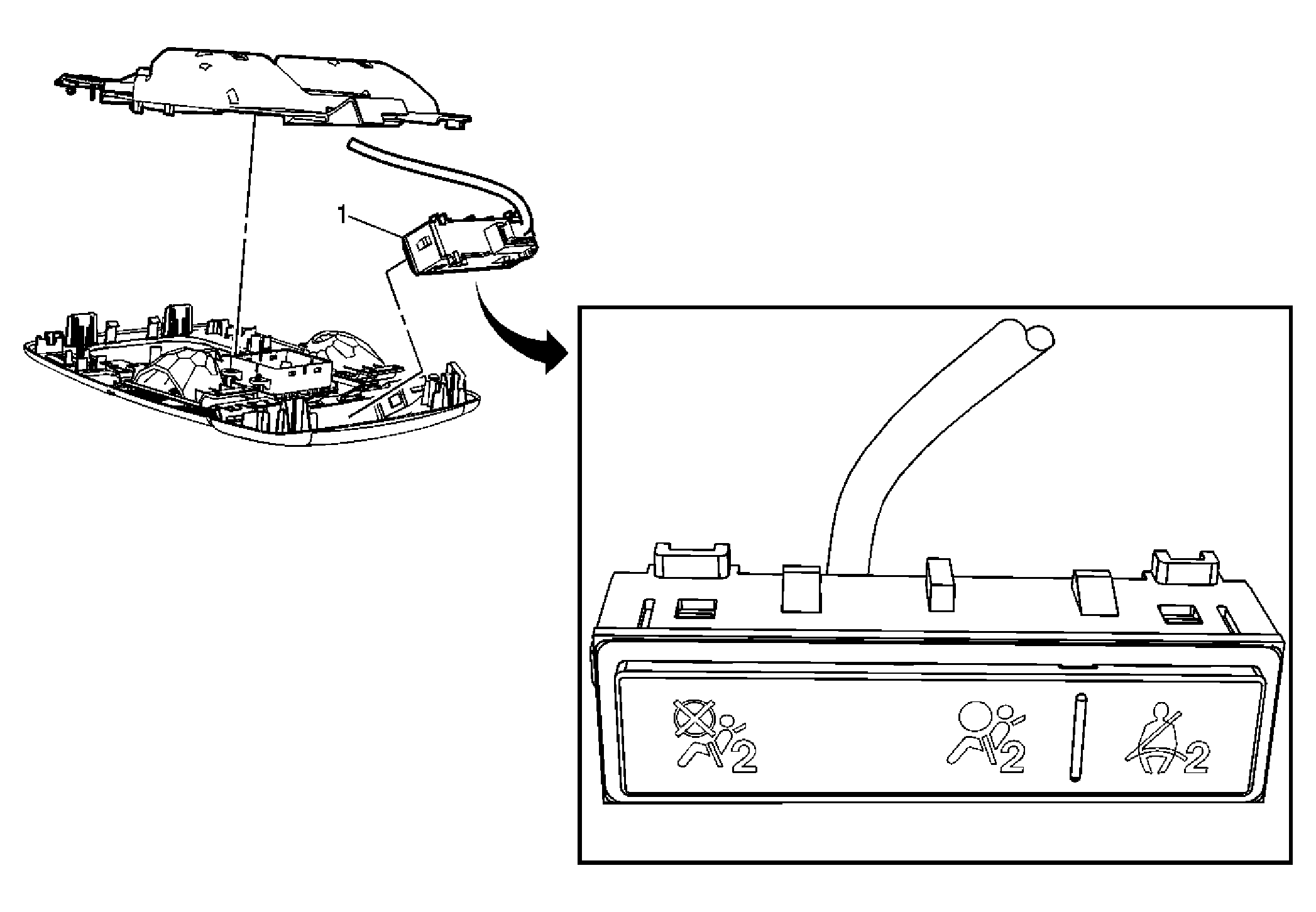

Fig 1: Locating Inflatable Restraint IP Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the overhead console. Refer to Roof Console Replacement . Remove the overhead console map light socket assembly to access the indicator.
1	Inflatable Restraint Instrument Panel Module Indicator Assembly Tip: Release the tabs to remove the module from the overhead console.

Callout

Component Name

Preliminary Procedures

Remove the overhead console. Refer to Roof Console Replacement .
Remove the overhead console map light socket assembly to access the indicator.

Inflatable Restraint Instrument Panel Module Indicator Assembly
Tip: Release the tabs to remove the module from the overhead console.
