Installation Procedure

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

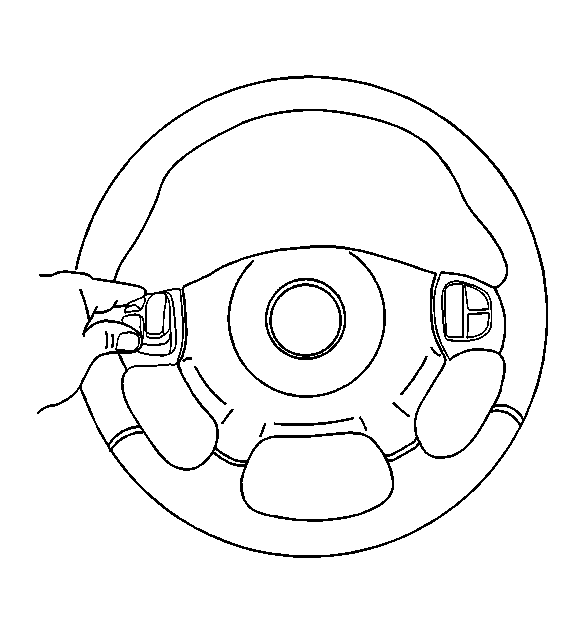

Fig 1: Identifying Steering Wheel Control Switch

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector.
Align the switch to the switch opening in the steering wheel.
Snap the switch into the steering wheel.

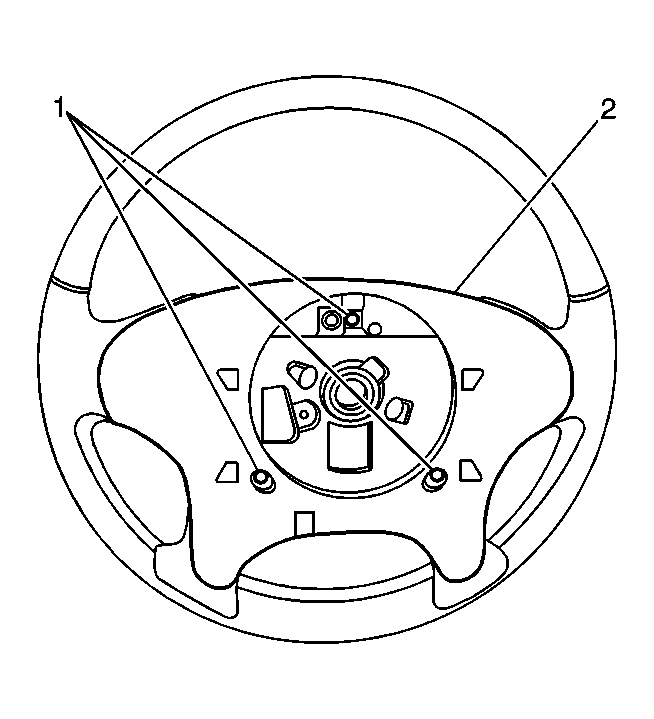

Fig 2: Locating Steering Wheel Bezel & Retaining Screws

Courtesy of GENERAL MOTORS CORP.

Install the steering wheel bezel (2).

NOTE: Refer to Fastener Notice .

Install the retaining screws (1) to the steering wheel bezel.
Tighten: Tighten screws to 3 N.m (27 lb in).
Install the steering wheel. Refer to Steering Wheel Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling .
