Brake Switch (Cruise Control): Locations

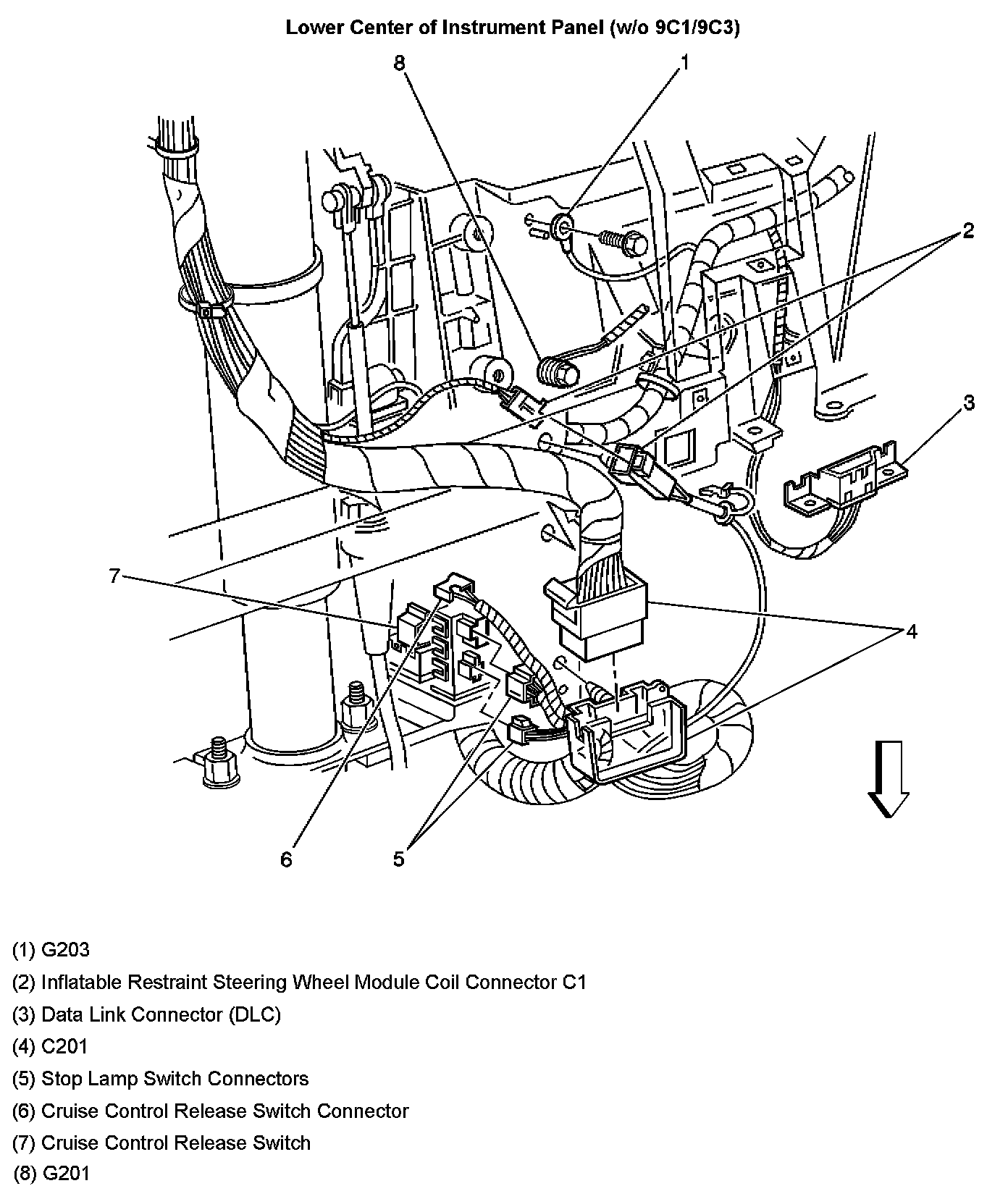

Lower Center Of Instrument Panel (Without RPO Code 9C1/9C3):



Lower Center Of Instrument Panel (Without RPO Code 9C1/9C3):
