Cruise Control Module: Locations

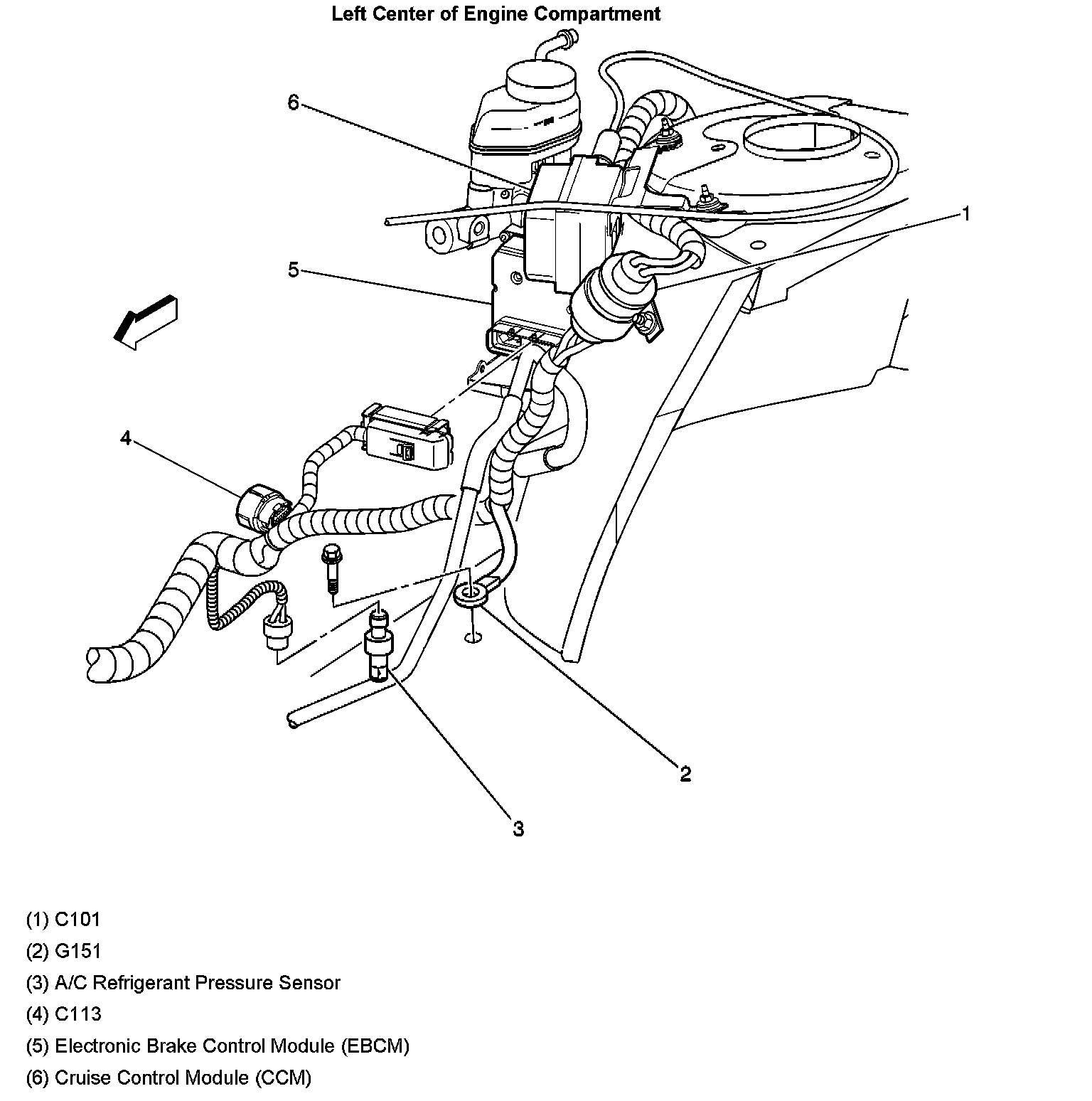

Left Center Of Engine Compartment:



Left Front Of Engine Compartment:

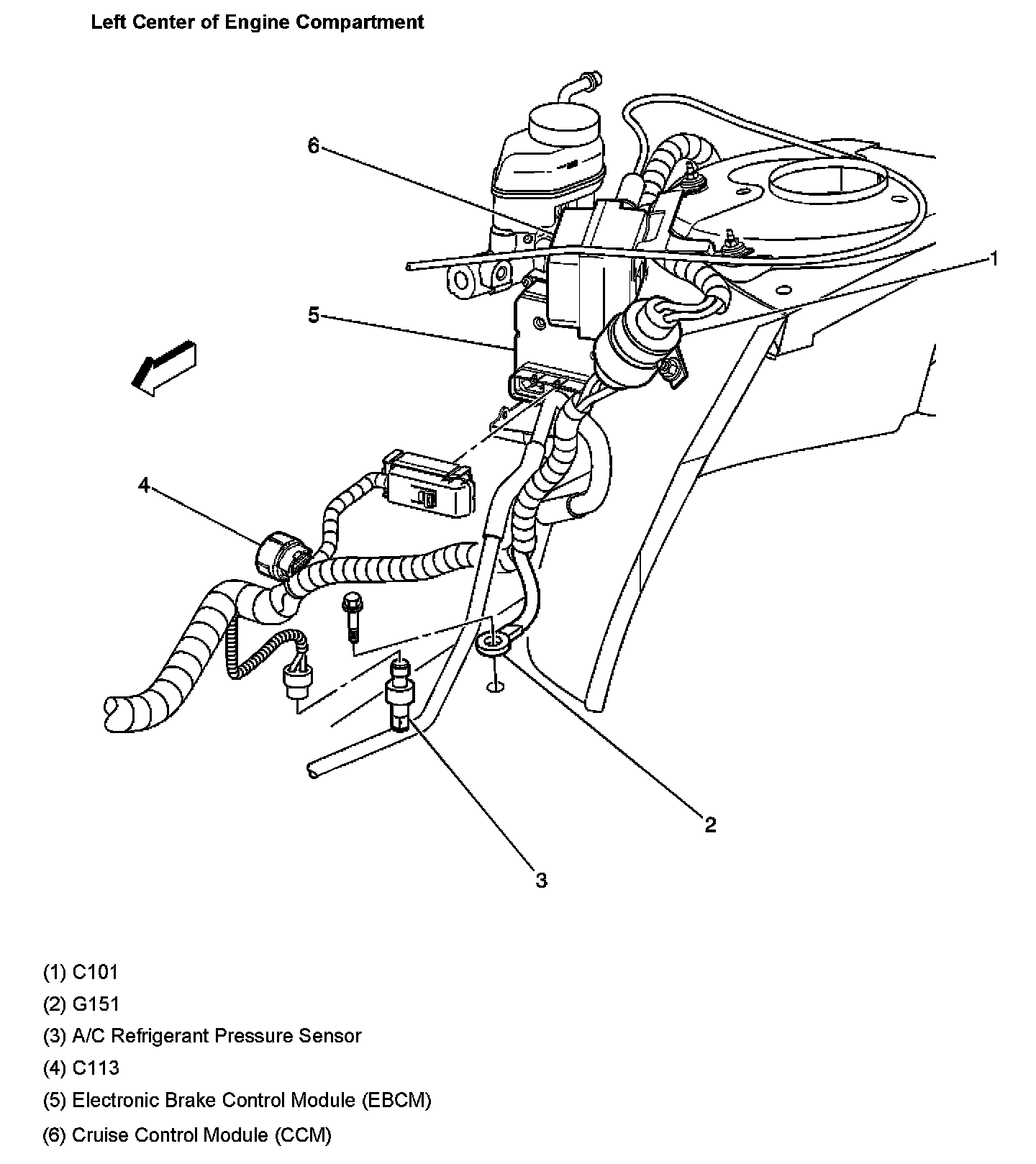

Left Center Of Engine Compartment:
