Accessory Delay Module

Retained Accessory Power (RAP) Diagram 1:

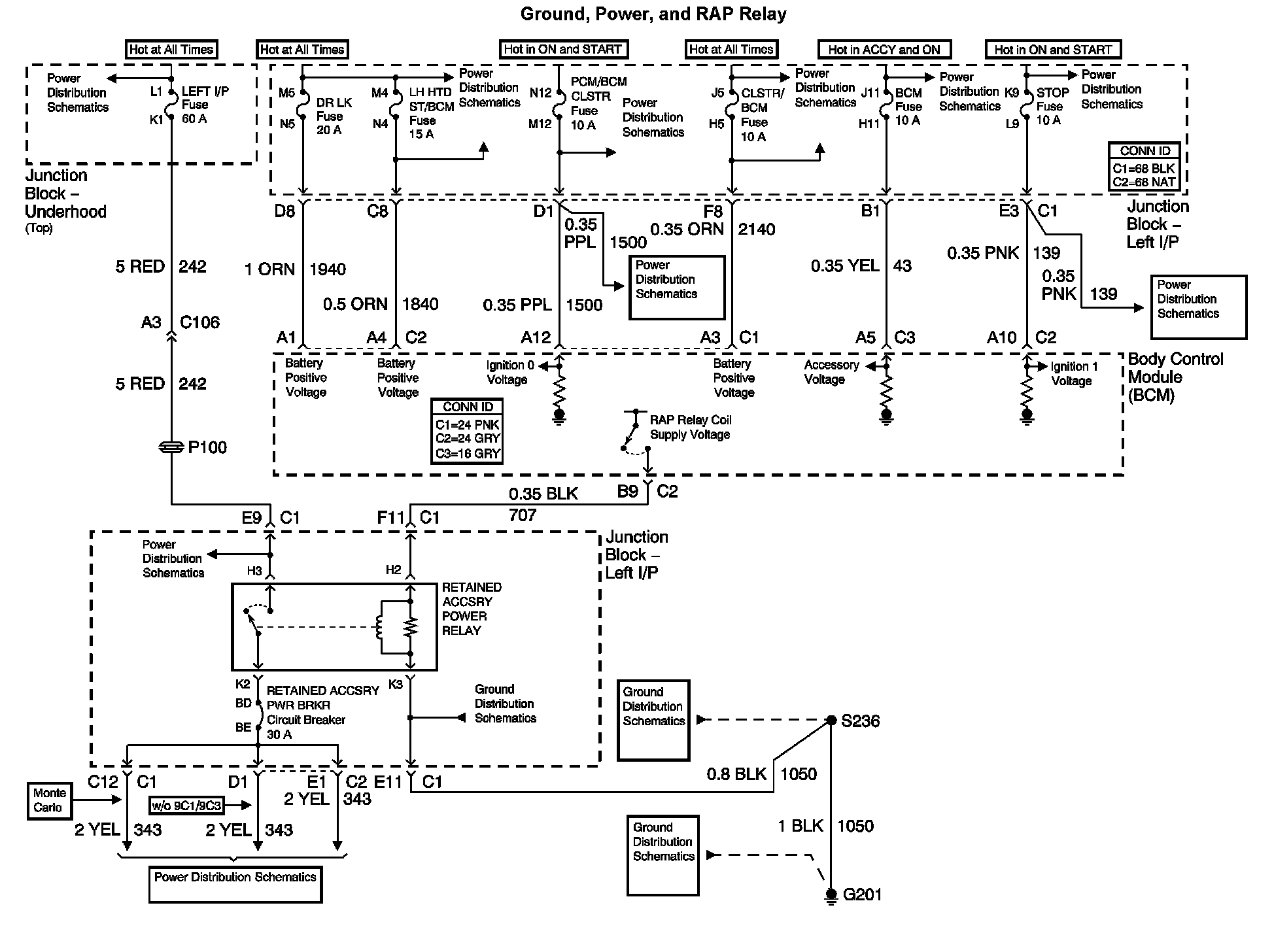

Retained Accessory Power (RAP) Diagram 2:
