HVAC Control Module



HVAC CONTROL MODULE

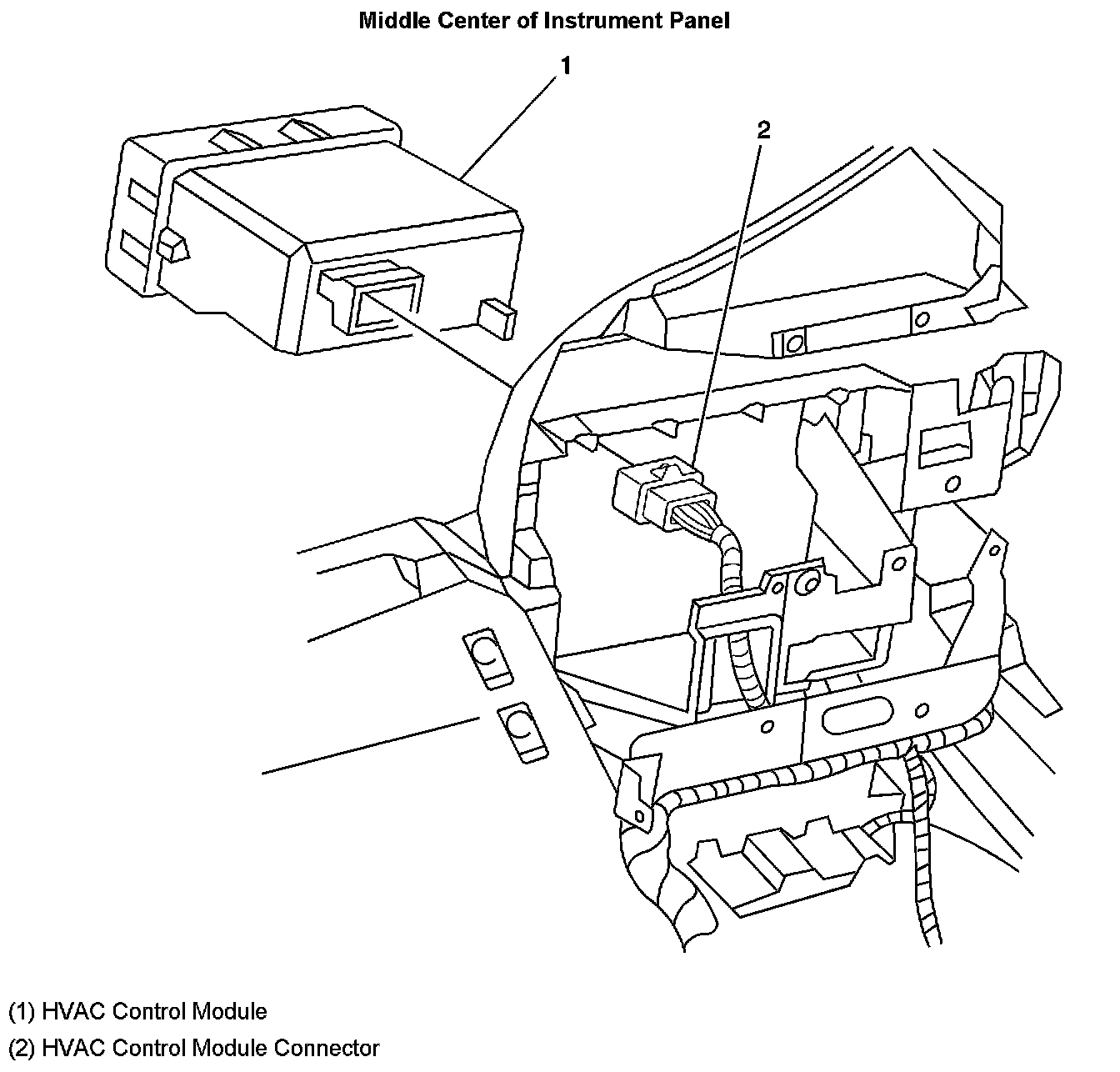

Middle Center Of Instrument Panel:






The HVAC Control Module is located in the center of the Instrument Panel.
