Steering Column - Column Shift
Steering Column

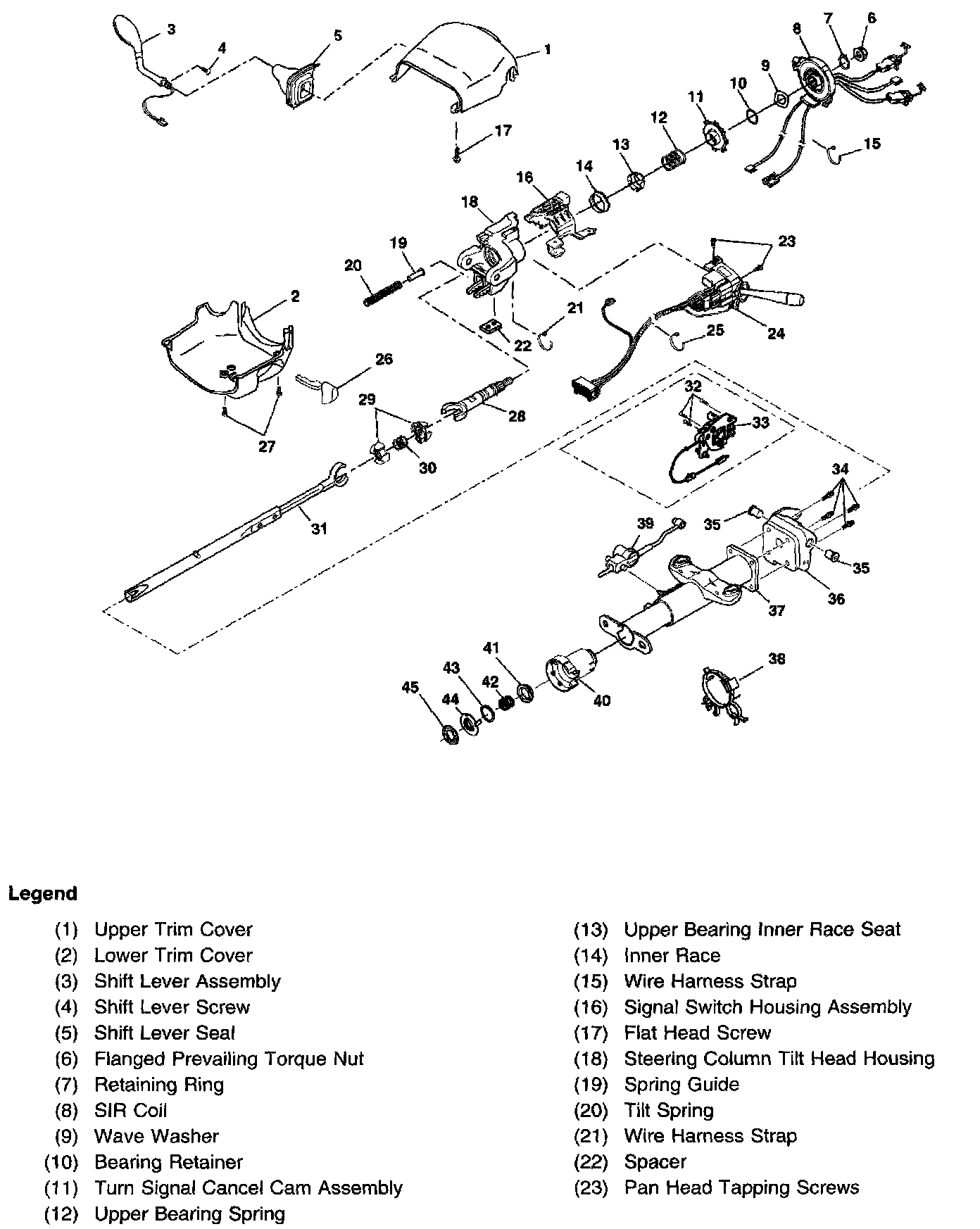

Disassembled View (Column Shift)
Part 1 Of 2:

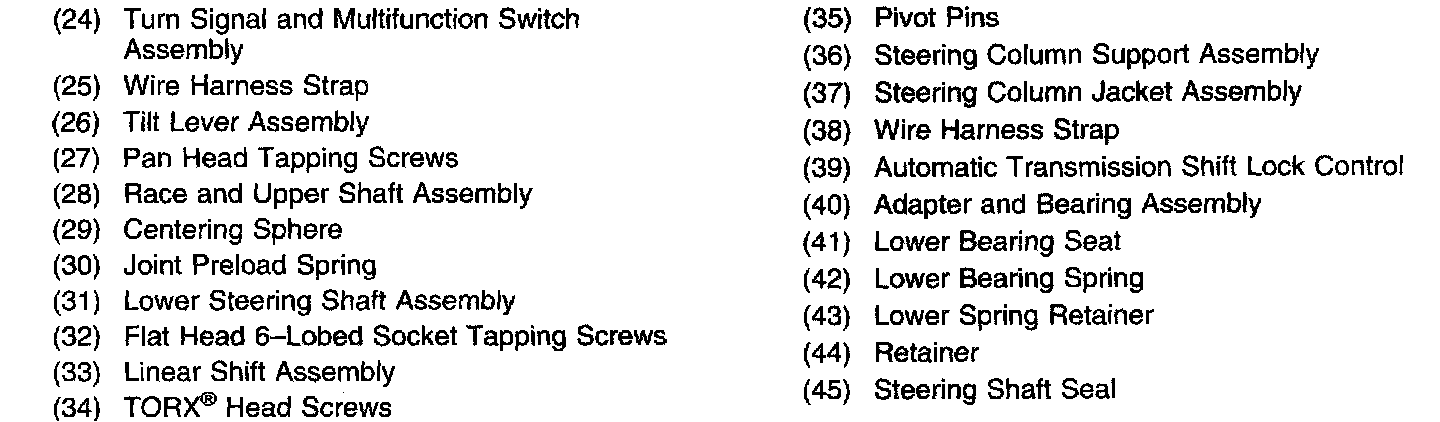

Part 2 Of 2:
Tilt
Steering Column
