Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

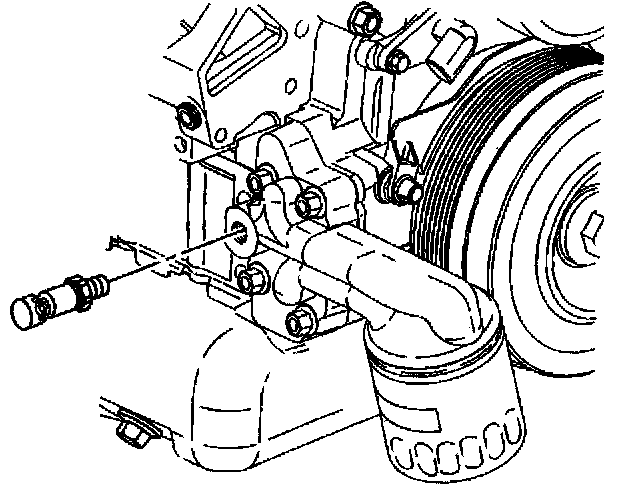

Removal Procedure





1. Raise and support the vehicle.
2. Disconnect the engine oil pressure switch electrical connector.
3. Remove the oil pressure switch.

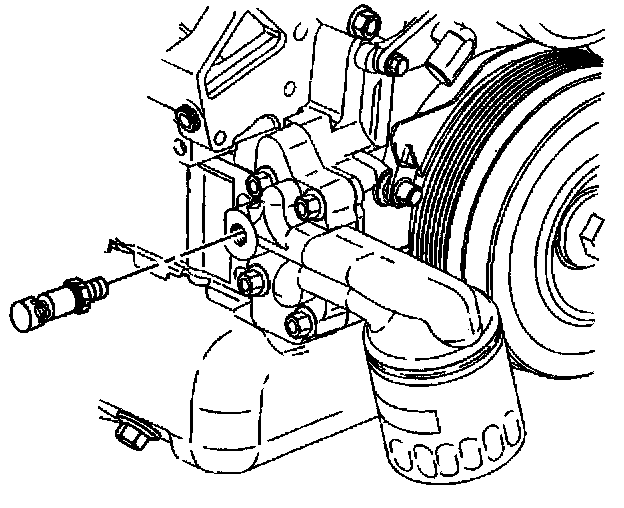

Installation Procedure





Notice; Refer to Fastener Notice in Service Precautions.

1. Install the engine oil pressure switch.
- Tighten the switch to 16 Nm (12 ft. lbs.).
2. Connect the engine oil pressure switch electrical connector.
3. Lower the vehicle.
