Removal Procedure

    CAUTION: Refer to SIR Caution .
  1. Remove the front seat. Refer to Seat Replacement - Front Bucket .
  2. Fig 1: Disconnecting Electrical Connection From Heated Seat Control Module
    GM1333137Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connection from the heated seat control module.
  4. Fig 2: Removing Fastener From Heated Seat Control Module
    GM1333139Courtesy of GENERAL MOTORS CORP.
  5. Remove the fastener from the heated seat control module.

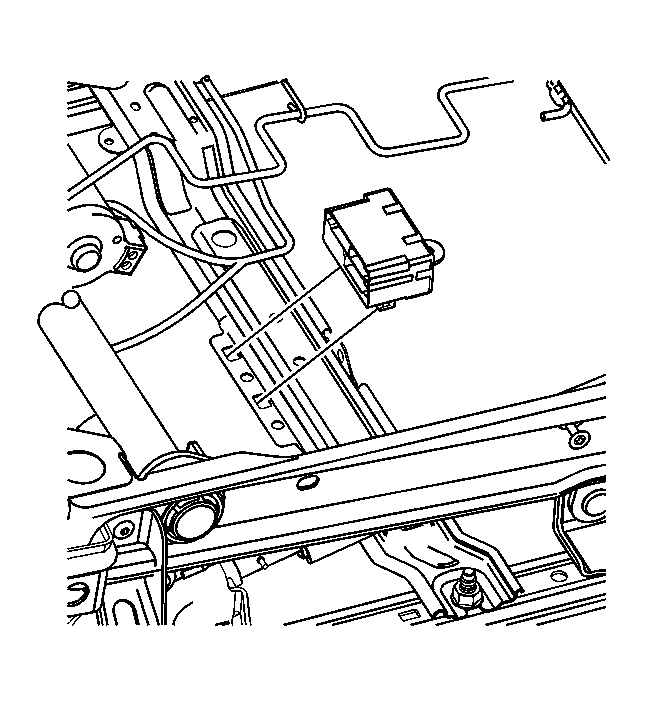

  6. Fig 3: Removing Heated Seat Control Module
    GM1333141Courtesy of GENERAL MOTORS CORP.
  7. Remove the heated seat control module.
