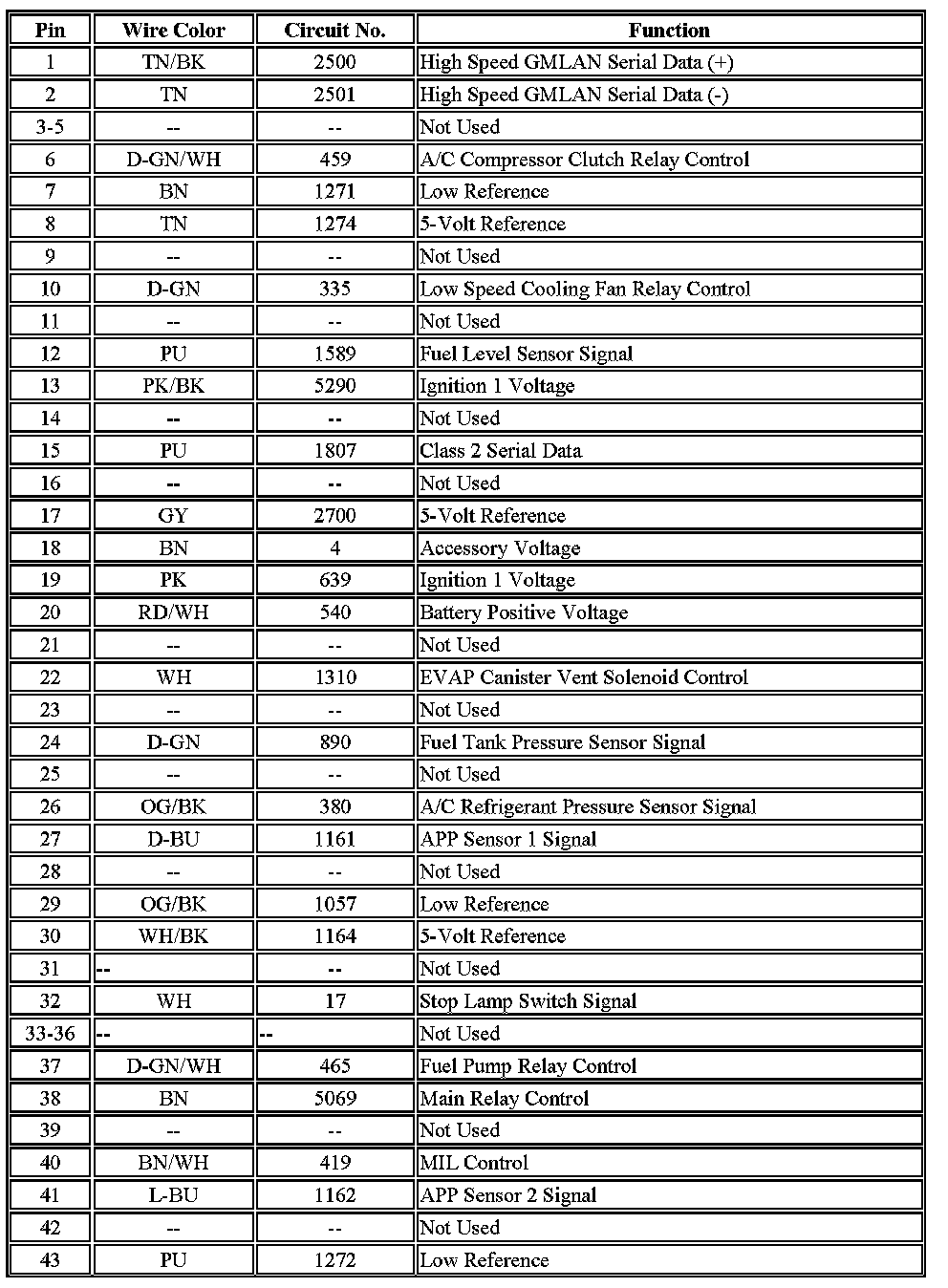

Powertrain Control Module (PCM) C1



Powertrain Control Module (PCM) C1






Connection Part Information
- OEM: 15430210
- Description: 56-way F Micro-Pack 64 Series Sealed (BU)

Powertrain Control Module (PCM) C1
