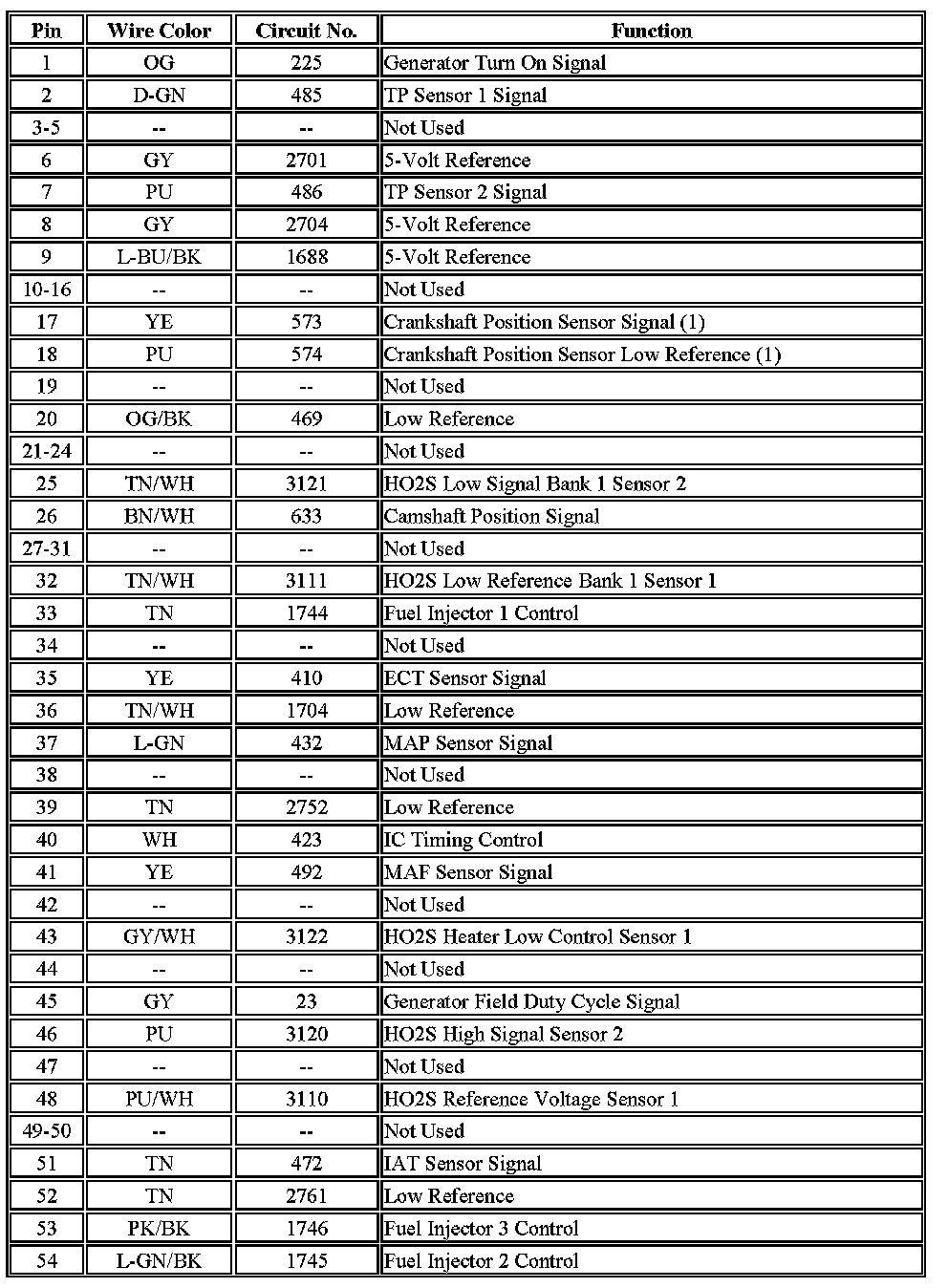

Powertrain Control Module (PCM) C2



Powertrain Control Module (PCM) C2






Connector Part Information
- OEM: 15430225
- Description: 73-Way F Micro-Pack 64 Series Sealed (BK)

Powertrain Control Module (PCM) C2
