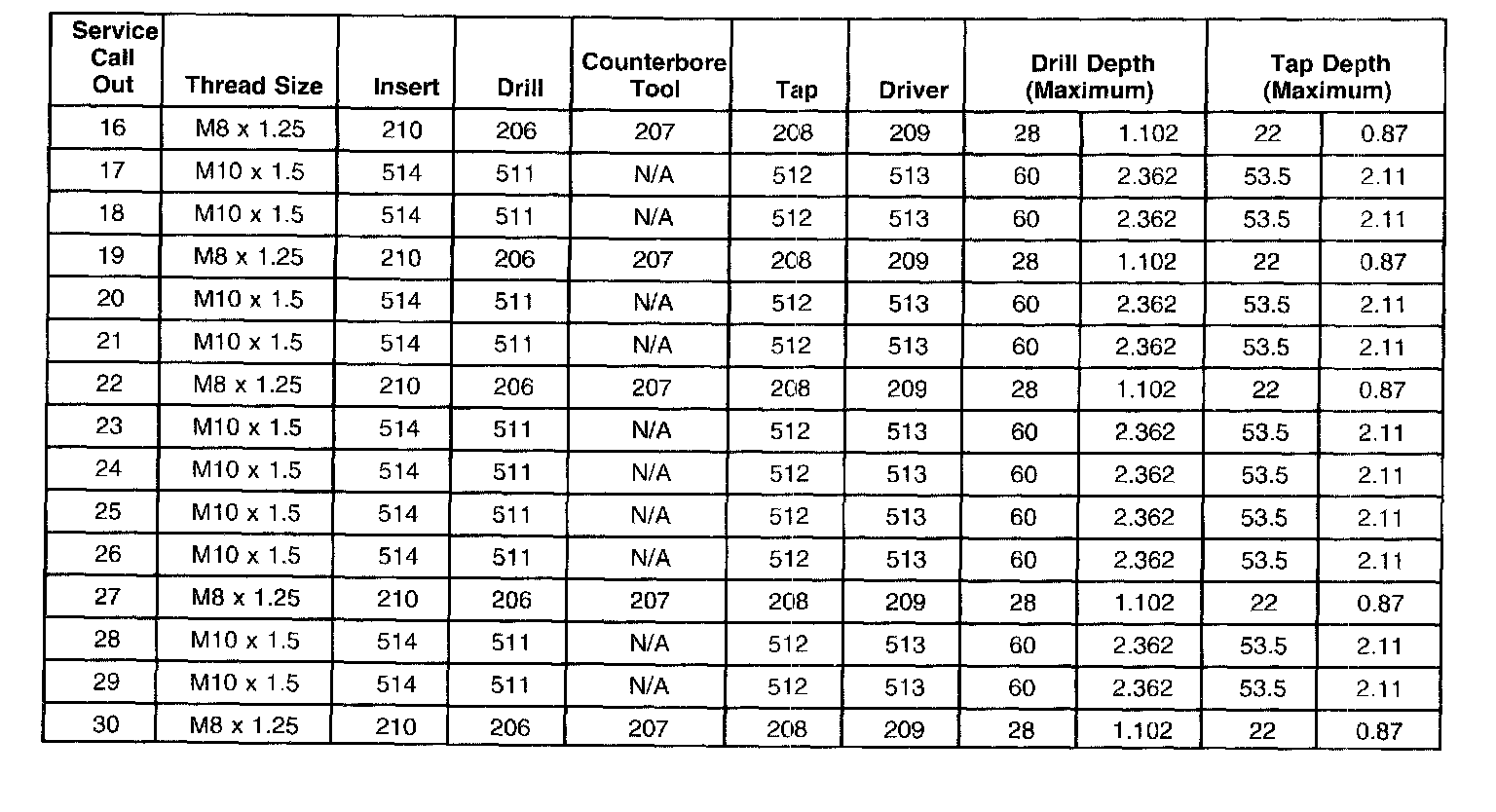

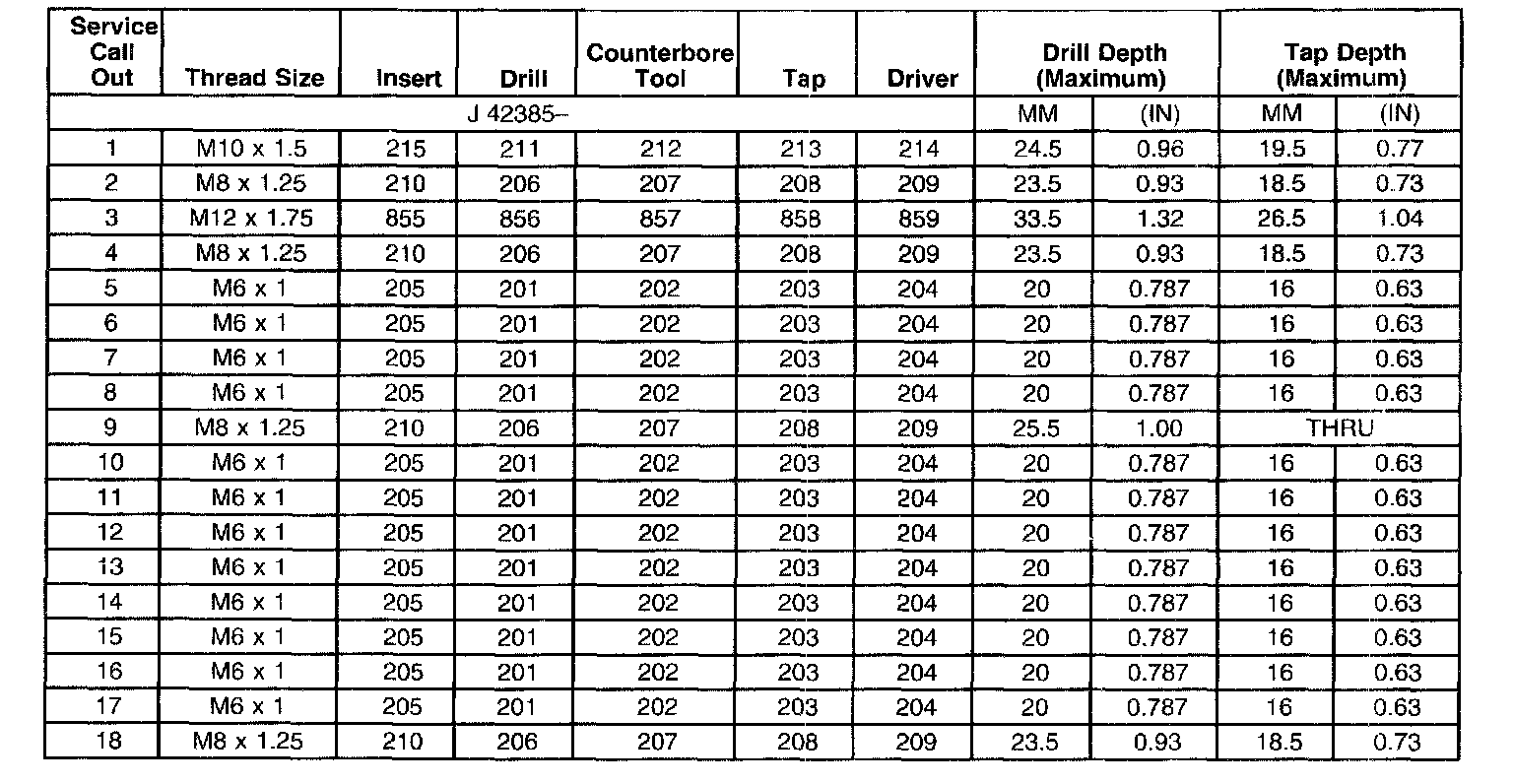

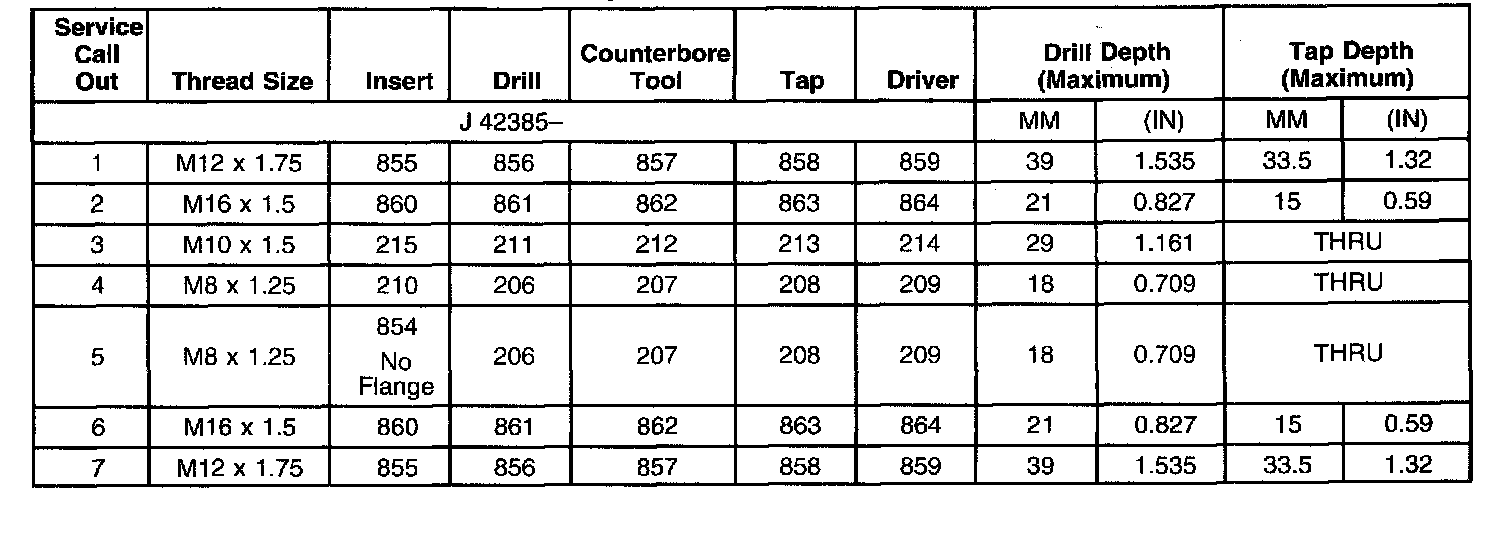

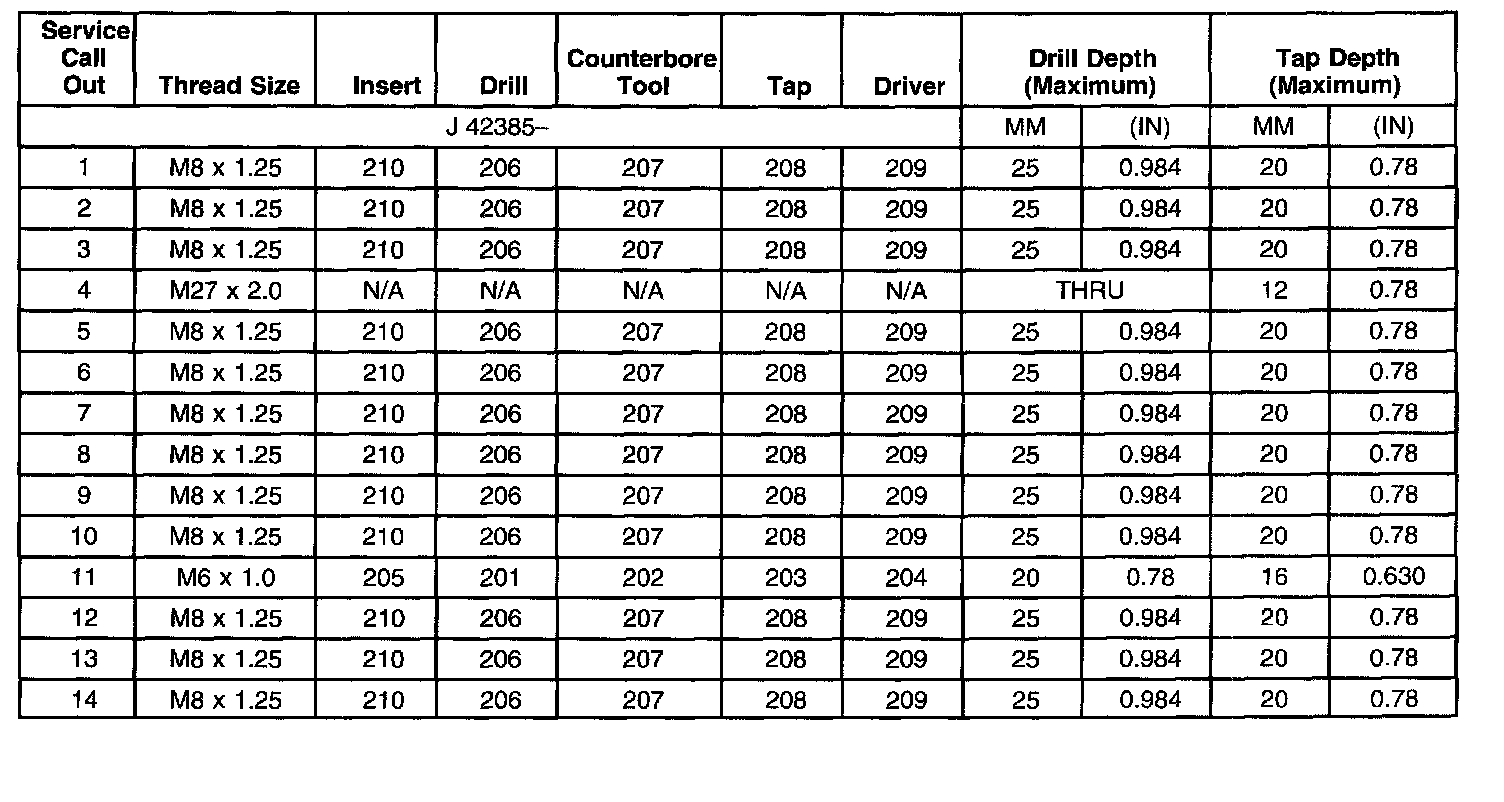

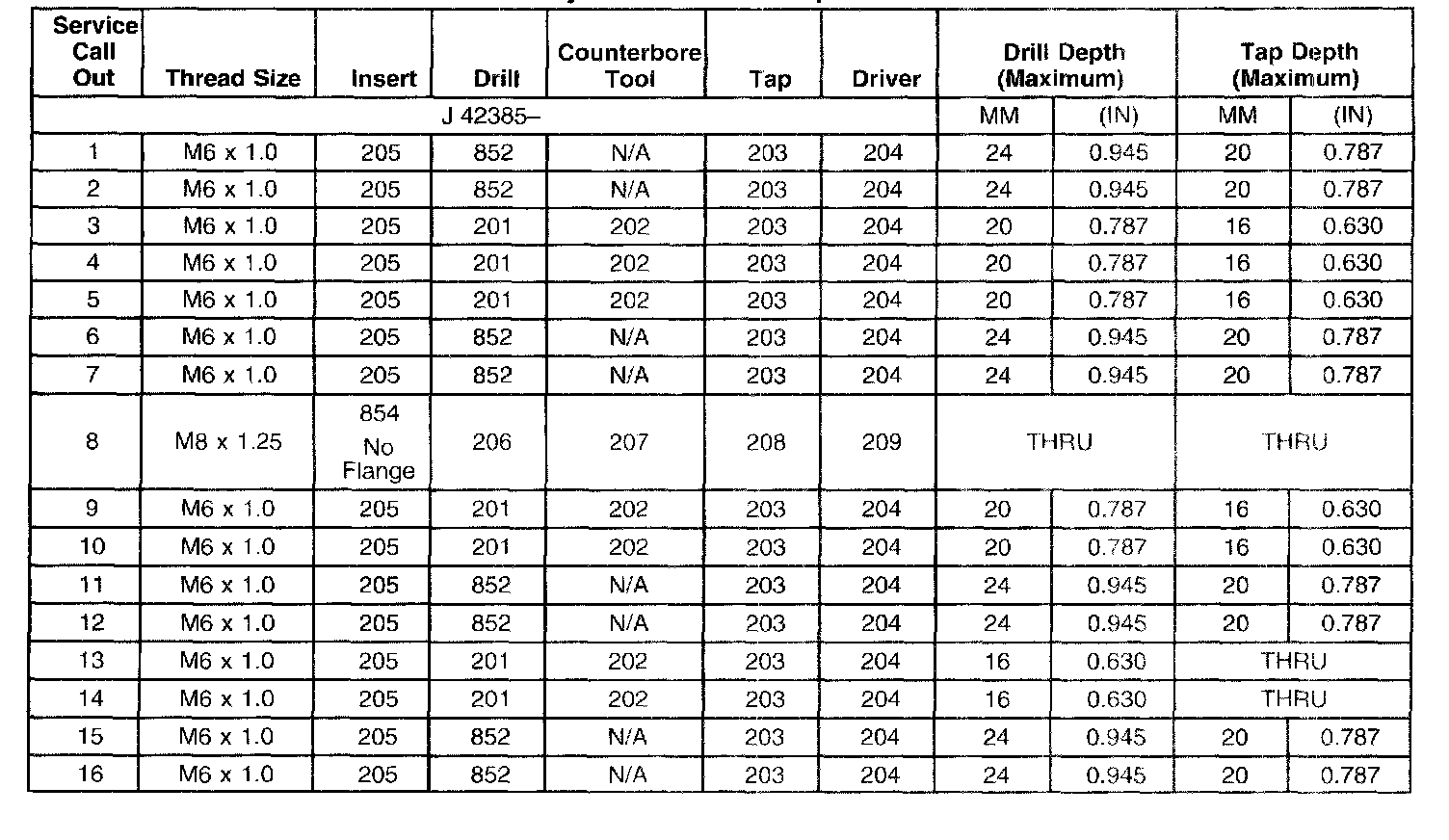

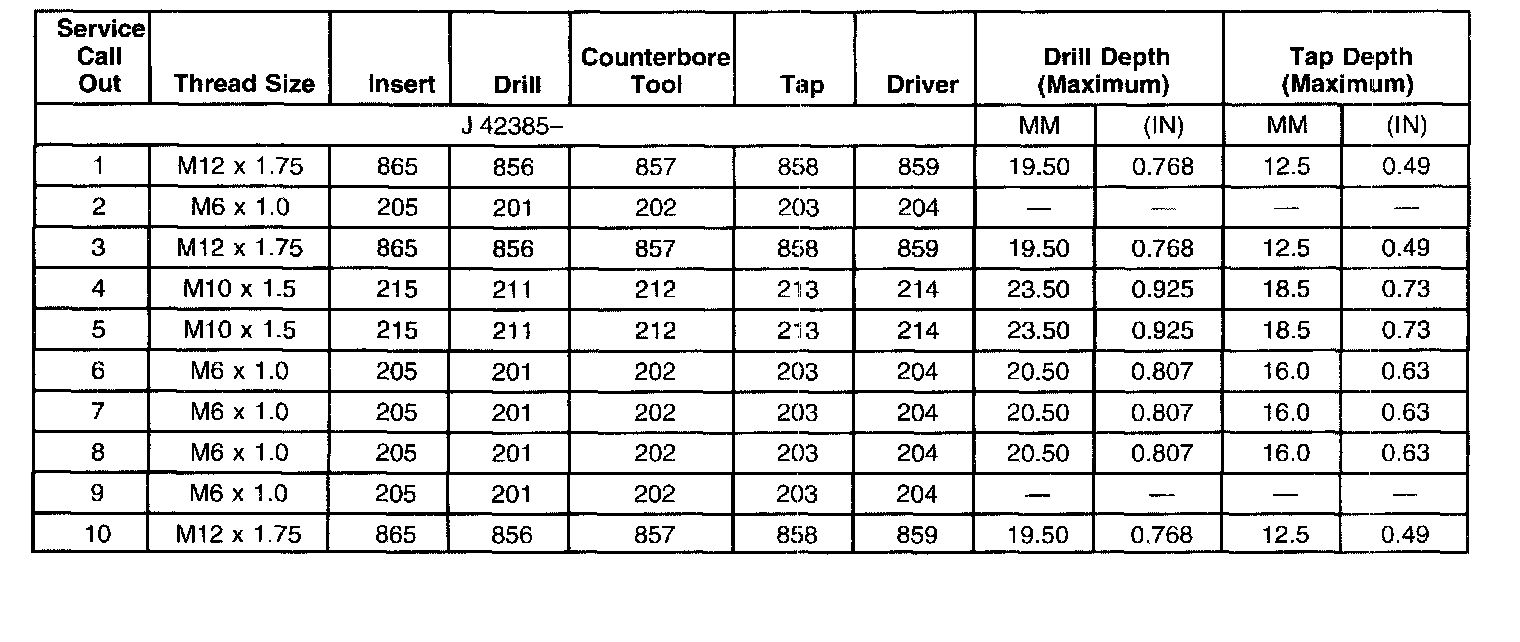

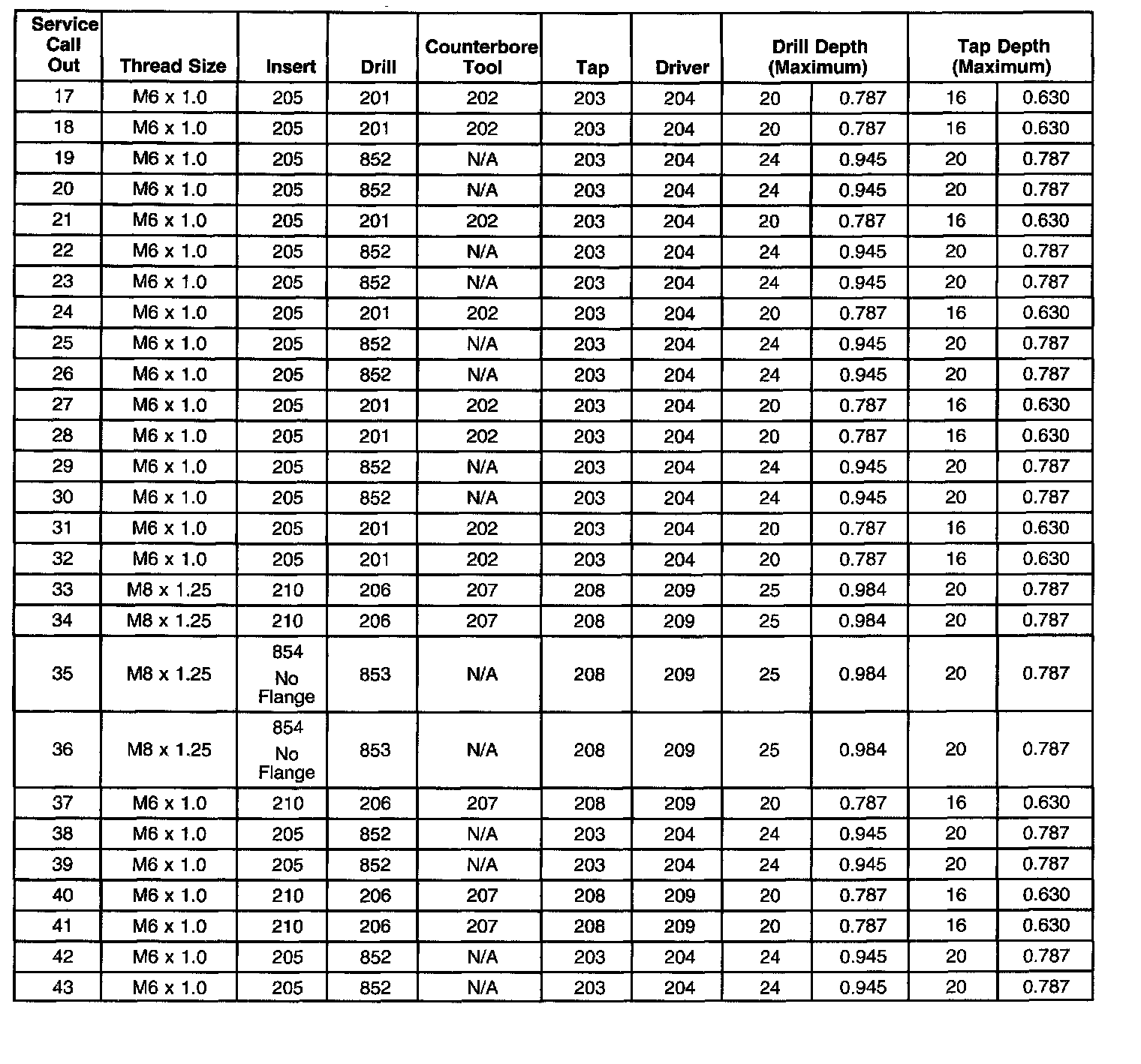

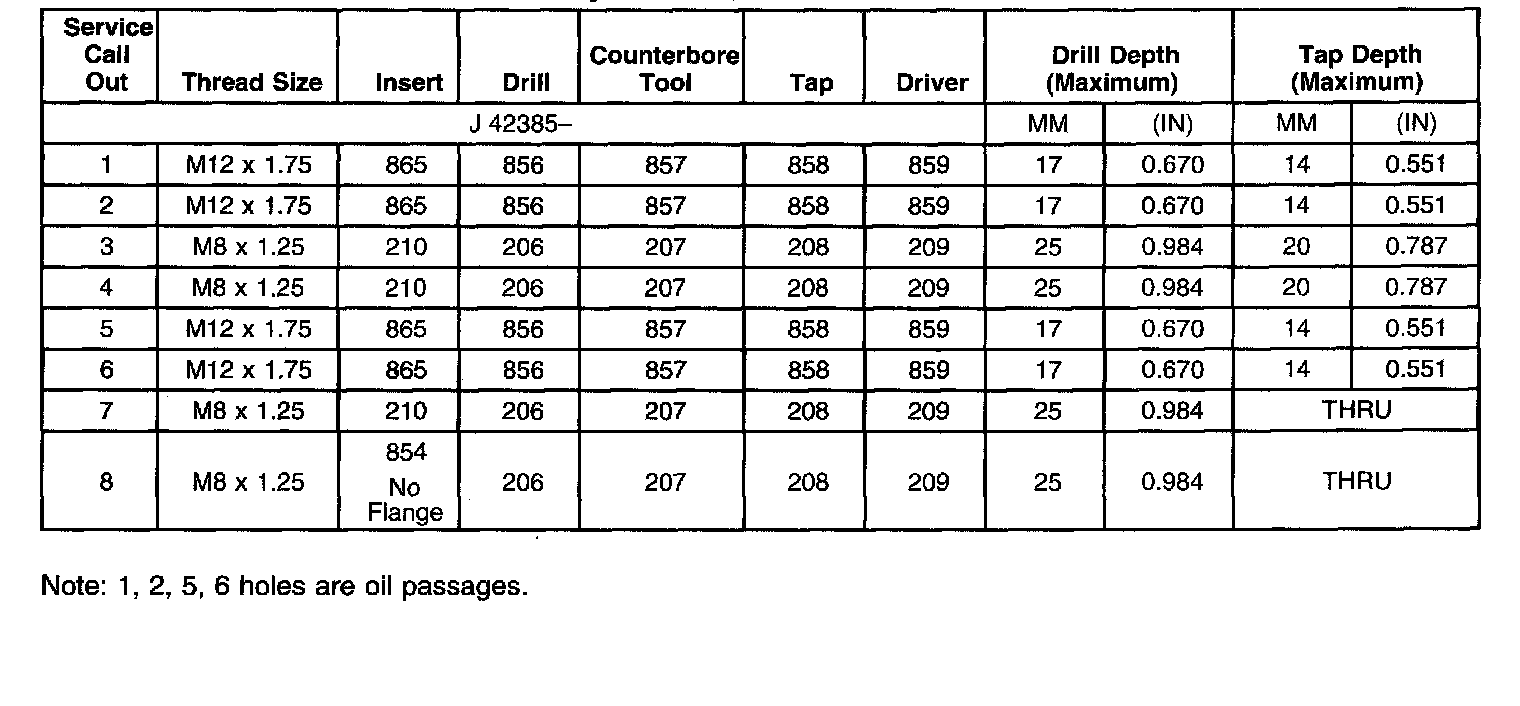

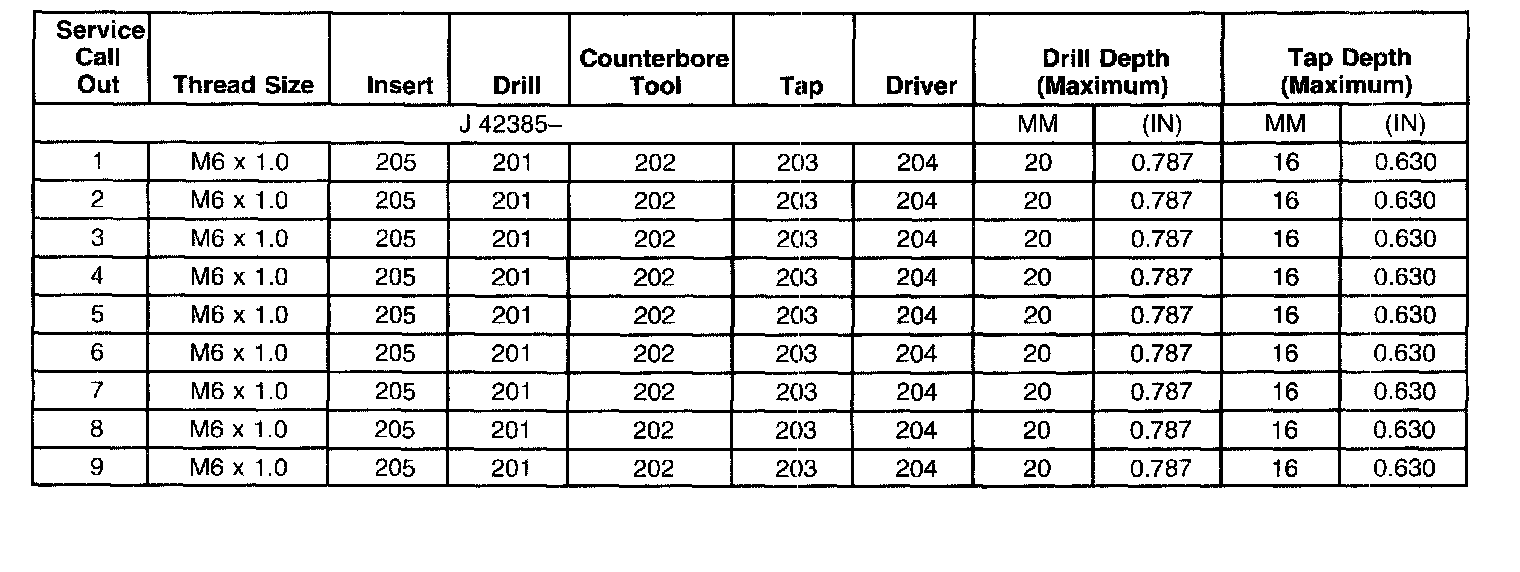

Thread Repair Specifications
Thread Repair Specifications

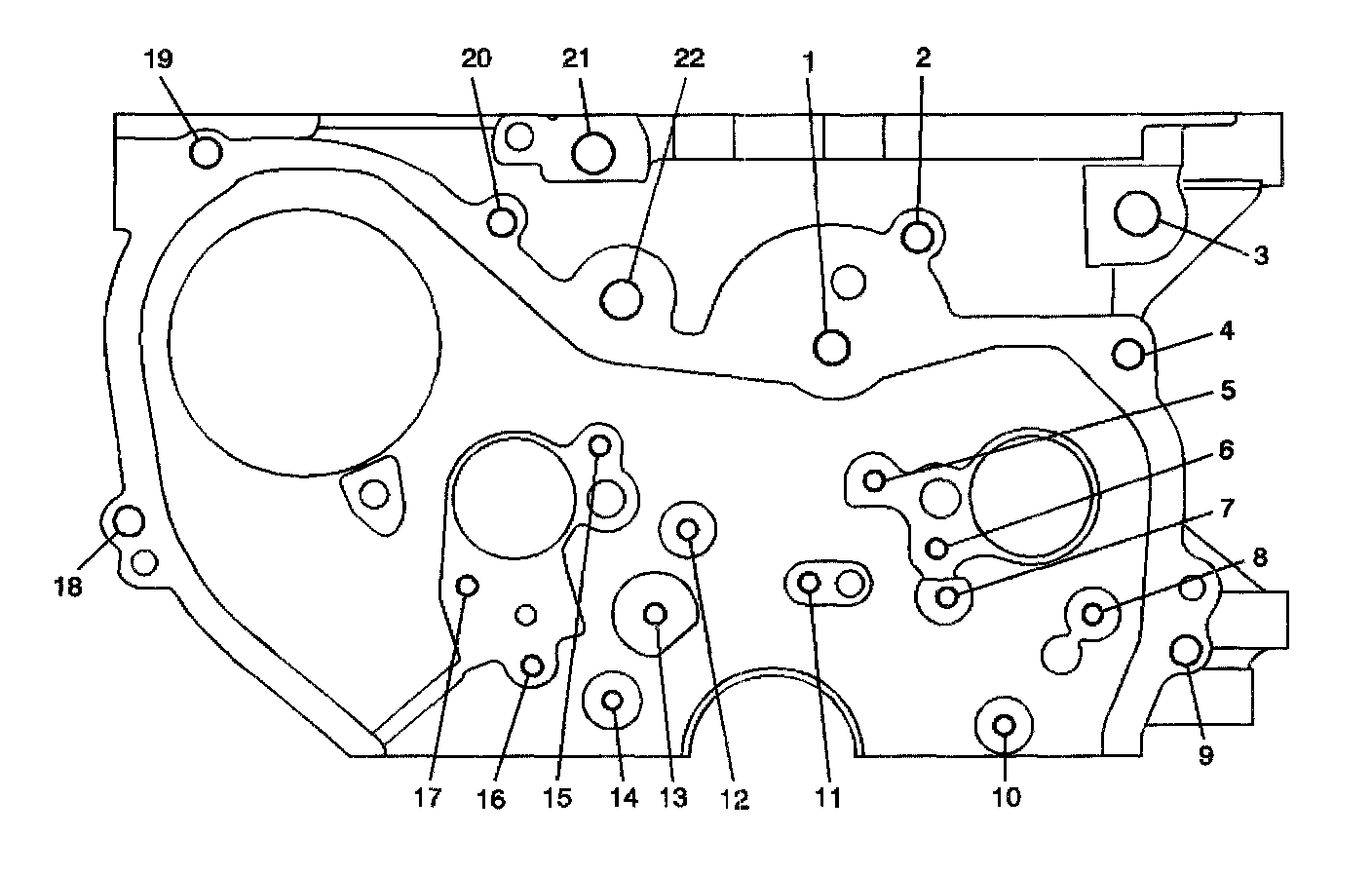

Engine Block - Front View
Engine Block- Back View
Engine Block- Left Side view
Engine Block- Bottom View
Engine Block - Right Side View

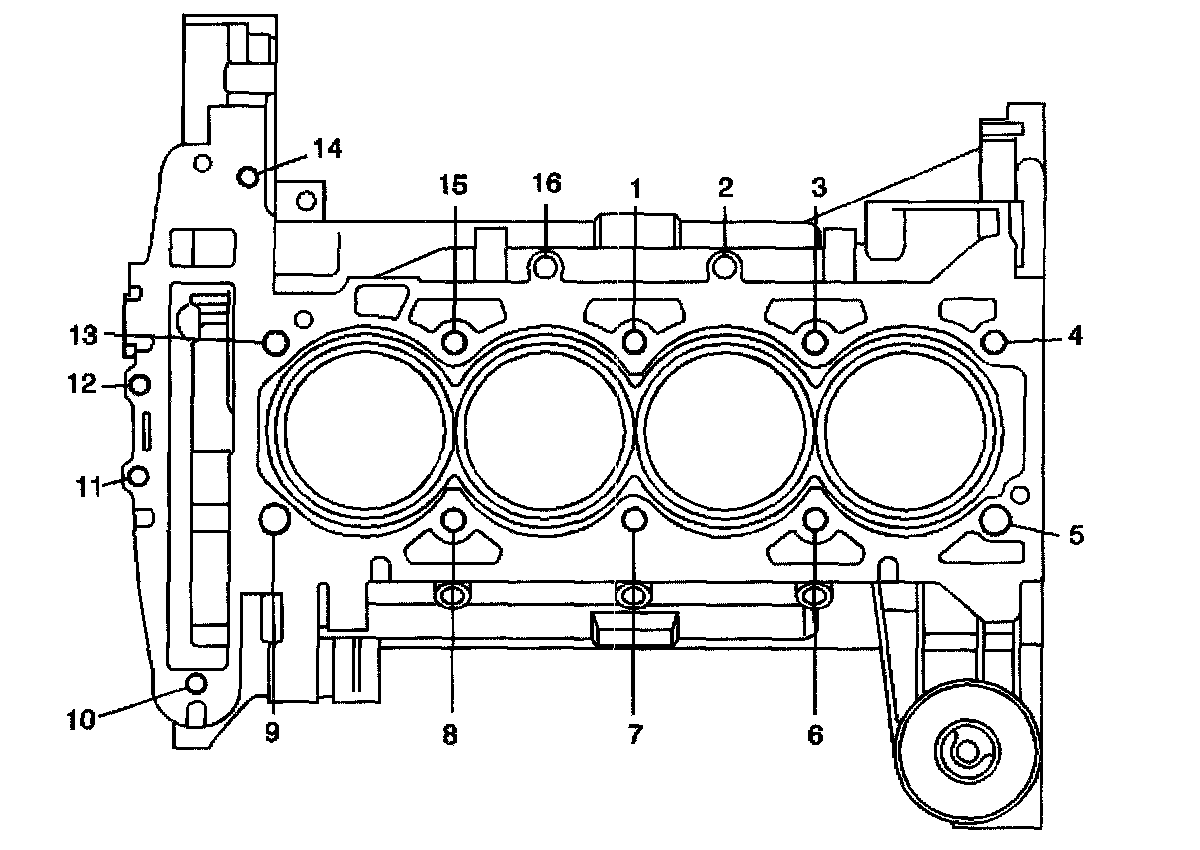

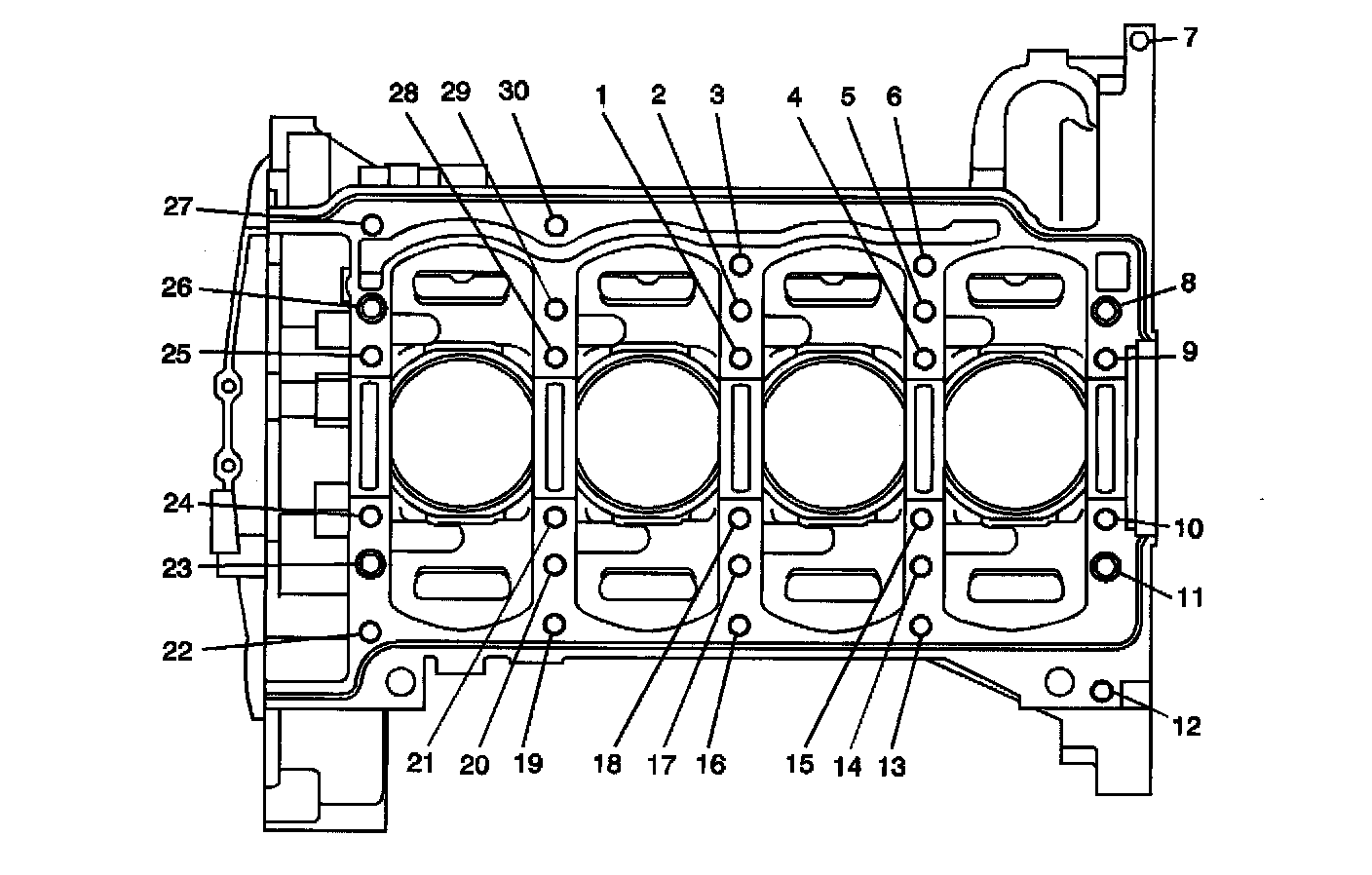

Engine Block - Top View
Lower Crankscase - Front View
Lower Crankcase- Back View

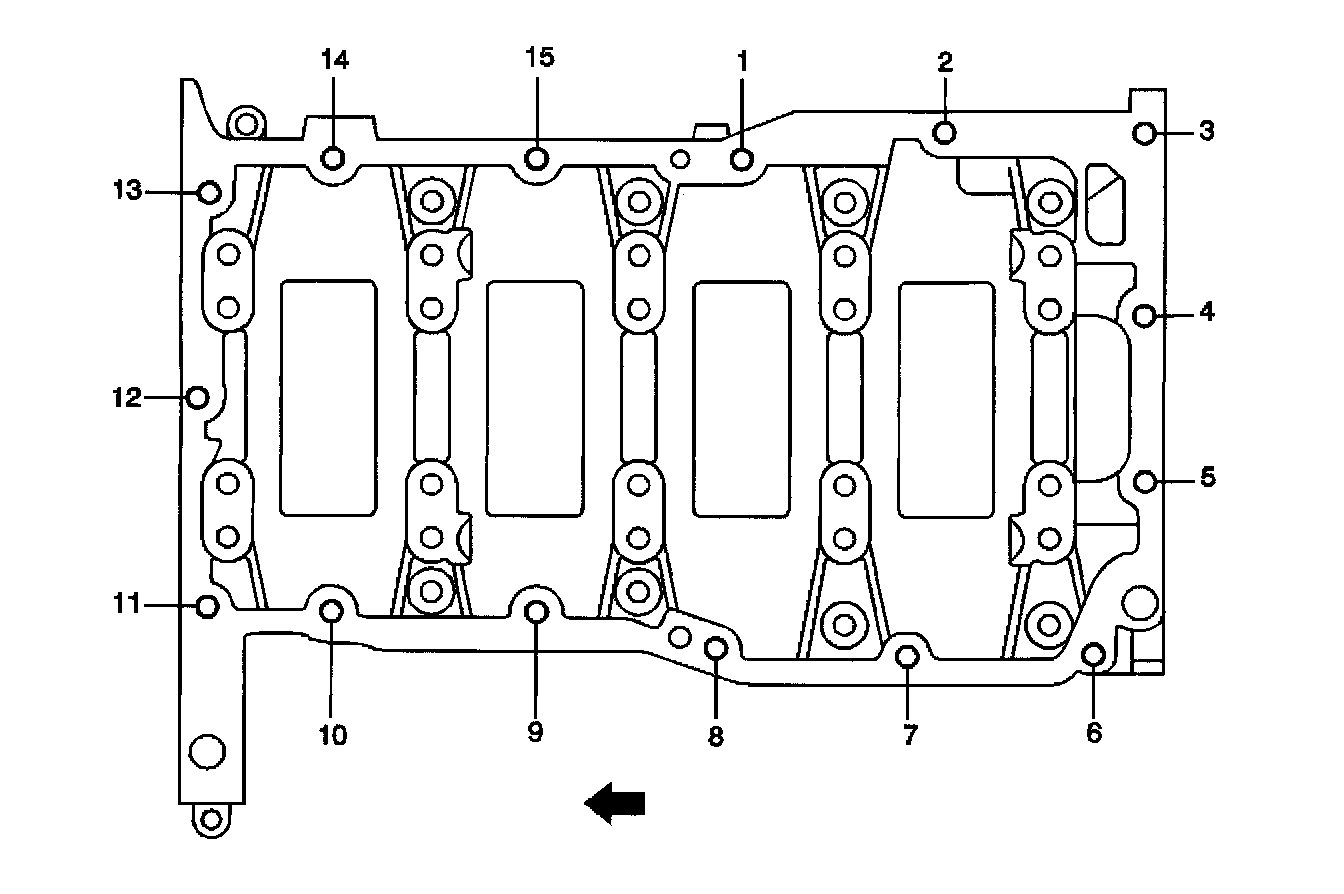

Lower Crankcase- Bottom View
Lower Crankcase-Left View
Lower Crankcase - Right View

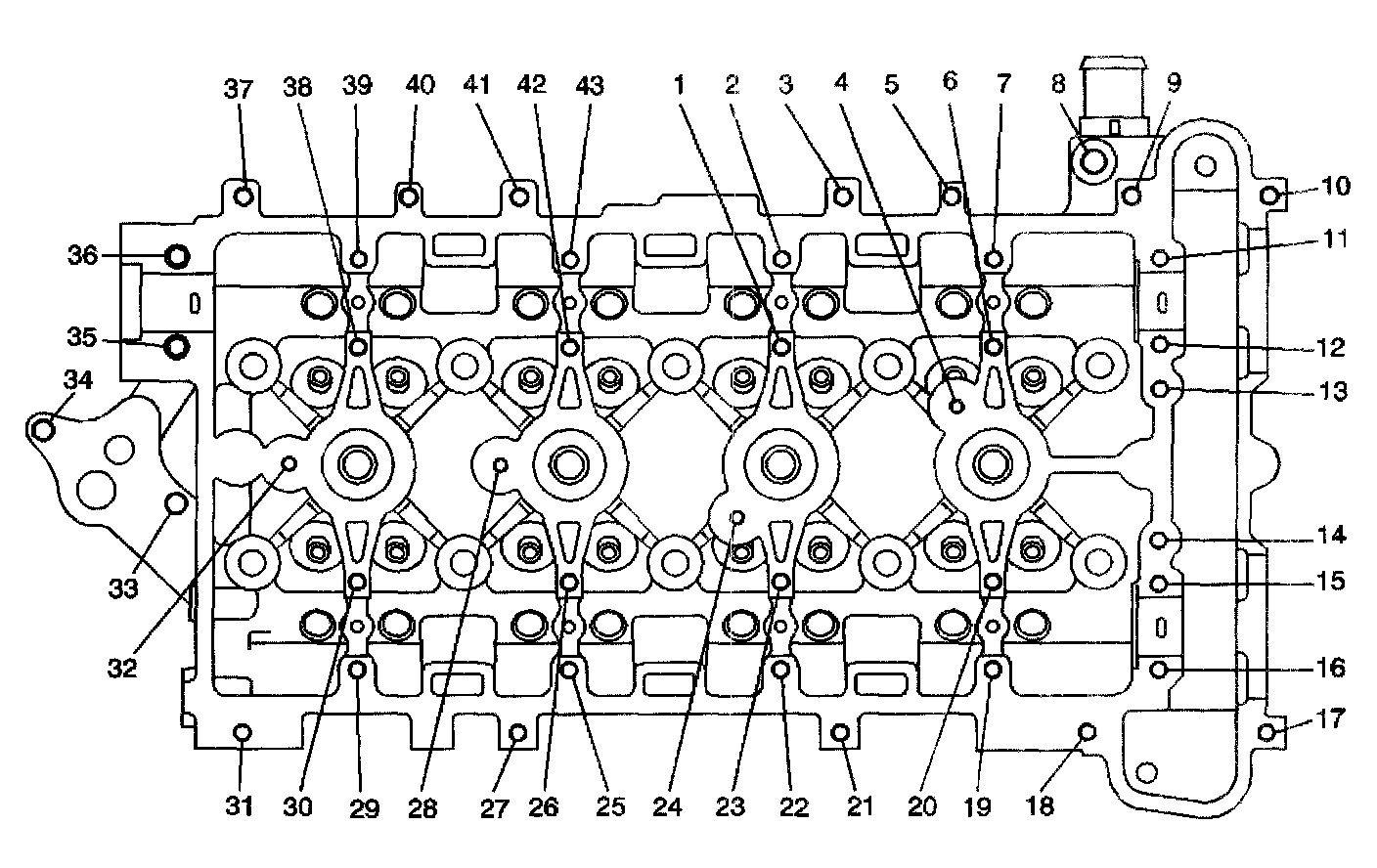

Cylinder Head-Top View
Cylinder Head - Intake Manifold Deck View
Cylinder Head - Exhaust Manifold Deck View
Cylinder Head - Front View
Cylinder Head - Back View

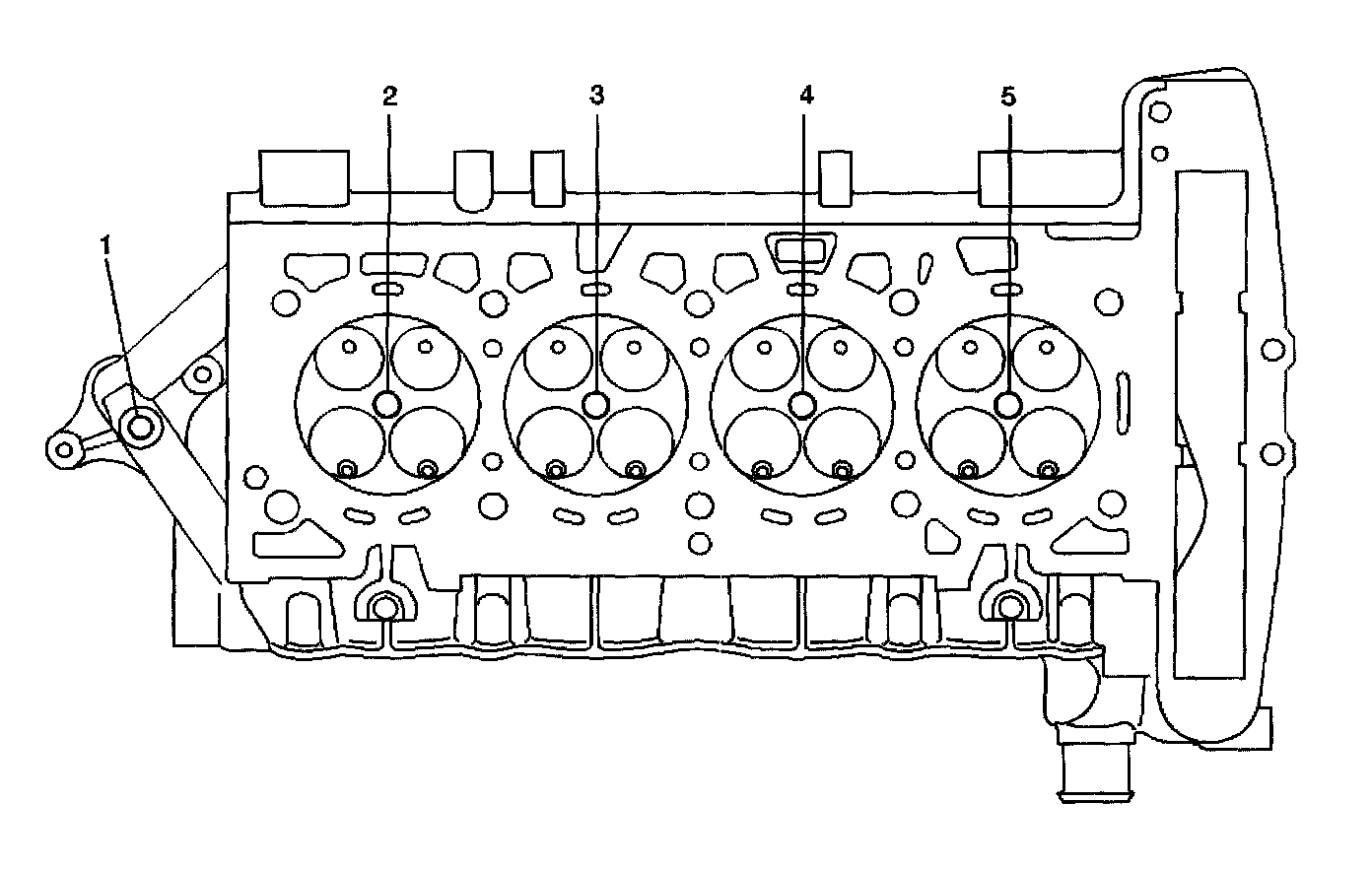

Cylinder Head - Bottom View
