Engine Electrical Component Views

Fig 1: View Of Above and Forward Of Radiator

GM1265767

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3)

Fig 2: View Of Starter

GM1370250

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Terminal at Starter Solenoid
2	Fusible Link
3	Starter Solenoid
4	S Terminal
5	Starter

Fig 3: View Of Left Rear of Engine Compartment

GM1264030

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	Battery
3	Electronic Brake Control Module (EBCM)
4	C101
5	G103
6	Fuse Block - Underhood
7	Powertrain Control Module (PCM)
8	Powertrain Control Module (PCM), C3
9	Powertrain Control Module (PCM), C2
10	Powertrain Control Module (PCM), C1

Fig 4: View Of Right Lower Front of Engine - L61

GM1265624

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Starter
2	Starter Solenoid

Fig 5: View Of Lower Left Front of Engine - LX9

GM1265648

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Oil Pressure (EOP) Switch
2	Starter
3	Starter Solenoid
4	Knock Sensor (KS) 2

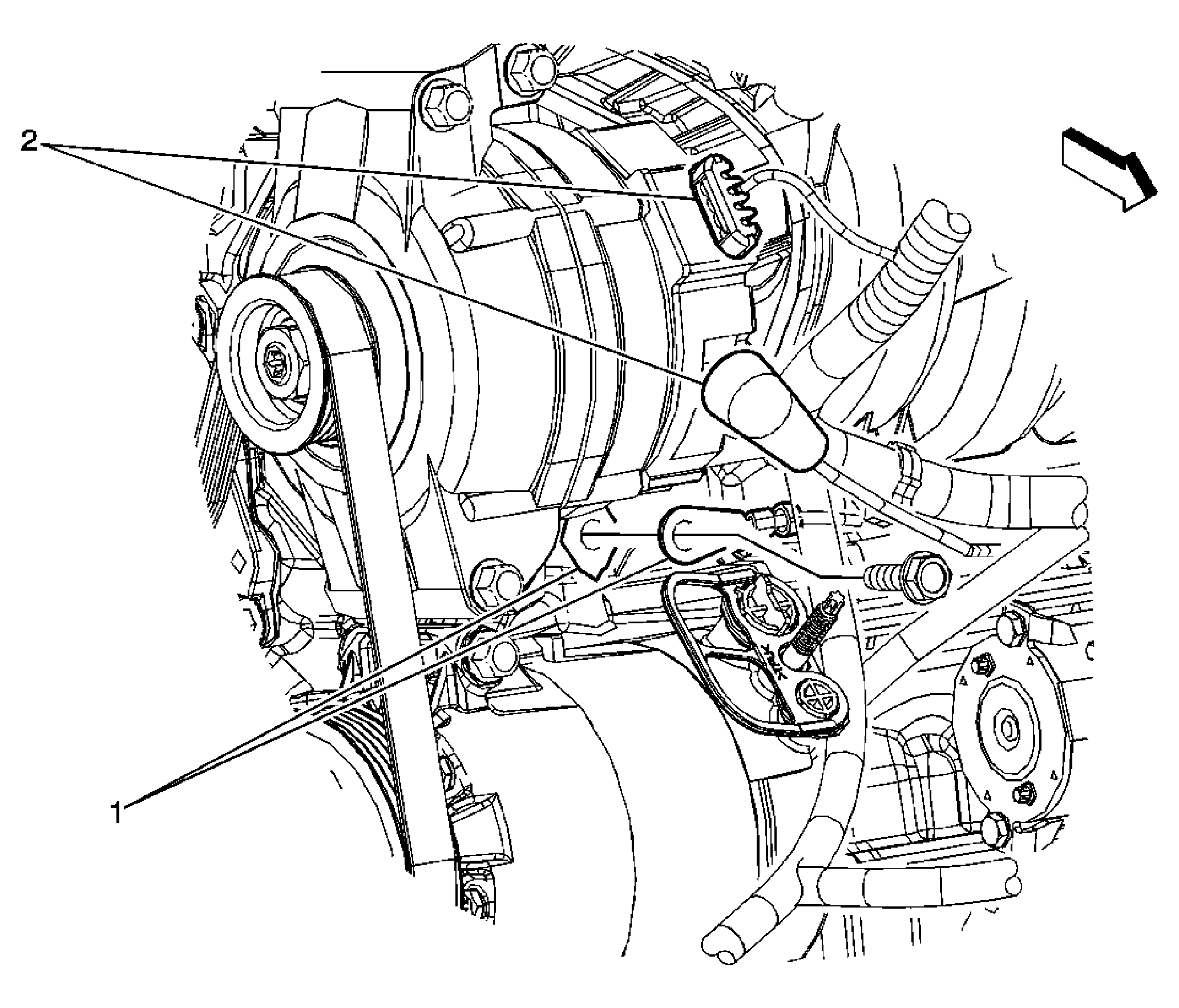

Fig 6: View Of Top Right Front of Engine - L61

GM1263982

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G106
2	Generator

Fig 7: View Of Top Rear of Engine - LX9

GM1265688

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Manifold Absolute Pressure (MAP) Sensor
2	Generator
3	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
4	Ignition Control Module (ICM)
5	Exhaust Gas Recirculation (EGR) Valve
6	Evaporative Emission (EVAP) Canister Purge Solenoid
7	Throttle Actuator Control (TAC) Module

Fig 8: View Of Instrument Panel

GM1360206

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Hazard Switch
8	Ambient Light Sensor
9	Radio
10	HVAC Control Module
11	Inflatable Restraint I/P Module
12	Traction Control Switch (NW7, NW9), Auxiliary Power Outlet - Front (w/o NW7, NW9)
13	Transmission Shifter
14	Cigar Lighter
15	Horn Buttons/Inflatable Restraint Steering Wheel Module
16	Data Link Connector (DLC)
17	Fog Lamp Switch (T96)
18	Dimmer Switch
19	Adjustable Pedals Position Switch (JF4)
