Air Bag Systems

SIR Component Views

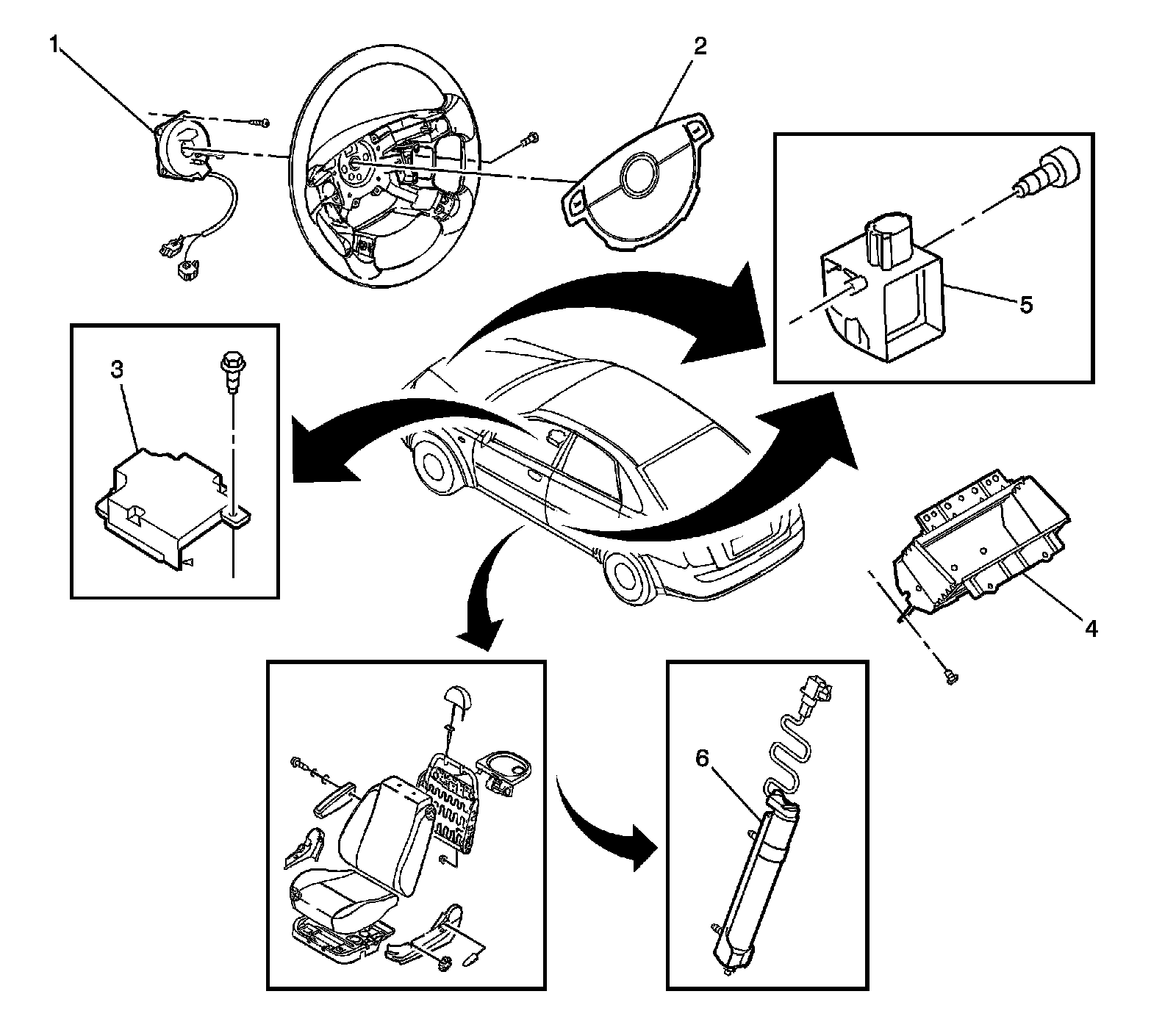

SIR




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
4 - Passenger Airbag Module
5 - Inflatable Restraint Side Impact Sensor (SIS) - Driver, Passenger or Inflatable Restraint Front End Discriminating Sensor - Right or Left
6 - Side Airbag Module

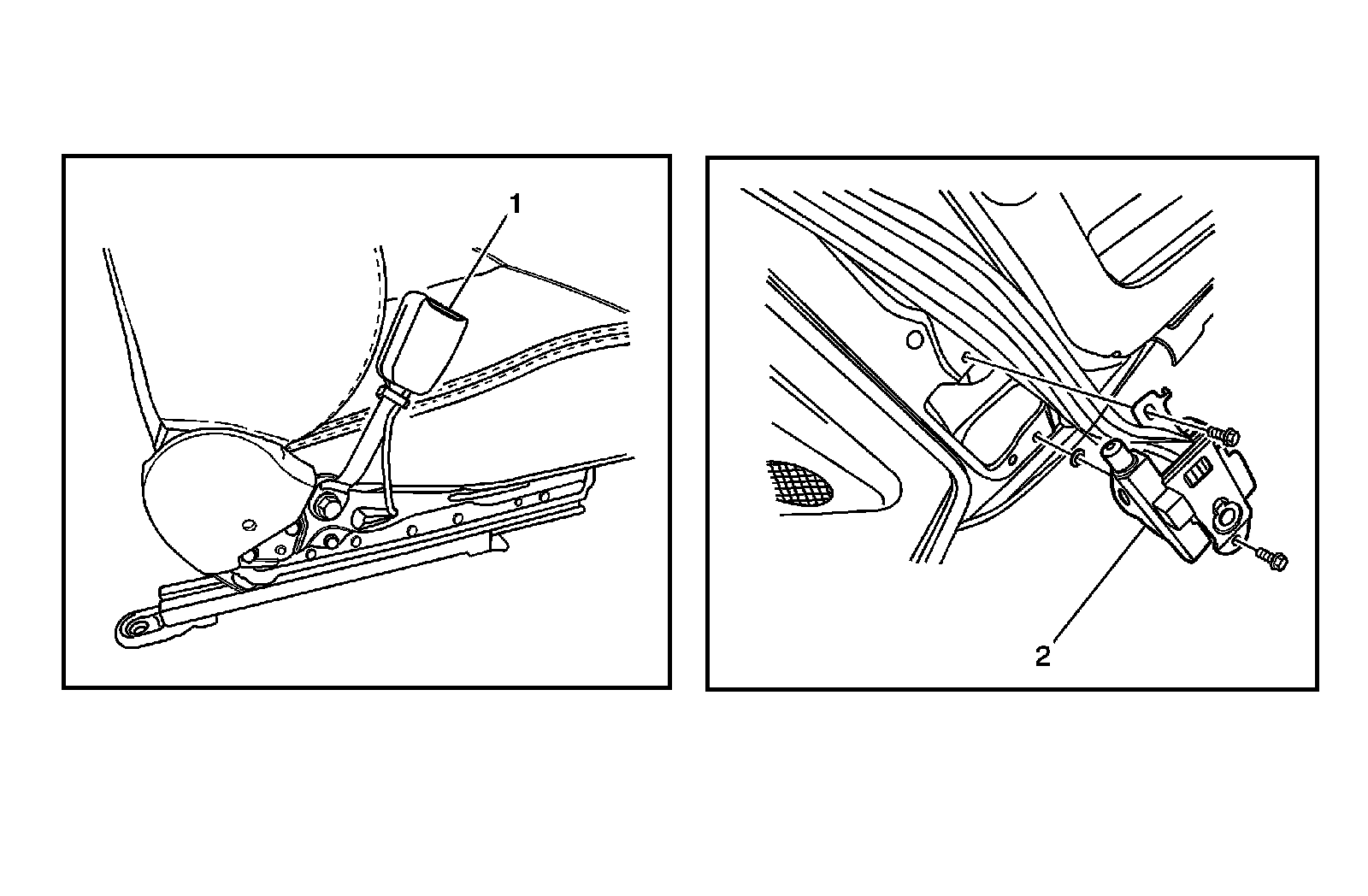

Seat Belt Switch, Seat Belt Pretensioner - Driver and Passenger




1 - Seat Belt Switch
2 - Seat Belt Pretensioner - Driver and Passenger
