Home
>>
Chevrolet
>>
2004
>>
Optra (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Diagrams
>>
Electrical Diagrams
>>
Data Link Connector Schematics
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

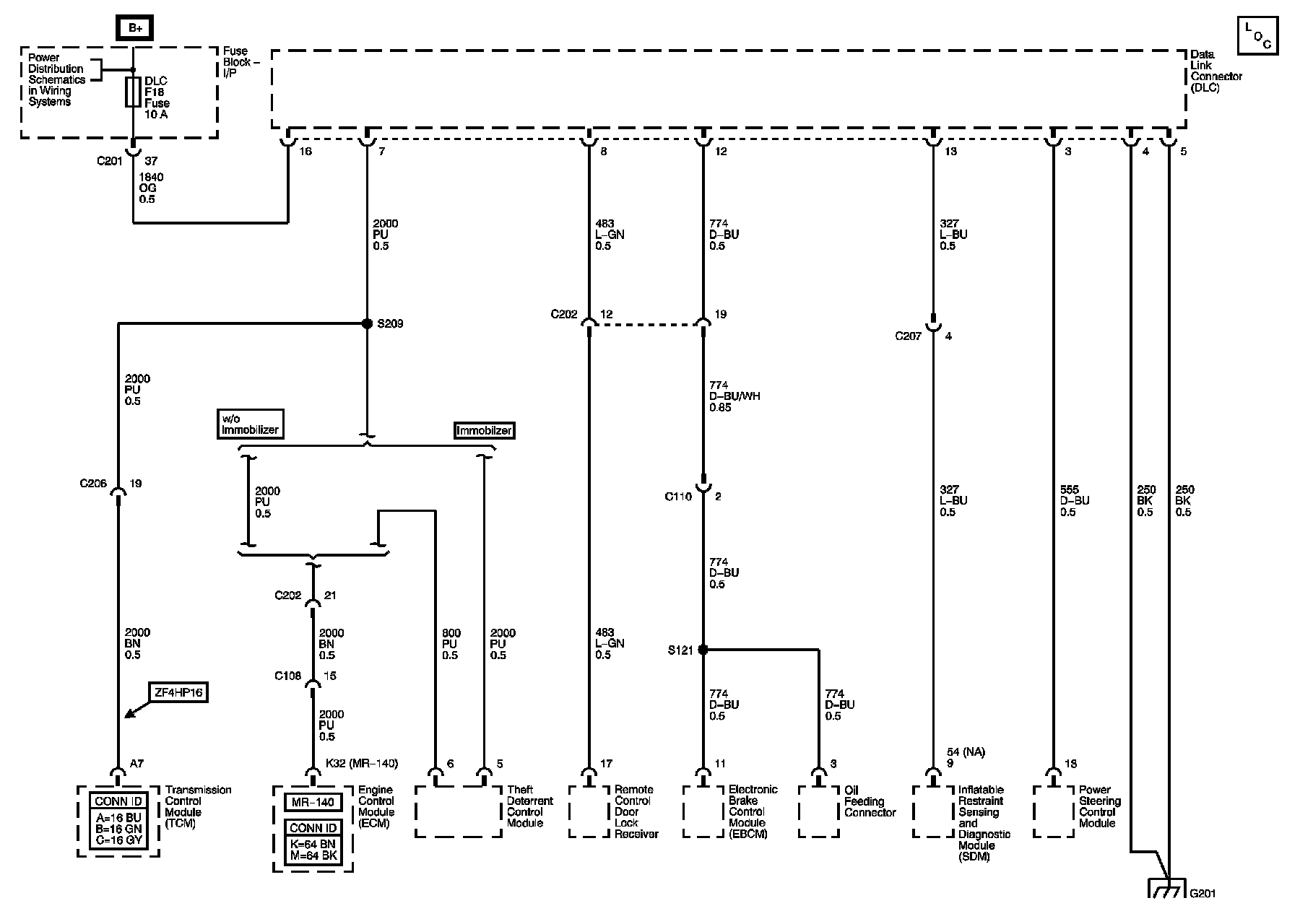

Data Link Connector Schematics

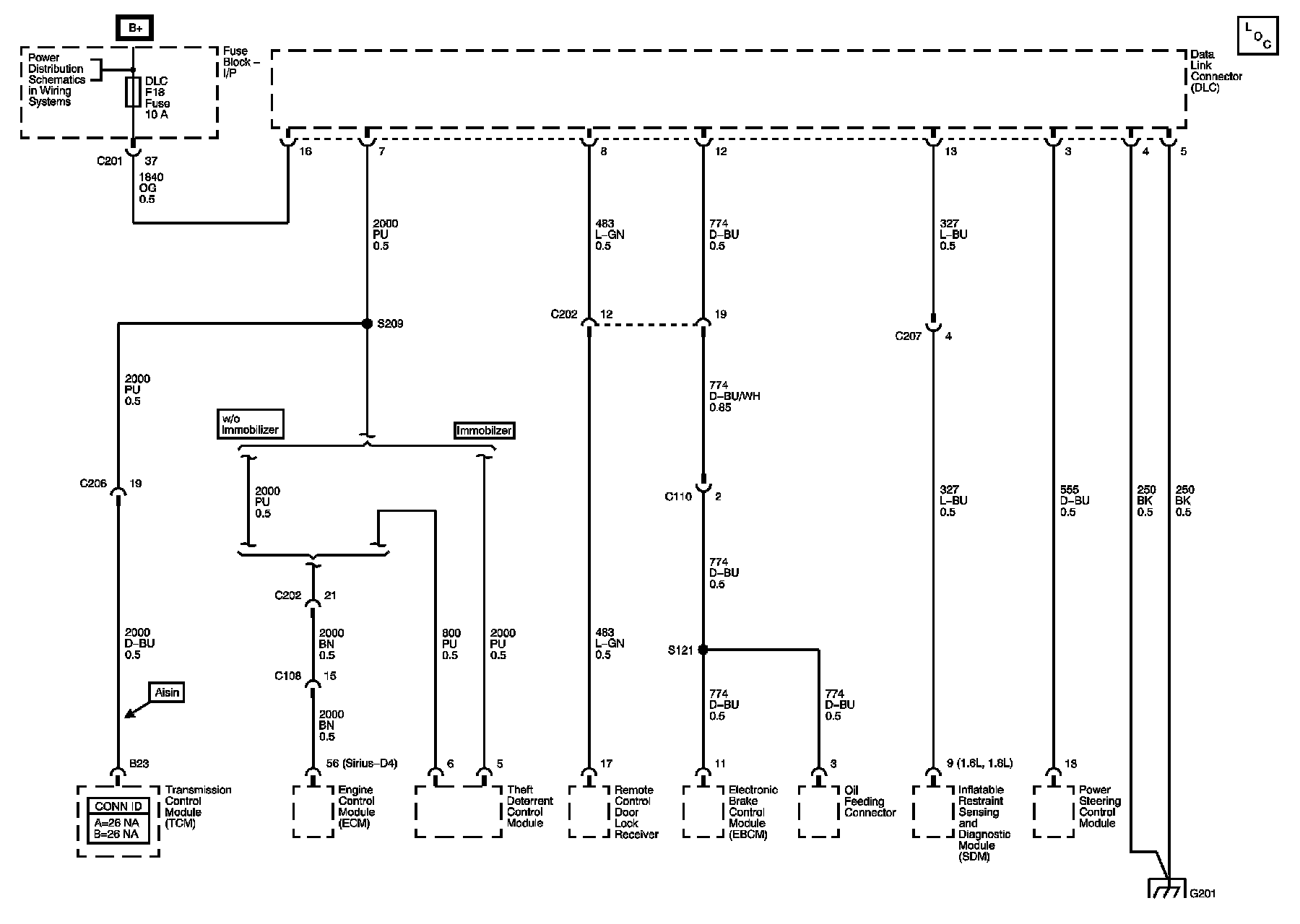

Data Link Connector Schematics
MR 140
HV 240
Sirius
