Steering Control Module: Service and Repair

Power Steering Control Module Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect negative battery cable.
2. Remove the glove box. Refer to Instrument Panel Storage Compartment Replacement Service and Repair in Instrument Panel, Gages, and Console.

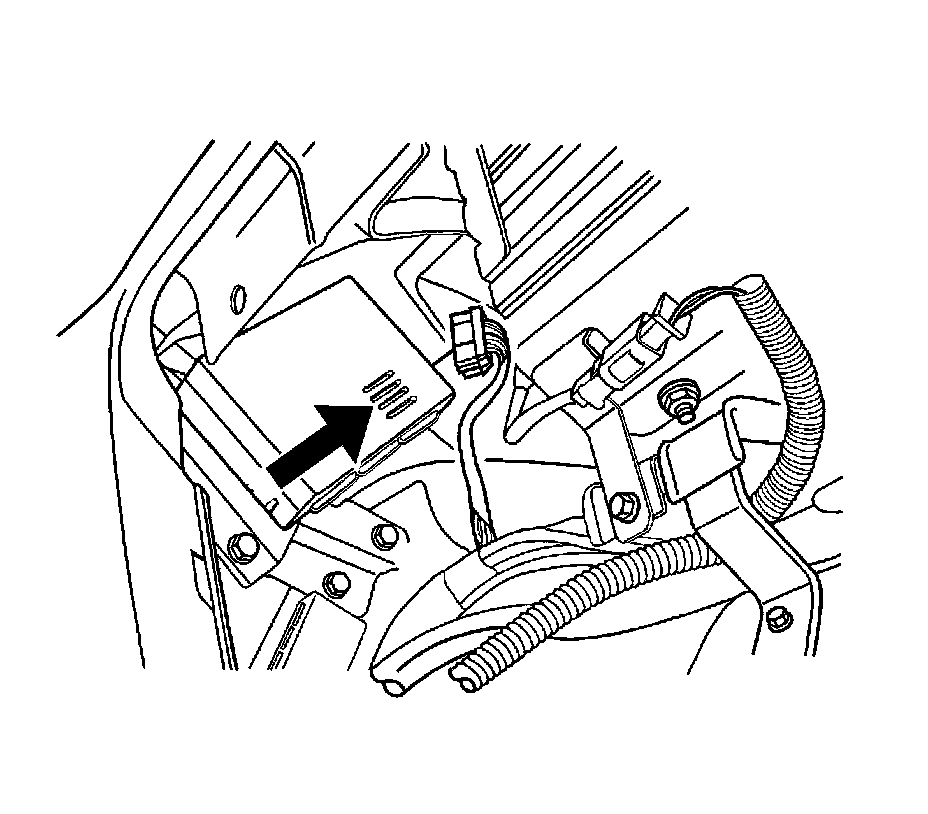

3. Slide the speed sensitive power steering (SSPS) control module off from the control module bracket.
4. Disconnect the electrical connector from the SSPS control module.

Installation Procedure




1. Connect the electrical connector to the SSPS control module.

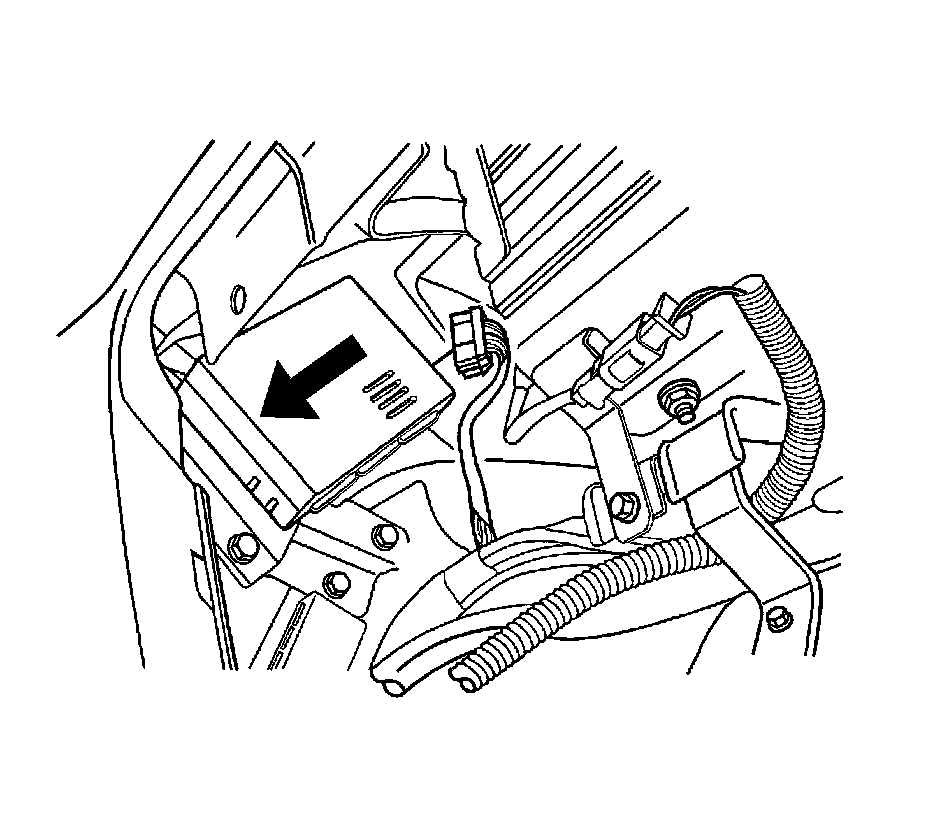

2. Slide the SSPS control module onto the SSPS control module bracket.
3. Install the ashtray.
4. Connect the negative battery cable.
