Front Frame

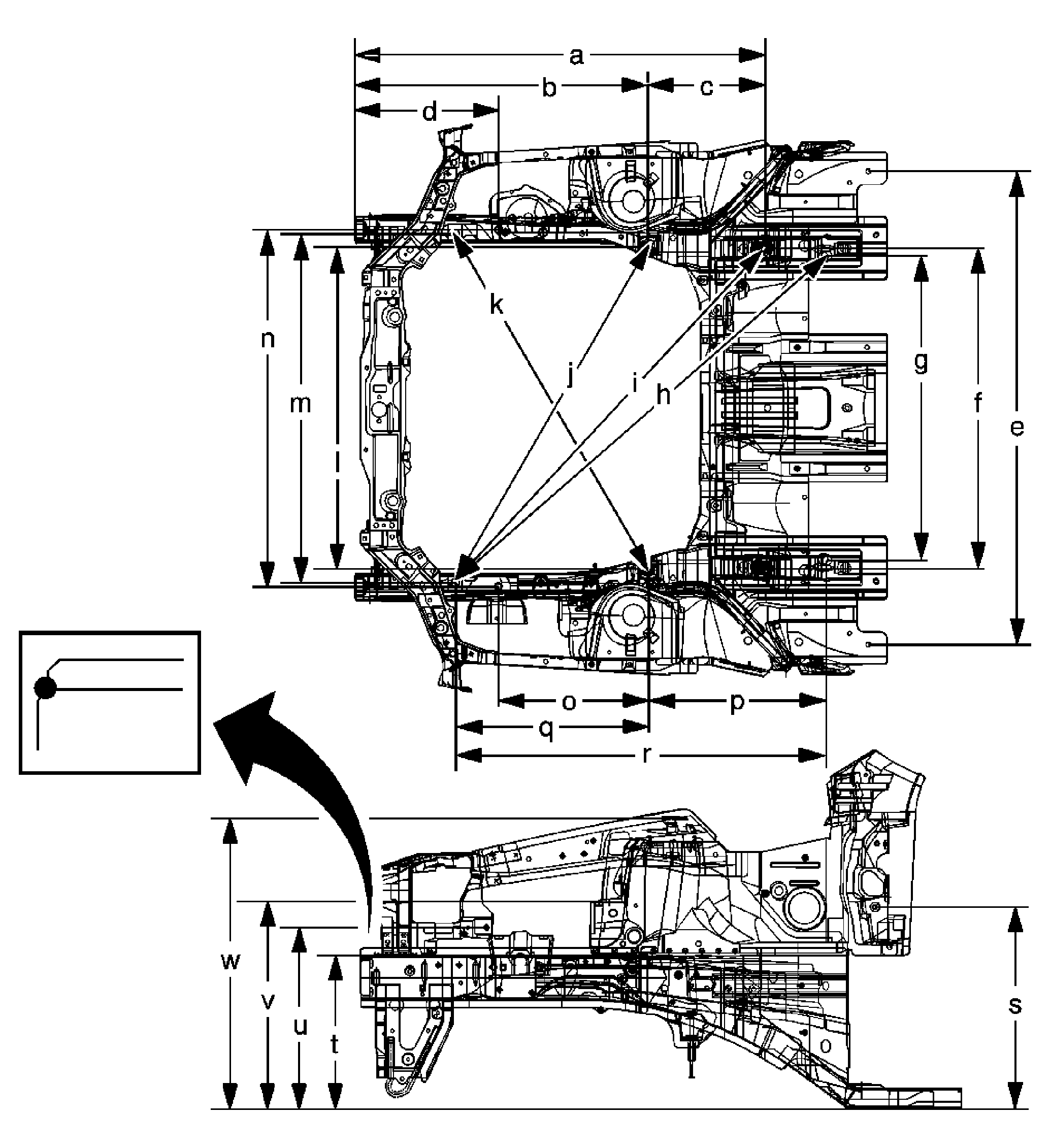

Fig 1: Identifying Front Frame Dimensions

Courtesy of GENERAL MOTORS CORP.

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	1,092	42.99
B	779	30.66
C	313	12.32
D	380	14.96
E	1,260	49.60
F	854	33.62
G	812	31.96
H	1,343	52.87
I	1,238	48.74
J	1,039	40.90
K	1,037	40.82
L	864	34.01
M	930	36.61
N	950	37.40
O	399	15.70
P	476	18.74
Q	514	20.23
R	990	38.97
S	472	18.58
T	358	14.09
U	423	16.65
V	484	19.05
W	683	26.89
