Rear Frame

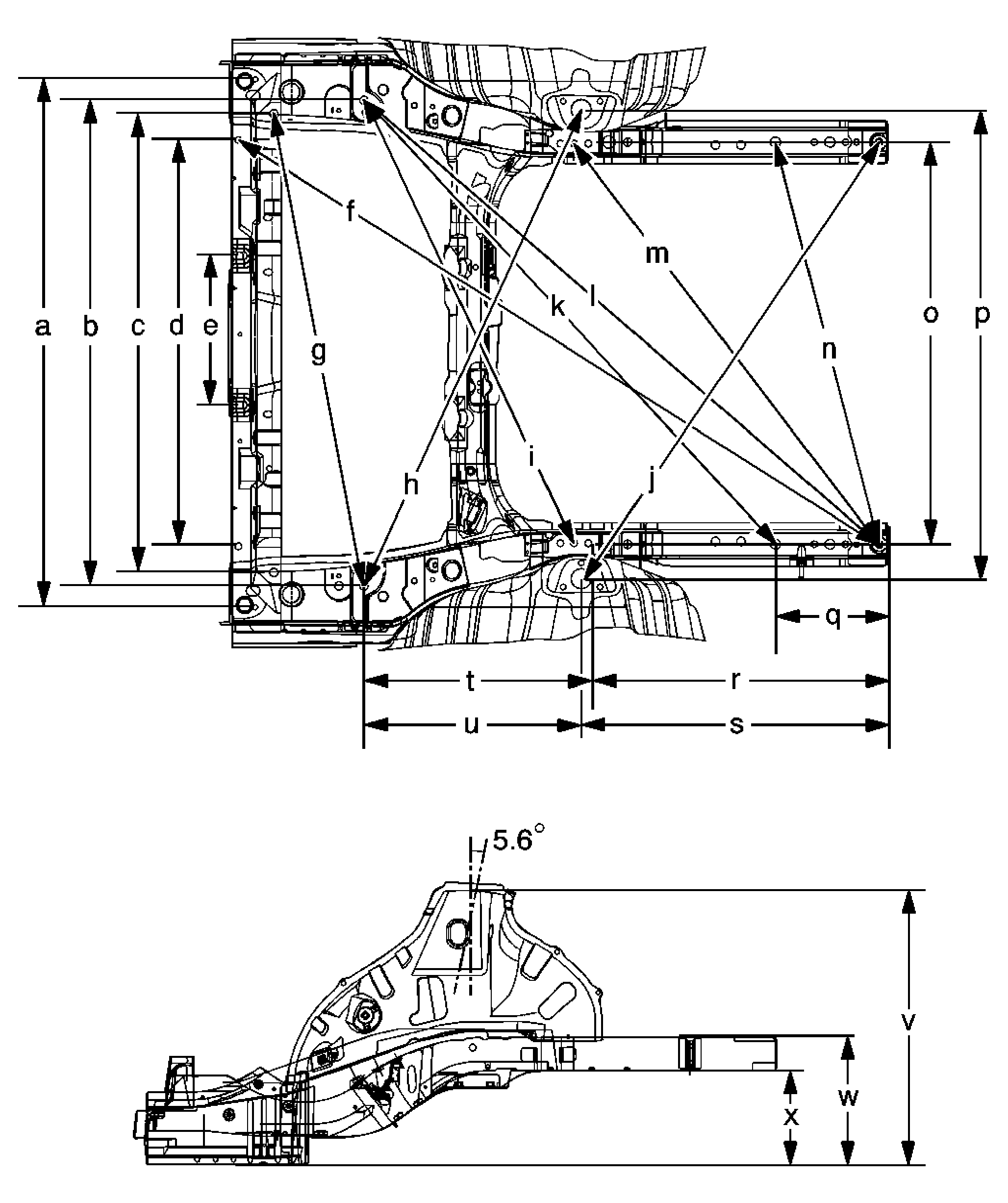

Fig 1: Identifying Rear Frame Dimensions

Courtesy of GENERAL MOTORS CORP.

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	1,260	49.60
B	1,160	45.66
C	1,096	43.15
D	970	38.18
E	356	14.01
F	1,820.9	71.68
G	1,157.9	45.58
H	1,384.9	54.52
I	1,178	46.37
J	1,318.7	51.91
K	1,454.6	57.26
L	1,639.5	64.54
M	1,213.7	47.78
N	944.4	39.15
O	960	37.79
P	1,137.4	44.78
Q	279	10.98
R	739.5	29.11
S	762	30.00
T	522.5	20.57
U	500	19.68
V	638.4	25.13
W	310.4	12.22
X	228.2	8.98
