Removal Procedure

Fig 1: View Of Drain Hose

GM1308643

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.
Remove the headliner. Refer to Headlining Trim Panel Replacement .
Remove the drain hoses.

Fig 2: View Of Sunroof Motor And Screws

GM1309162

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors.
Remove the screws and the motor.

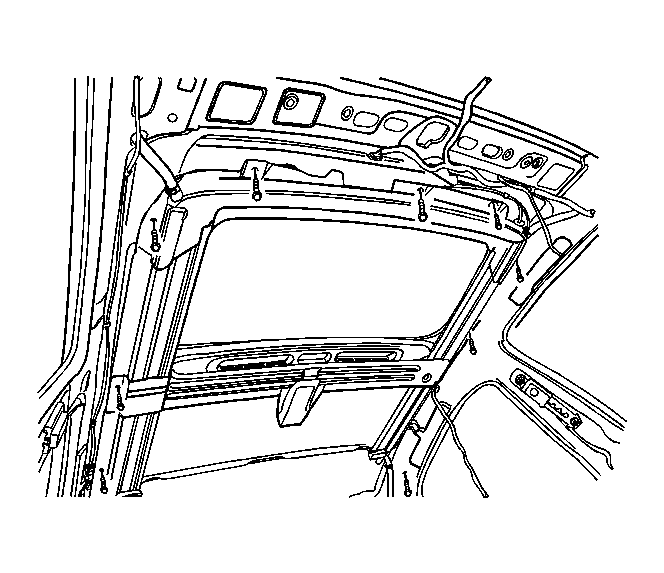

Fig 3: View Of Sunroof Housing Bolts

GM1309165

Courtesy of GENERAL MOTORS CORP.

Remove the motor control module.
Remove the bolts and the housing from the vehicle.
