Power Door Systems Connector End Views

Door Ajar Switch - Driver C1

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630063
  • 1-Way 250 Series (BK)
Pin Wire Color Circuit No. Function
1 PU 156 Courtesy Lamp Control
Door Ajar Switch - Driver C2

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630063
  • 1-Way 250 Series (BK)
Pin Wire Color Circuit No. Function
1 PU/WH 126 Driver Door Open Switch Signal
Door Ajar Switch - Passenger

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630063
  • 1-Way 250 Series (BK)
Pin Wire Color Circuit No. Function
1 PU 156 Courtesy Lamp Control
Door Ajar Switch - Rear Door

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630063
  • 1-Way 250 Series (BK)
Pin Wire Color Circuit No. Function
1 PU 156 Courtesy Lamp Control
Door Latch - Driver C1 (Actuator)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU/WH 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Latch - Driver C2 (Lock Switch)

GM1481291Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32421
  • 4-Way F Connector (GY)
Pin Wire Color Circuit No. Function
A L-GN 1370 Driver Door Lock Cylinder Signal
B WH 194 Door Unlock Control
C BK 1150 Ground
D L-BU 195 Door Lock Control
Door Latch - Left Rear C1 (Actuator)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Latch - Right Rear (Actuator)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 294 Door Lock Actuator Unlock Control
B WH 295 Door Lock Actuator Lock Control
Door Latch - Passenger - Front (Actuator)

GM68721Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 15300027
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU/WH 294 Door Lock Actuator Unlock Control
B GY 295 Door Lock Actuator Lock Control
Door Latch - Passenger - Front C2 (Tamper Switch)

GM1481291Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 32421
  • 4-Way F Connector (GY)
Pin Wire Color Circuit No. Function
A PU 1371 Passenger Door Lock Cylinder Signal
B - - Not Used
C BK 350 Ground
D - - Not Used

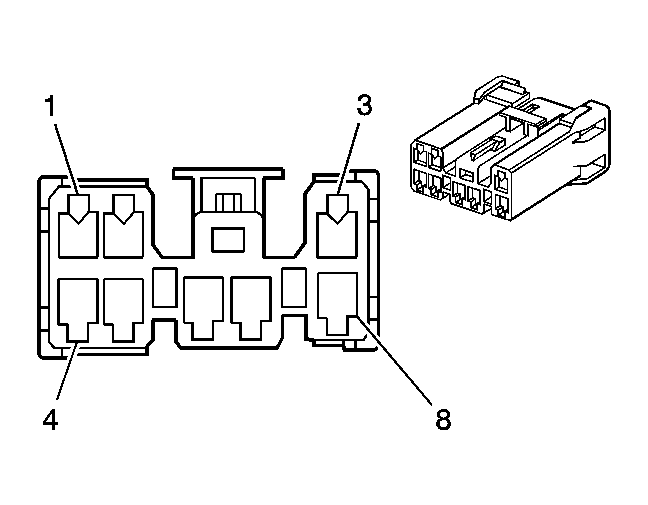

Door Lock Relay

GM1467054Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610896
  • 8-Way F PCB Connector SDL-II PCB Hsg (WH)
Pin Wire Color Circuit No. Function
1 L-GN/WH 355 Driver Door Lock Relay Lock Control (Power)
L-GN/WH 355 Driver Door Lock Relay Lock Control (w/ Car Alarm and RKE)
L-GN/WH 355 Driver Door Lock Relay Lock Control (RKE w/o Alarm)
2 GY 295 Door Lock Actuator Lock Control
3 PU 294 Door Lock Actuator Unlock Control
4 WH 194 Door Unlock Control
5 OG/BK 1340 Battery Positive Voltage
6 L-BU/BK 195 Door Lock Control (Power)
L-BU/BK 195 Door Lock Control (w/ Car Alarm and RKE)
7 YE 356 Driver Door Lock Relay Unlock Control (Power)
YE 356 Driver Door Lock Relay Unlock Control (w/ Car Alarm and RKE)
YE 356 Driver Door Lock Relay Unlock Control (RKE w/o Alarm)
8 BK 350 Ground

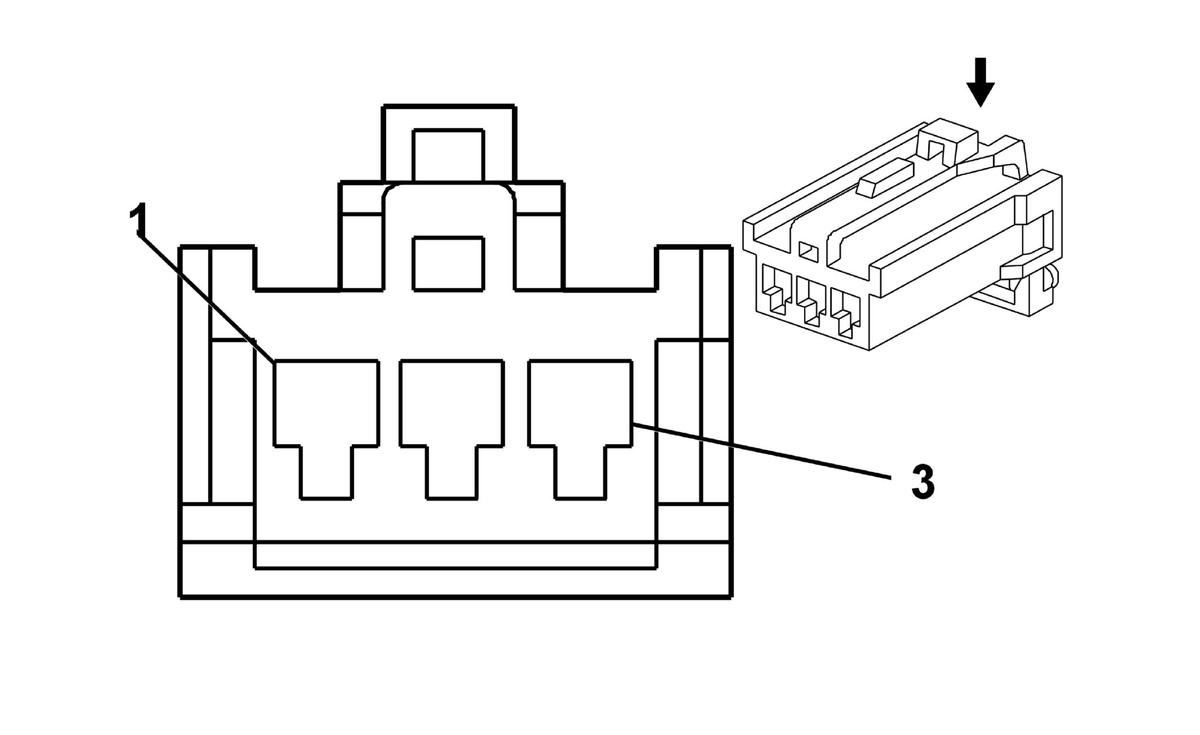

Door Lock Switch (Optional)

GM1467038Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610394
  • 3-Way F SDL Series (WH)
Pin Wire Color Circuit No. Function
1 L-GN/WH 355 Driver Door Lock Relay Lock Control
2 BK 1150 Ground
3 WH 356 Driver Door Lock Relay Unlock Control
Outside Rearview Folding Module (Optional)

GM1467054Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610896
  • 8-Way F PCB Connector SDL-II PCB Hsg (WH)
Pin Wire Color Circuit No. Function
1 GY/RD 2232 Folding Mirror Switch Signal
2 OG 640 Battery Positive Voltage
3 - - Not Used
4 BN 641 Ignition 3 Voltage
5 BK 350 Ground
6 - - Not Used
7 L-GN/BK 2331 Folding Mirror Motor Extend Control
8 BN/WH 2230 Folding Mirror Motor Retract Control
Outside Rearview Mirror Driver

GM1466974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173850-1
  • 8-Way F 070 Series Multilock Plug 8P (WH)
Pin Wire Color Circuit No. Function
1 BN/WH 2230 Folding Mirror Motor Retract Control (Optional)
2 L-GN/BK 2231 Folding Mirror Motor Extend Control (Optional)
3 OG/BK 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage (Optional)
4 GY 90 Passenger Mirror Motor Left Control
5 - - Not Used
6 WH 81 Driver Mirror Motor Right Control
7 L-GN 89 Driver Mirror Motor Up Control
8 BK 1150 Ground
Outside Rearview Mirror Passenger

GM1466974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173850-1
  • 8-Way F 070 Series Multilock Plug 8P (WH)
Pin Wire Color Circuit No. Function
1 L-GN 2231 Folding Mirror Motor Extend Control (Optional)
2 BN/WH 2230 Folding Mirror Motor Retract Control (Optional)
3 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage (Optional)
4 GY/BK 90 Passenger Mirror Motor Left Control
5 - - Not Used
6 RD/WH 881 Passenger Mirror Motor Right Control
7 PU/WH 889 Passenger Mirror Motor Down Control
8 BK 350 Ground
Outside Rearview Mirror Switch

GM1466974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 173850-1
  • 8-Way M 070 Series Multilock Plug 8P (BK)
Pin Wire Color Circuit No. Function
1 L-GN 89 Driver Mirror Motor Up Control
2 GY/BK 2232 Folding Mirror Switch (Optional)
3 PU/WH 889 Passenger Mirror Motor Down Control
4 GY 90 Passenger Mirror Motor Left Control
5 WH 81 Driver Mirror Motor Right Control
6 BK 1150 Ground
7 RD/WH 881 Passenger Mirror Motor Right Control
8 BN 141 Ignition 3 Voltage
Window Motor Driver - Front

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 D-BU 164 Power Window Motor Driver Front Up Control
2 BN 165 Power Window Motor Driver Front Down Control
Window Motor Passenger - Front

GM1467028Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610320
  • 2-Way F SWP Series (BK)
Pin Wire Color Circuit No. Function
1 D-BU 166 Power Window Motor Passenger Front Up Control
2 BN 167 Power Window Motor Passenger Front Down Control

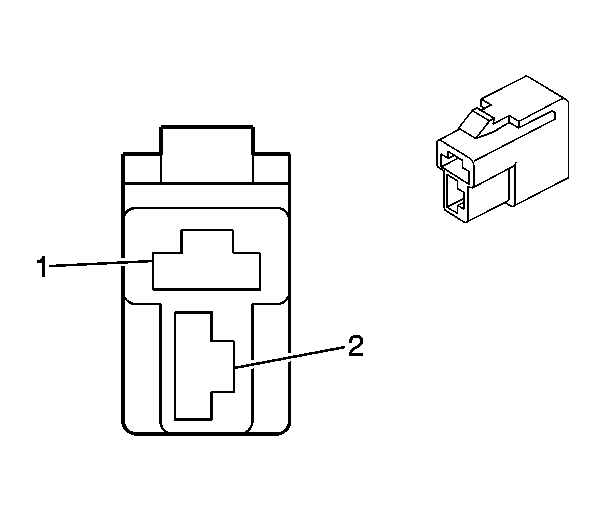

Window Motor - Left Rear

GM1500907Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174198-1
  • 2-Way M Connector (WH)
Pin Wire Color Circuit No. Function
1 D-BU 668 Power Window Motor Left Rear Up Control
2 BN 669 Power Window Motor Left Rear Down Control
Window Motor - Right Rear

GM1500907Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174198-1
  • 2-Way M Connector
Pin Wire Color Circuit No. Function
1 D-BU 670 Power Window Motor Right Rear Up Control
2 BN 671 Power Window Motor Right Rear Down Control

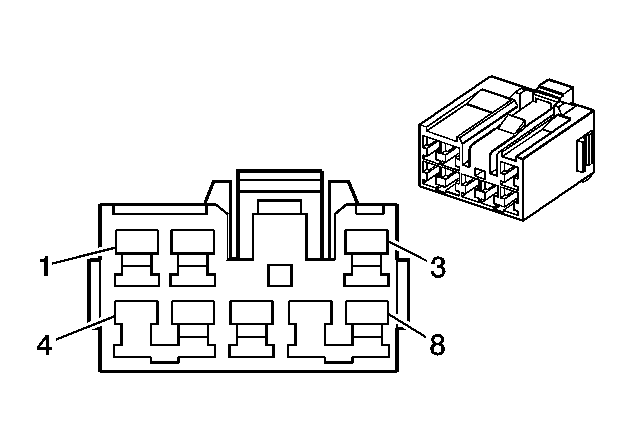

Window Switch - Driver - Front Power Only

GM1467119Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 BN 165 Power Window Motor Driver Front Down Control
2 D-BU 1307 Power Window Master Switch Lockout Control
3 L-GN 166 Power Window Master Switch Passenger Front Up Signal
4 RD 581 Power Window Master Switch Lockout Control
5 OG 580 Power Window Supply Voltage
6 D-BU 164 Power Window Motor Driver Front Up Control
7 BK 1150 Ground
8 PU 167 Power Window Master Switch Passenger Front Down Signal

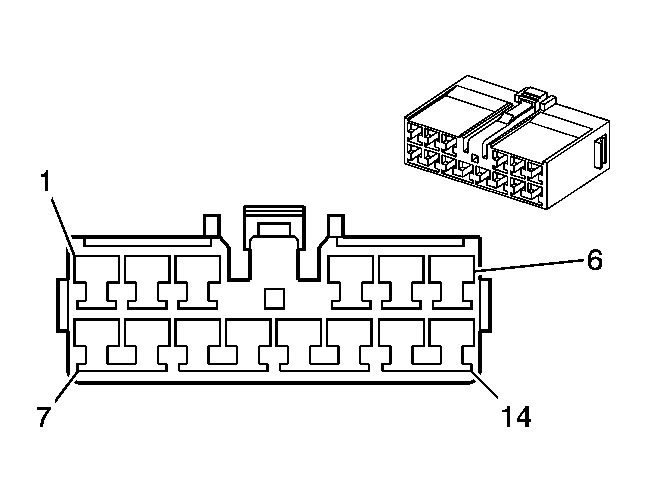

Window Switch - Driver - Front/Rear Power

GM1467129Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651110
  • 14-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 BN 165 Power Window Motor Driver Front Down Control
2 D-BU 164 Power Window Motor Driver Front Up Control
3 RD 581 Power Window Master Switch Lockout Control
4 L-BU 166 Power Window Master Switch Passenger Front Up Signal
5 - - Not Used
6 PU 167 Power Window Master Switch Passenger Front Down Signal
7 D-BU 1307 Power Window Master Switch Lockout Control
8 PU/RD 169 Power Window Master Switch Lockout Control
9 - - Not Used
10 OG 580 Power Window Supply Voltage
11 BK 1150 Ground
12 D-GN 168 Power Window Master Switch Left Rear Up Signal
13 PU/WH 171 Power Window Master Switch Right Rear Down Signal
14 L-GN 170 Power Window Master Switch Right Rear Up Signal
Window Switch - Left Rear

GM1467119Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 BN 669 Power Window Motor Left Rear Down Control
2 - - Not Used
3 D-BU 668 Power Window Motor Left Rear Up Control
4 PU 169 Power Window Master Switch Left Rear Down Signal
5 - - Not Used
6 D-BU 1307 Power Window Master Switch Lockout Control
7 BK 1250 Ground
8 D-GN 168 Power Window Master Switch Left Rear Up Signal
Window Switch - Right Front

GM1467119Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 BN 667 Power Window Motor Right Rear Up Control
2 - - Not Used
3 D-BU 666 Power Window Motor Passenger Front Up Control
4 PU 167 Power Window Master Switch Passenger Front Down Signal
5 - - Not Used
6 D-BU 1307 Power Window Master Switch Lockout Control
7 BK 350 Ground
8 D-GN 166 Power Window Master Switch Passenger Front Up Signal
Window Switch - Right Rear

GM1467119Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 651050
  • 8-Way F 090-II Series (WH)
Pin Wire Color Circuit No. Function
1 BN 669 Power Window Motor Right Rear Down Control
2 - - Not Used
3 D-BU 668 Power Window Motor Right Rear Up Control
4 PU 169 Power Window Master Switch Right Rear Down Signal
5 - - Not Used
6 D-BU 1307 Power Window Master Switch Lockout Control
7 BK 1250 Ground
8 D-GN 168 Power Window Master Switch Right Rear Up Signal
