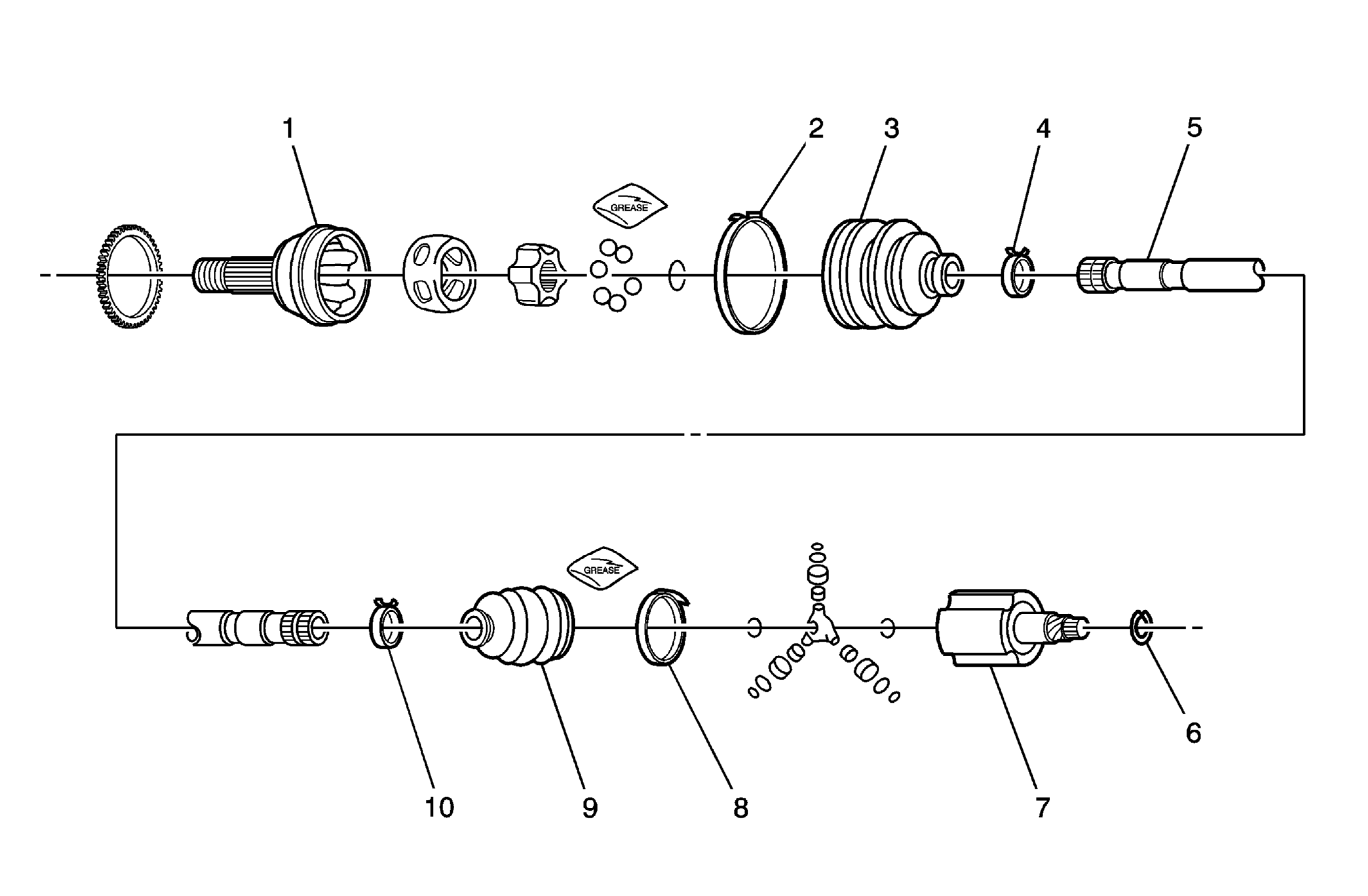

Front Drive Axle Disassembled Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
C/V Joint |
| 2 |
Seal Retaining Clamp |
| 3 |
Drive Axle Outboard Seal |
| 4 |
Seal Retaining Clamp |
| 5 |
Axle Shaft |
| 6 |
Snap Ring |
| 7 |
Tripot Housing |
| 8 |
Seal Retaining Clamp |
| 9 |
Drive Axle Inboard Seal |
| 10 |
Seal Retaining Clamp |

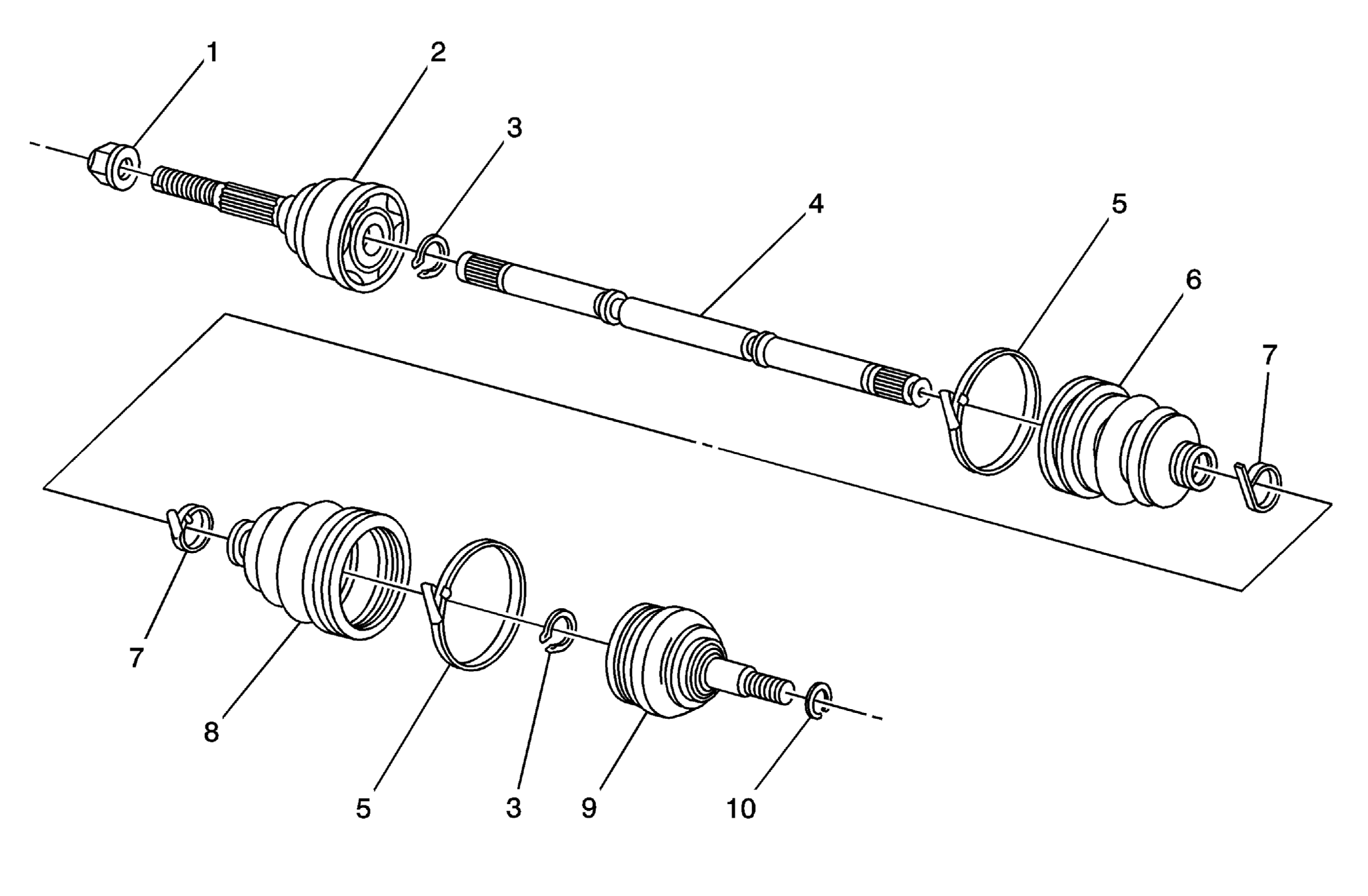

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Caulking Nut |
| 2 |
C/V Joint |
| 3 |
Race Retaining Ring |
| 4 |
Axle Shaft |
| 5 |
Seal Retaining Clamp |
| 6 |
Drive Axle Outboard Seal |
| 7 |
Seal Retaining Clamp |
| 8 |
Drive Axle Inboard Seal |
| 9 |
Cross Groove Joint |
| 10 |
Retaining Ring |
