SIR Component Views

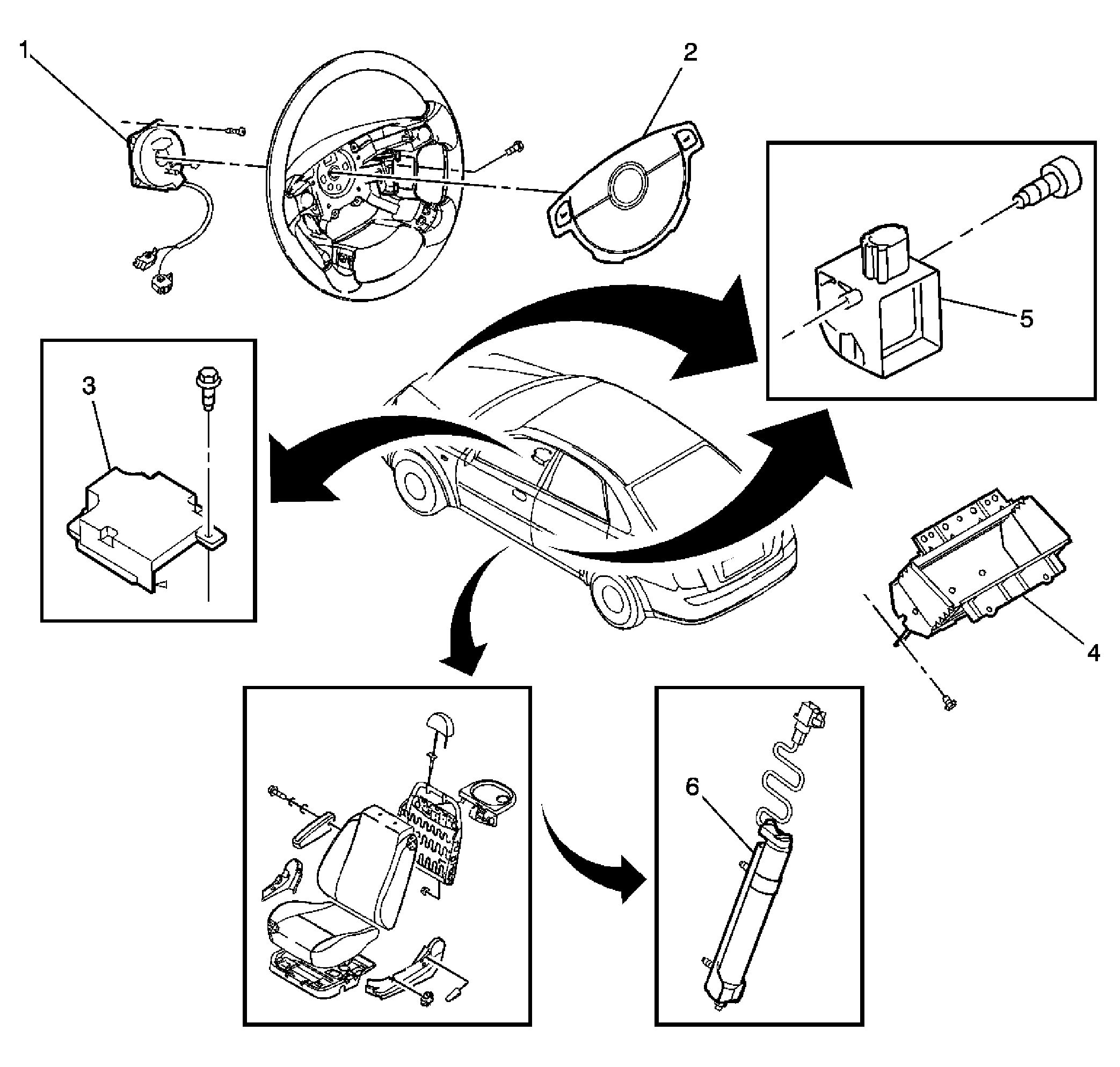

Fig 1: Identifying SIR Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Inflatable Restraint Steering Wheel Module
3	Inflatable Restraint Sensing and Diagnostic Module (SDM)
4	Passenger Airbag Module
5	Inflatable Restraint Side Impact Sensor (SIS) - Driver, Passenger or Inflatable Restraint Front End Discriminating Sensor - Right or Left
6	Side Airbag Module

Fig 2: View Of Seat Belt Switch And Seat Belt Pretensioner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch
2	Seat Belt Pretensioner - Driver and Passenger
