Installation Procedure

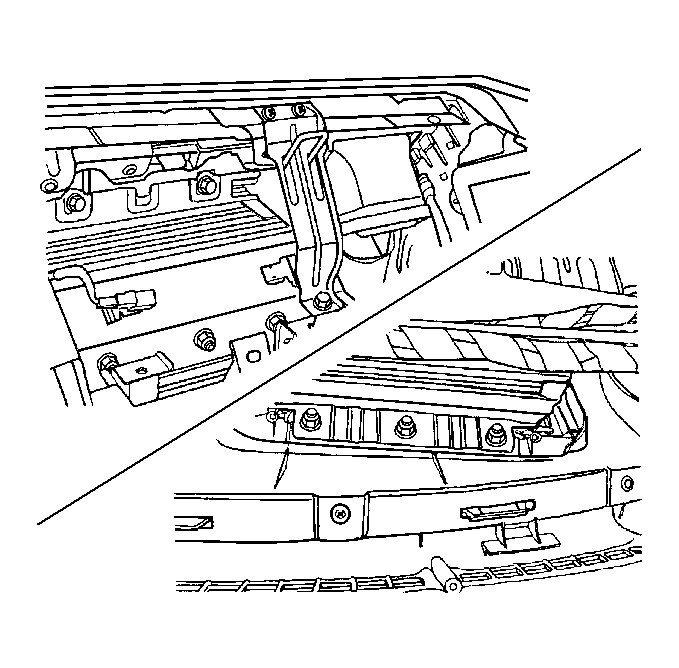

    Fig 1: View Of Side Air Bag Module
    GM1308843Courtesy of GENERAL MOTORS CORP.
  1. Install the passenger air bag module to the instrument panel (I/P).
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the passenger air bag module mounting bolts.

    Tighten:  Tighten the passenger air bag module mounting bolts to 11 N.m (97 lb in)  .

  3. Connect the passenger air bag yellow electrical connector.
  4. Install the glove box. Refer to Instrument Panel Storage Compartment Replacement in Instrument Panel, Gauges, and Console.
  5. Connect the negative battery cable.
