Lighting Systems Connectors

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
Ambient Light Sensor

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 605 5 Volt Reference
B WHT 278 Ambient Light Sensor Signal
Backup Lamp - Left

GM306266Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089347
  • Lamp Socket Type B1 Right Angle (NAT)
Pin Wire Color Circuit No. Function
A LT GRN 24 Backup Lamp Supply Voltage
G BLK 1350 Ground
Backup Lamp - Right

GM306266Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089347
  • Lamp Socket Type B1 Right Angle (NAT)
Pin Wire Color Circuit No. Function
A LT GRN 24 Backup Lamp Supply Voltage
G BLK 1450 Ground
Center High Mounted Stop Lamp (CHMSL)

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A WHT 17 Stop Lamp Switch Signal
B BLK 1350 Ground
Courtesy Lamp - Left

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F M/P 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B WHT 156 Courtesy Lamp Switch Signal
Courtesy Lamp - Right

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way F 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B WHT 156 Courtesy Lamp Switch Signal
Courtesy/Reading Lamp - Center

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B WHT 156 Courtesy Lamp Switch Signal
C BLK 1350 Ground
Courtesy/Reading Lamp - Front

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way Metri-Pack Series 150
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B WHT 156 Courtesy Lamp Switch Signal
C BLK 1350 Ground
Daytime Running Lamps (DRL) Diode

GM35456Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A YEL 634 DRL Diode Supply Voltage
B WHT 815 DRL Diode Signal

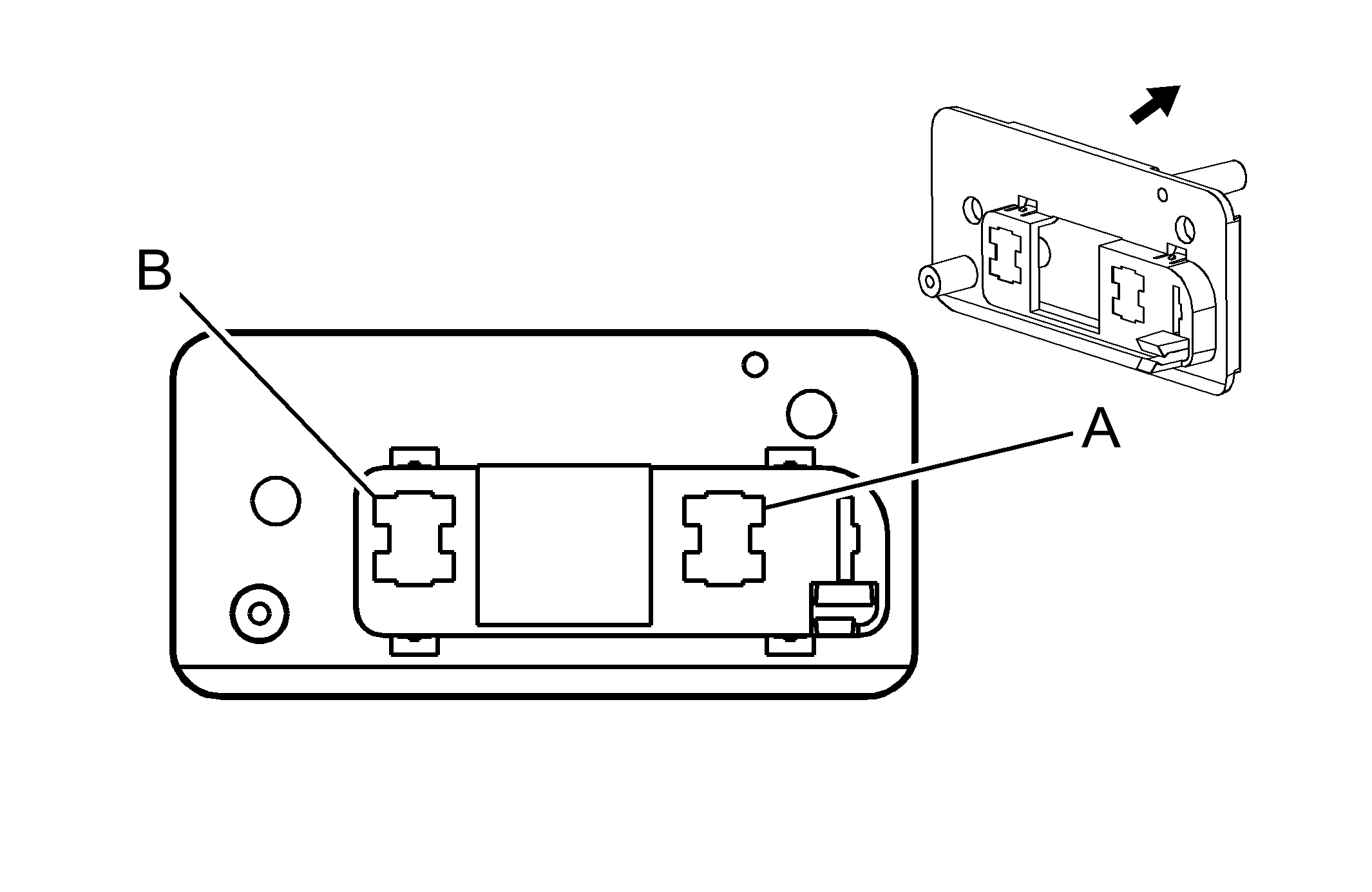

Dome Lamp - Rear

GM68722Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15528758
  • 2-Way Dome Lamp Base (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B WHT 156 Courtesy Lamp Switch Signal
Headlamp - LH (Base w/Sealed Beam)

GM306269Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034372
  • 3-Way F Metri-Pack Series 800 (BLK)
Pin Wire Color Circuit No. Function
A YEL 712 Left Headlamp Supply Voltage
B PNK 1200 Headlamp High Beam Signal
C DK BLU 1201 Headlamp Low Beam Signal
Headlamp - High Beam - Left

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059183
  • 2-Way F Metri- Pack Series 280 Sealed (BLK)
Pin Wire Color Circuit No. Function
A PNK 1200 Headlamp High Beam Signal
B YEL 712 Left Headlamp Supply Voltage
Headlamp - High Beam - Right

GM684797Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059183
  • 2-Way F Metri- Pack 280 Series, Sealed (BLK)
Pin Wire Color Circuit No. Function
A PNK 1200 Headlamp High Beam Signal
B TAN/WHT 312 Right Headlamp Supply Voltage
Headlamp - Low Beam - Left

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059181
  • 2-Way F Metri-Pack Series 280 Sealed (MD GRY)
Pin Wire Color Circuit No. Function
A DK BLU 1201 Headlamp Low Beam Signal
B YEL 712 Left Headlamp Supply Voltage
Headlamp - Low Beam - Right

GM684796Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059181
  • 2-Way F Metri-Pack Series 280 Sealed (MD GRY)
Pin Wire Color Circuit No. Function
A DK BLU 1201 Headlamp Low Beam Signal
B TAN/WHT 312 Right Headlamp Supply Voltage
Headlamp - RH (Base w/Sealed Beam)

GM306269Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034372
  • 3-Way F Metri-Pack Series 800 (BLK)
Pin Wire Color Circuit No. Function
A TAN/WHT 312 Right Headlamp Supply Voltage
B PNK 1200 Headlamp High Beam Signal
C DK BLU 1201 Headlamp Low Beam Signal
Headlamp and Panel Dimmer Switch

GM362755Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304617
  • 10-Way F Metri-Pack Junction Systems (BLK)
Pin Wire Color Circuit No. Function
A BRN 9 Park Lamp Supply Voltage
B ORN 240 Battery Positive Voltage
C WHT 352 Headlamp Relay Coil Supply Voltage
D ORN 1840 Battery Positive Voltage
E BLK 750 Ground
F - - Not Used
G DK BLU/WHT 1495 Courtesy Lamps On Signal
H PPL/WHT 549 Headlamp Switch Headlamps Off Signal
J PPL 328 Interior Lamp Defeat Switch Signal
K DK GRN 44 Instrument Panel Lamps Dimmer Switch Signal
I/P Compartment Lamp

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B BLK 1050 Ground
License Lamp

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • W-2 Lamp Socket Wedge Base (LT GRY)
Pin Wire Color Circuit No. Function
A BRN 9 Park Lamp Supply Voltage
B BLK 1450 Ground
Marker Lamp - LF

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • W-2 Lamp Socket Wedge Base (LT GRY)
Pin Wire Color Circuit No. Function
A LT BLU 14 Left Turn Signal Lamps Supply Voltage (W/O VE1)
BLK 250 Ground (W/VE1)
B BRN 9 Park Lamp Supply Voltage
Marker Lamp - LR

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • W-2 F Lamp Socket Wedge Base (LT GRY)
Pin Wire Color Circuit No. Function
A BRN 9 Park Lamp Supply Voltage
B BLK 1350 Ground
Marker Lamp - RF

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • W-2 Lamp Socket Wedge Base (LT GRY)
Pin Wire Color Circuit No. Function
A DK BLU 15 Right Turn Signal Lamps Supply Voltage (W/O VE1)
BLK 350 Ground (W/VE1)
B BRN 9 Park Lamp Supply Voltage
Marker Lamp - RR

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • W-2 F Lamp Socket Wedge Base (LT GRY)
Pin Wire Color Circuit No. Function
A BRN 9 Park Lamp Supply Voltage
B BLK 1450 Ground
Park/Turn Signal Lamp - LF

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160395
  • Lamp Socket Wedge Base W3 Right Angle (MD GRY)
Pin Wire Color Circuit No. Function
A LT BLU 14 Left Turn Signal Lamps Supply Voltage
B BRN 9 Park Lamp Supply Voltage
G BLK 250 Ground
Park/Turn Signal Lamp - LF - Export

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160395
  • Lamp Socket Wedge Base W3 Right Angle (MD GRY)
Pin Wire Color Circuit No. Function
A LT BLU 14 Left Turn Signal Lamps Supply Voltage
B DK BLU 914 Left Front Turn Signal Lamp Supply Voltage
G BLK 250 Ground
Park/Turn Signal Lamp - RF

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160395
  • Lamp Socket Wedge Base W3 Right Angle (MD GRY)
Pin Wire Color Circuit No. Function
A DK BLU 15 Right Turn Signal Lamps Supply Voltage
B BRN 9 Park Lamp Supply Voltage
G BLK 350 Ground
Park/Turn Signal Lamp - RF - Export

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160395
  • Lamp Socket Wedge Base W3 Right Angle (MD GRY)
Pin Wire Color Circuit No. Function
A DK BLU 15 Right Turn Signal Lamps Supply Voltage
B LT BLU 915 Right Front Turn Signal Lamp Supply Voltage
G BLK 350 Ground
Repeater Lamp - Left - Export

GM258174Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12010973
  • 2-Way M Weather Pack (BLK)
Pin Wire Color Circuit No. Function
A BLK 250 Ground
B LT BLU 14 Left Turn Signal Lamps Supply Voltage
Repeater Lamp - Right - Export

GM258174Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12010973
  • 2-Way M Weather Pack (BLK)
Pin Wire Color Circuit No. Function
A BLK 350 Ground
B DK BLU 15 Right Turn Signal Lamps Supply Voltage
Stepwell Lamp - Right

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B WHT 156 Courtesy Lamp Switch Signal
Stop Lamp Switch

GM62424Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040551
  • 6-Way F Metri-pack 480 Series (BLK)
Pin Wire Color Circuit No. Function
A WHT 17 Stop Lamp Switch Signal
B ORN 140 Battery Positive Voltage
C PPL 420 TCC Brake Switch/Cruise Control Release Signal
PPL 420 TCC Brake Switch/Cruise Control Release Signal
D BRN 441 Ignition 3 Voltage
BRN 441 Ignition 3 Voltage
E DK GRN/WHT 1135 A/T Shift Lock Control Solenoid Supply Voltage
F LT GRN 275 Park Neutral Position Switch Park Signal
Tail/Stop and Turn Signal Lamp - Left

GM306271Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089345
  • Lamp Socket C2 Base (LT GRY)
Pin Wire Color Circuit No. Function
A YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
B BRN 9 Park Lamp Supply Voltage
G BLK 1350 Ground
Tail/Stop and Turn Signal Lamp - Right

GM306271Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089345
  • Lamp Socket C2 Base (LT GRY)
Pin Wire Color Circuit No. Function
A DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
B BRN 9 Park Lamp Supply Voltage
G BLK 1450 Ground
Tail/Stop Lamp - Left - Export

GM306271Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089345
  • Lamp Socket C2 Base (LT GRY)
Pin Wire Color Circuit No. Function
A WHT 17 Stop Lamp Switch Signal
B BRN 9 Park Lamp Supply Voltage
G BLK 1350 Ground
Tail/Stop Lamp - Right - Export

GM306271Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089345
  • Lamp Socket C2 Base (LT GRY)
Pin Wire Color Circuit No. Function
A WHT 17 Stop Lamp Switch Signal
B BRN 9 Park Lamp Supply Voltage
G BLK 1450 Ground
Turn Signal Lamp - LR - Export

GM306266Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089347
  • Lamp Socket Type B1 Right Angle
Pin Wire Color Circuit No. Function
A LT BLU 14 Left Turn Signal Lamps Supply Voltage
G BLK 1350 Ground
Turn Signal Lamp - RR - Export

GM306266Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12089347
  • Lamp Socket Type B1 Right Angle
Pin Wire Color Circuit No. Function
A DK BLU 15 Right Turn Signal Lamps Supply Voltage
G BLK 1450 Ground
Vanity Mirror Lamp - Left

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B BLK 750 Ground
Vanity Mirror Lamp- Right

GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047663
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A ORN 1732 Courtesy Lamps Supply Voltage
B BLK 750 Ground
scientia non olet · About LEMON Manuals
