Engine Block and Components

Disassembled Views

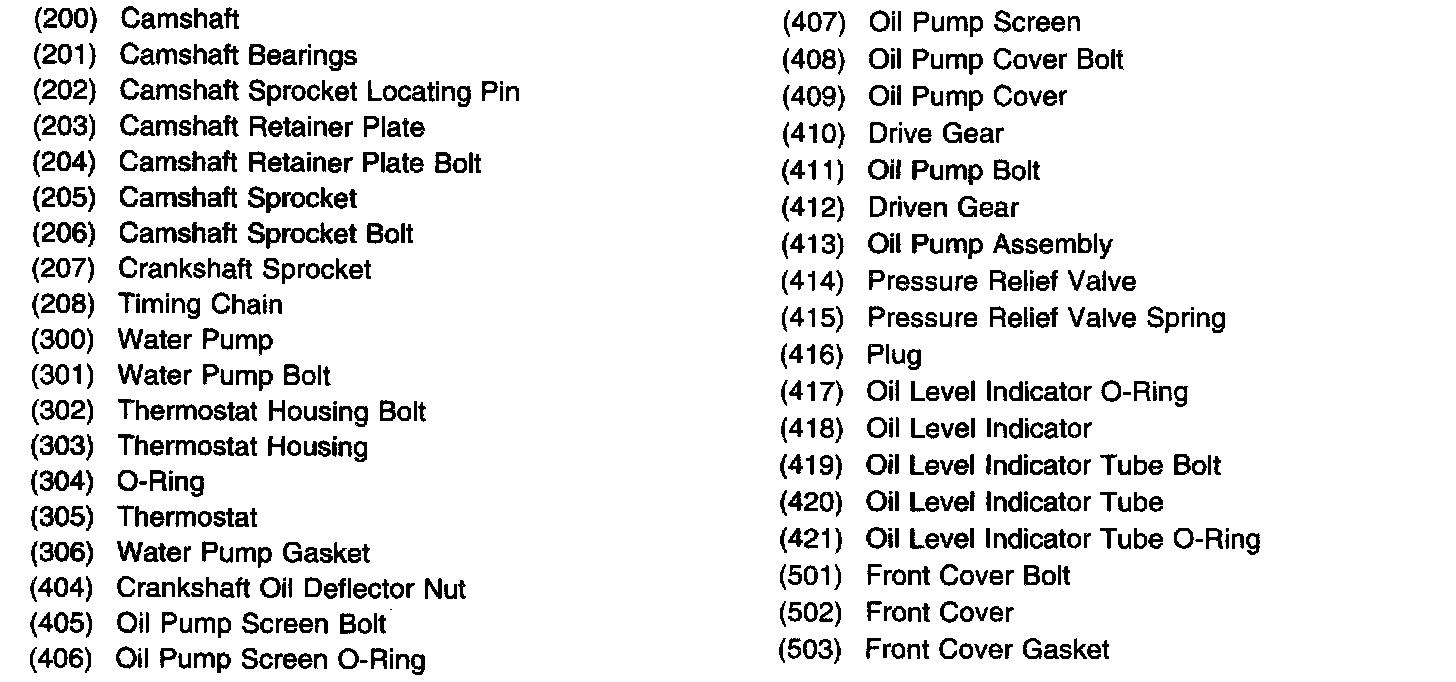

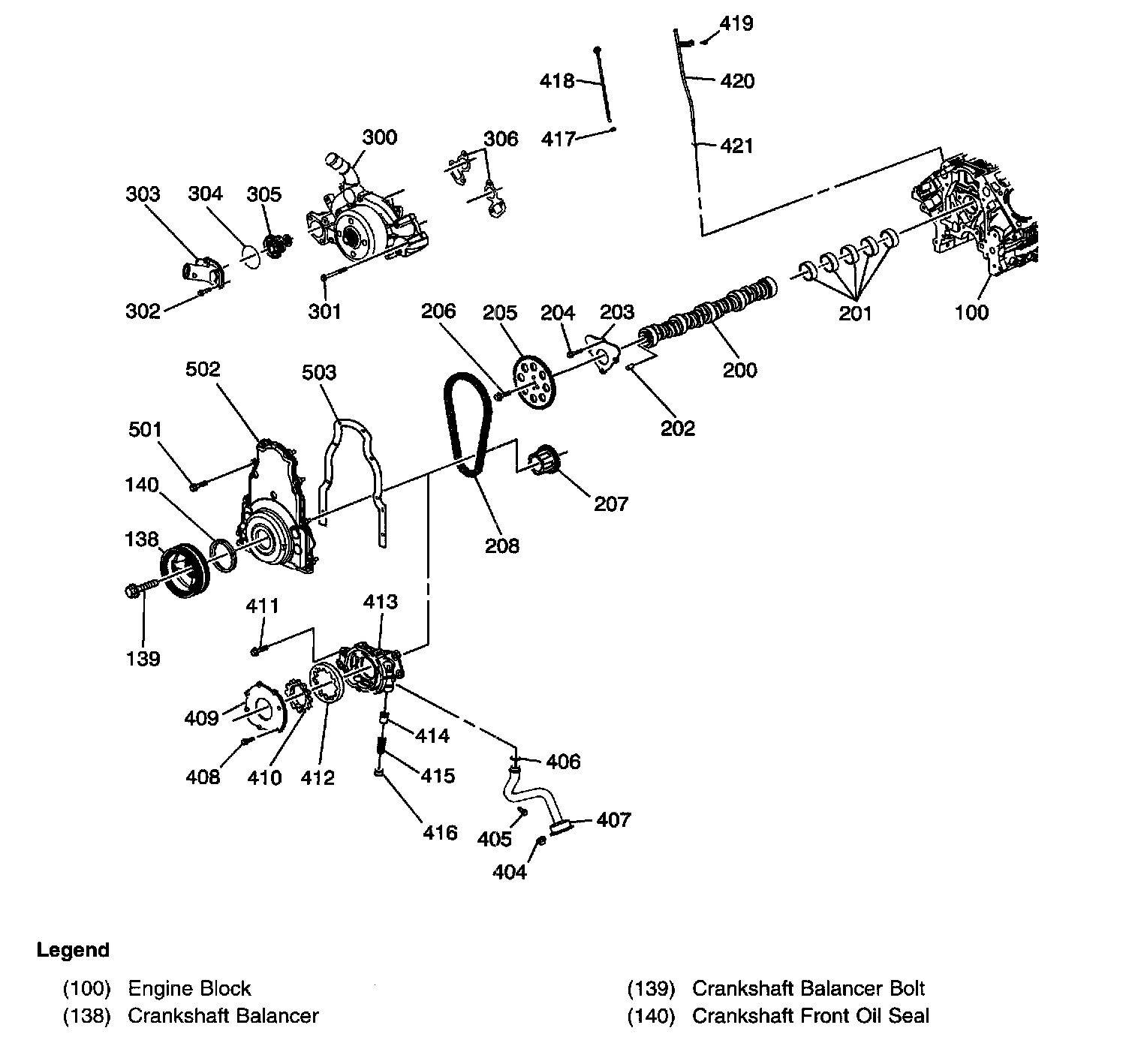

Front of Engine

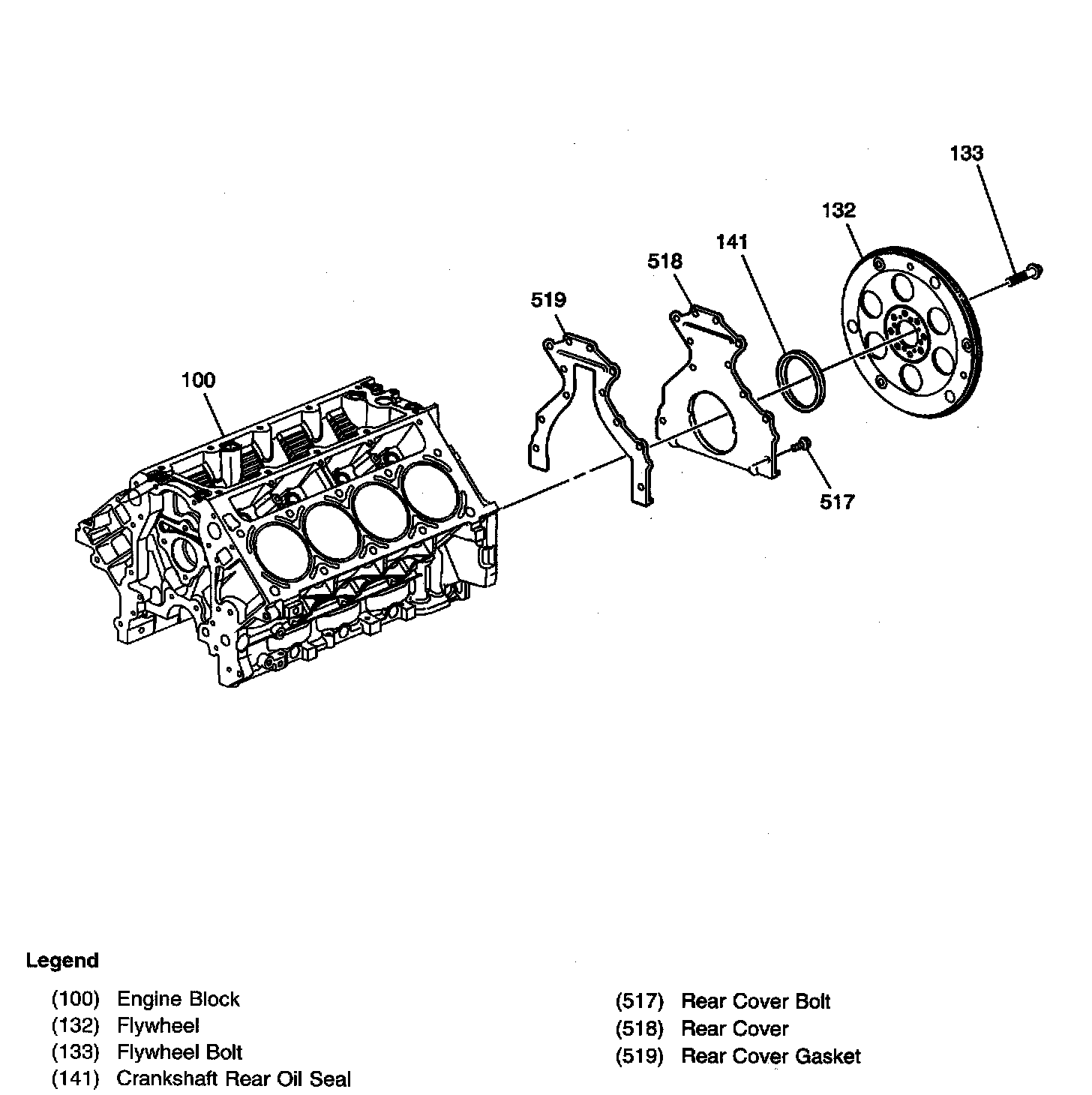

Rear of Engine

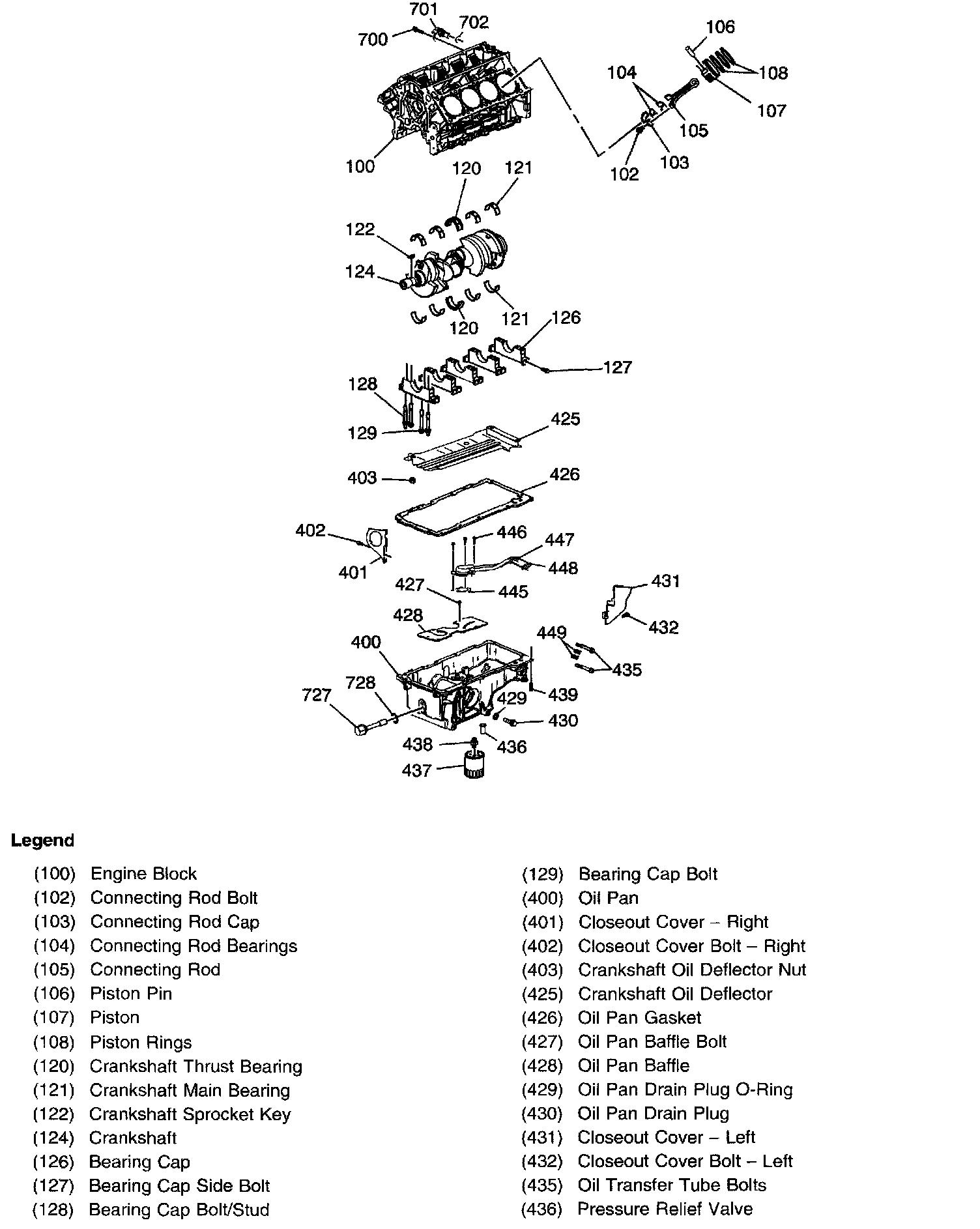

Lower Engine Assembly

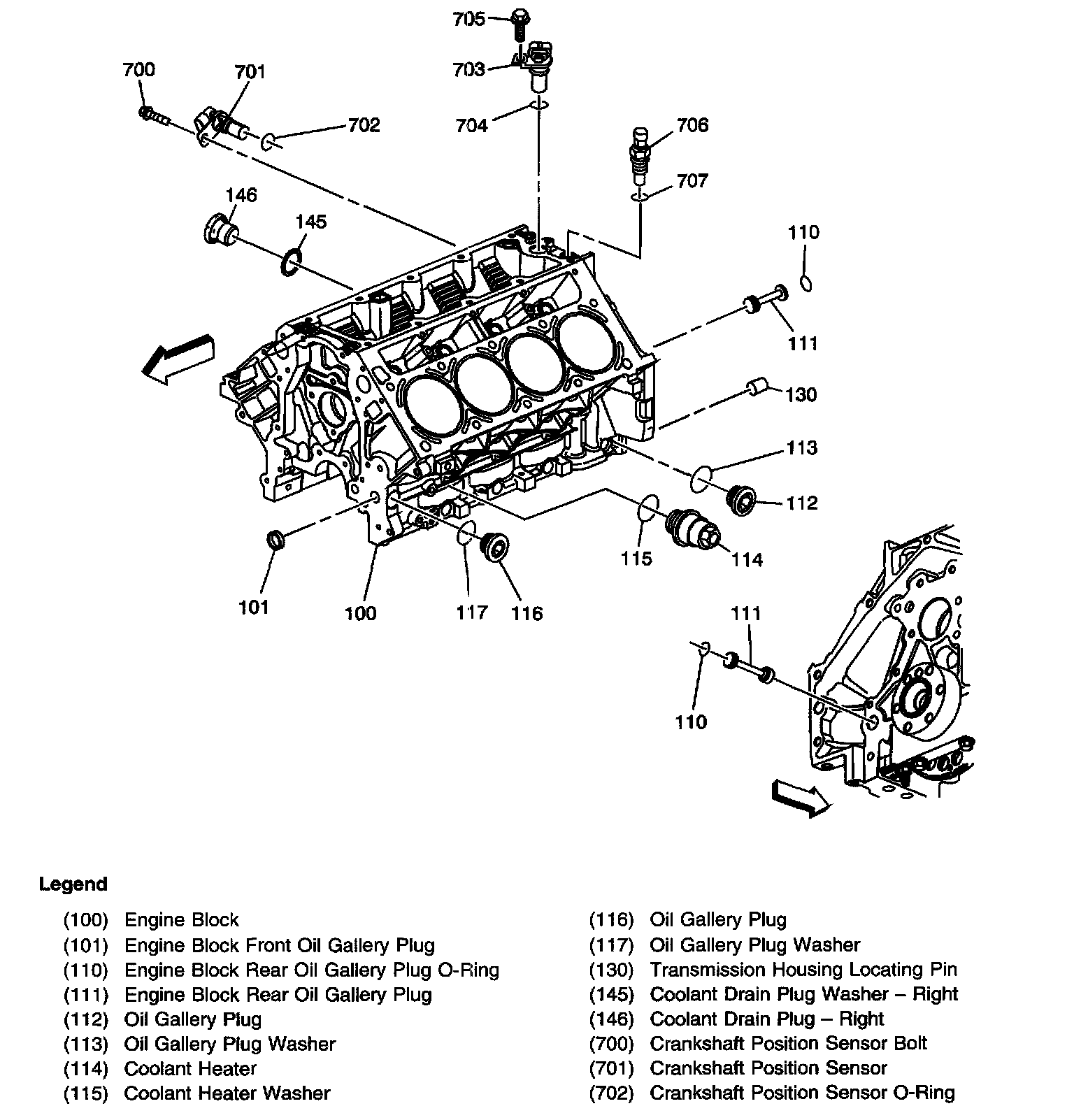

Engine Block Plugs/Sensors
