Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.
Ambient Light Sensor Terminal Identification

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A WH 278 Ambient Light Sensor Signal
B BK 279 Ambient Light Sensor Low Reference
Backup Lamp Terminal Identification - Left

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160392
  • 3-Way F Lamp Socket Components, Bulb Bases, Type C-2, Right Angle (GY)
Pin Wire Color Circuit No. Function
A L-GN 24 Backup Lamp Supply Voltage
B - - Not Used
G BK 1550 Ground
Backup Lamp Terminal Identification - Right

GM95769Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160392
  • 3-Way F Lamp Socket Components, Bulb Bases, Type C-2, Right Angle (GY)
Pin Wire Color Circuit No. Function
A L-GN 24 Backup Lamp Supply Voltage
B - - Not Used
G BK 1550 Ground
Center High Mounted Stop Lamp (CHMSL) Terminal Identification

GM900247Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15358845
  • 2-Way F GT 150 Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A YE 820 CHMSL Supply Voltage
B BK 1550 Ground
DRL Diode (D300) Terminal Identification

GM808706Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064749
  • 2-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A OG 840 Battery Positive Voltage
OG 840 Battery Positive Voltage
B YE 634 DRL Relay Coil Supply Voltage
Fog Lamp Terminal Identification - LF

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124819
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamp Supply Voltage
B BK 350 Ground
Fog Lamp Terminal Identification - RF

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124819
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 34 Fog Lamp Supply Voltage
B BK 350 Ground
Headlamp Terminal Identification - Left High Beam

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336116
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
1 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
2 BK 350 Ground
Headlamp Terminal Identification - Left Low Beam

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124819
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A YE 712 Left Headlamp Low Beam Supply Voltage
B BK 350 Ground
Headlamp Terminal Identification - Right High Beam

GM1341464Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336116
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
1 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
2 BK 250 Ground
Headlamp Terminal Identification - Right Low Beam

GM808661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124819
  • 2-Way F Metri-Pack 280 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A TN/WH 312 Right Headlamp Low Beam Supply Voltage
B BK 250 Ground
Headlamp Switch Terminal Identification

GM684891Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • IL-AG5-18S-D3C1
  • 18-Way F (GN)
Pin Wire Color Circuit No. Function
1 GY 705 5-Volt Reference
2-3 - - Not Used
4 BK 2250 Ground
5-6 - - Not Used
7 OG 192 Front Fog Lamp Switch Signal
8 GY/BK 308 Park Lamp Switch On Signal
9 OG/BK 2090 Instrument Panel Lamp Dimming Control
10 GY/BK 2226 Instrument Panel Lamp Dimming Switch Low Reference
11 - - Not Used
12 BN/WH 230 Instrument Panel Lamp Dimming Control
13 PU 34 Front Fog Lamp Supply Voltage
14-15 - - Not Used
16 BK 2250 Ground
17 WH 103 Headlamp Switch On Signal
18 - - Not Used
I/P Compartment Lamp Terminal Identification

GM82383Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A OG 1732 Inadvertent Courtesy Lamp Supply Voltage
B BK 2250 Ground
Inside Rearview Mirror Terminal Identification - DJ2

GM850873Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 936163-2
  • 10-Way F 2x5, 0.64 mm Unsealed (BK)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 BK 1450 Ground
4 GY 1690 Automatic Day/Night Mirror Signal
5 OG 3140 Battery Positive Voltage
6 PK 639 Ignition 1 Voltage
7 L-GN 24 Backup Lamp Supply Voltage
8 GY/BK 690 Courtesy Lamp Supply Voltage
9 PK 1691 Automatic Day/Night Mirror Low Reference
10 - - Not Used

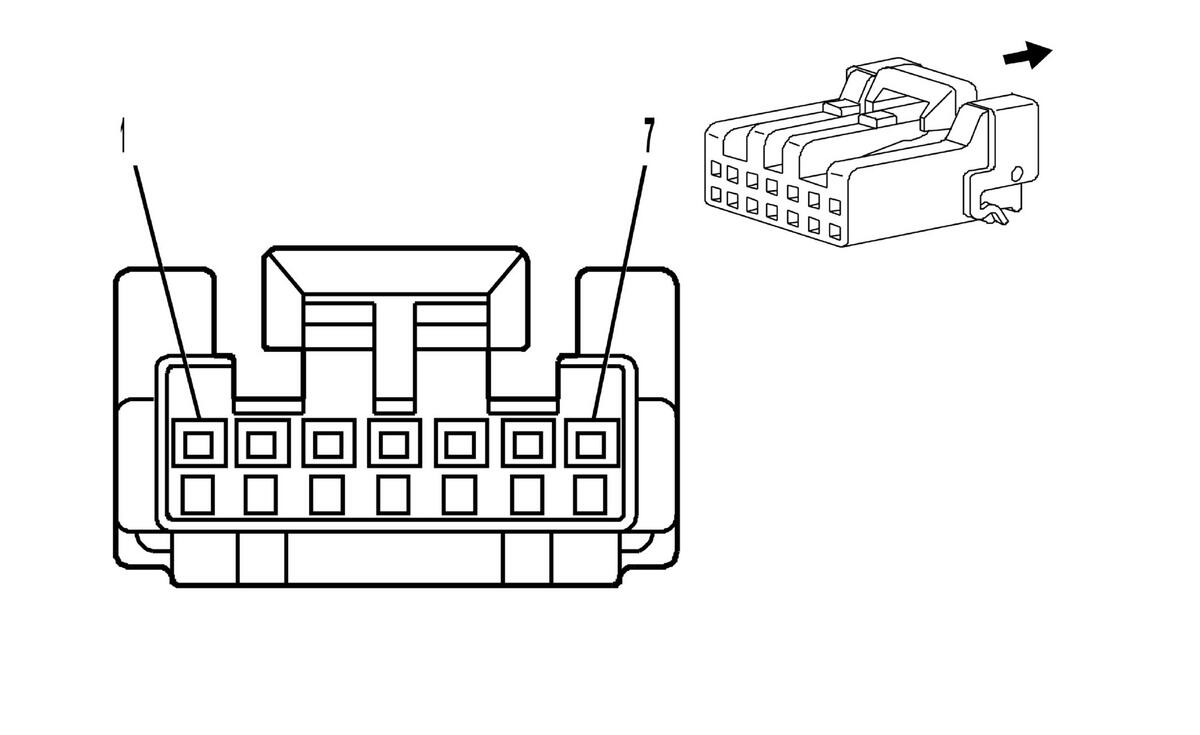

Inside Rearview Mirror Terminal Identification - W/O DJ2

GM826267Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • VHR-7N-BK
  • 7-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 OG 1732 Inadvertent Power Courtesy Lamp
3-5 - - Not Used
6 GY/BK 690 Courtesy Lamp Supply Voltage
7 BK 1450 Ground
License Lamp Terminal Identification - Left

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Lamp Socket Wedge Base W2 (L-GY)
Pin Wire Color Circuit No. Function
A BN 2509 Rear Park Lamps Supply Voltage
B BK 1550 Ground
License Lamp Terminal Identification - Right

GM744036Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110053
  • 2-Way F Lamp Socket Wedge Base W2 (L-GY)
Pin Wire Color Circuit No. Function
A BN 2509 Rear Park Lamps Supply Voltage
B BK 1550 Ground
Marker Lamp Terminal Identification - LF

GM1283850Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • E3550-000
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 2309 Front Park Lamps Supply Voltage
2 L-BU 2114 Left Turn Signal Lamps Supply Voltage
Marker Lamp Terminal Identification - LR

GM1283850Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • E3550-000
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 2509 Left Rear Park Lamps Supply Voltage
2 BK 1550 Ground
Marker Lamp Terminal Identification - RF

GM1283850Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • E3550-000
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN 2309 Front Park Lamps Supply Voltage
2 D-BU 2115 Right Turn Signal Lamps Supply Voltage
Marker Lamp Terminal Identification - RR

GM1283850Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • E3550-000
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
1 BN/WH 2609 Right Rear Park Lamps Supply Voltage
2 BK 1550 Ground
Park/Turn Signal Lamp Terminal Identification - LF

GM684807Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A L-BU 2114 Left Turn Signal Lamps Supply Voltage
B BN 2309 Front Park Lamps Supply Voltage
C BK 350 Ground
Park/Turn Signal Lamp Terminal Identification - RF

GM684807Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110293
  • 3-Way F Metri-Pack 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 2115 Right Turn Signal Lamps Supply Voltage
B BN 2309 Front Park Lamps Supply Voltage
C BK 250 Ground
Stop Lamp Switch Terminal Identification

GM62424Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040551
  • 6-Way F Metri-Pack 480 Series (BK)
Pin Wire Color Circuit No. Function
A WH 17 Stop Lamp Switch Signal
WH 17 Stop Lamp Switch Signal
B OG 1540 Battery Positive Voltage
C PU 420 Torque Converter Clutch Brake Switch Signal
D PK 639 Run/Crank Ignition 1 Voltage
E D-GN/WH 1135 Brake Transmission Shift Interlock Solenoid Supply Voltage
D-GN/WH 1135 Brake Transmission Shift Interlock Solenoid Supply Voltage
F L-GN/BK 584 Brake Transmission Shift Interlock Switch Supply Voltage
Tail/Stop and Turn Signal Lamp Terminal Identification - Left

GM1283128Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ZFI-00701-UA
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 1550 Ground
2 BN 2509 Left Rear Park Lamps Supply Voltage
3 YE/BK 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage
Tail/Stop and Turn Signal Lamp Terminal Identification - Right

GM1283128Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • ZFI-00701-UA
  • 3-Way F (BK)
Pin Wire Color Circuit No. Function
1 BK 1550 Ground
2 BN/WH 2609 Right Rear Park Lamps Supply Voltage
3 D-GN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage
Turn Signal/Hazard Flasher Module Terminal Identification

GM1385119Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15359360
  • 10-Way F Metri-Pack Mixed Series (GY)
Pin Wire Color Circuit No. Function
A L-GN 1427 Right Turn Signal Switch Signal
B WH 17 Stop Lamp Switch Signal
C YE 18 Left Rear Stop/Turn Lamp Supply Voltage
D D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
E BK 2250 Ground
F D-GN 1428 Left Turn Signal Switch Signal
G WH 111 Hazard Switch Signal
H YE 685 Left Turn Lamp Supply Voltage
J TN 686 Right Turn Lamp Supply Voltage
K OG 140 Battery Positive Voltage
Turn Signal/Multifunction Switch C1 Terminal Identification

GM39746Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064862
  • 8-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A L-GN 1427 Right Turn Signal Switch Signal
B PK 639 Ignition 1 Voltage
C D-GN 1428 Left Turn Signal Switch Signal
D BK 58 Right Cornering Lamp Supply Voltage
E BN 2309 Front Park Lamps Supply Voltage
F - - Not Used
G BK/YE 28 Horn Relay Control
H WH 111 Hazard Switch Signal
Turn Signal/Multifunction Switch C2 Terminal Identification

GM130718Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059800
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A TN 1851 Ground
B YE/BK 307 Headlamp Switch Flash to Pass Signal
C L-GN 11 Headlamp Dimmer Switch Signal
D-E - - Not Used
Turn Signal/Multifunction Switch C3 Terminal Identification

GM811190Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15339058
  • 7-Way F Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function
G - - Not Used
H PK 94 Windshield Wiper Switch Signal 1
J GY 478 Windshield Wiper Switch Supply Voltage
K D-BU/WH 477 Windshield Wiper Switch High Signal
L-N - - Not Used
Turn Signal/Multifunction Switch C4 (w/K34) Terminal Identification

GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047786
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 341 Ignition 3 Voltage
B GY/WH 397 Cruise Control On Switch Signal
C GY/BK 87 Cruise Control Resume/Accel Switch Signal
D D-BU 84 Cruise Control Set/Coast Switch Signal
Vanity Mirror Lamp Terminal Identification - LF

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 1450 Ground
B OG 1732 Inadvertent Courtesy Lamp Supply Voltage
C - - Not Used
Vanity Mirror Lamp Terminal Identification - RF

GM333035Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047781
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 1450 Ground
B OG 1732 Inadvertent Courtesy Lamp Supply Voltage
C - - Not Used
scientia non olet · About LEMON Manuals
