SIR Component Views

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.

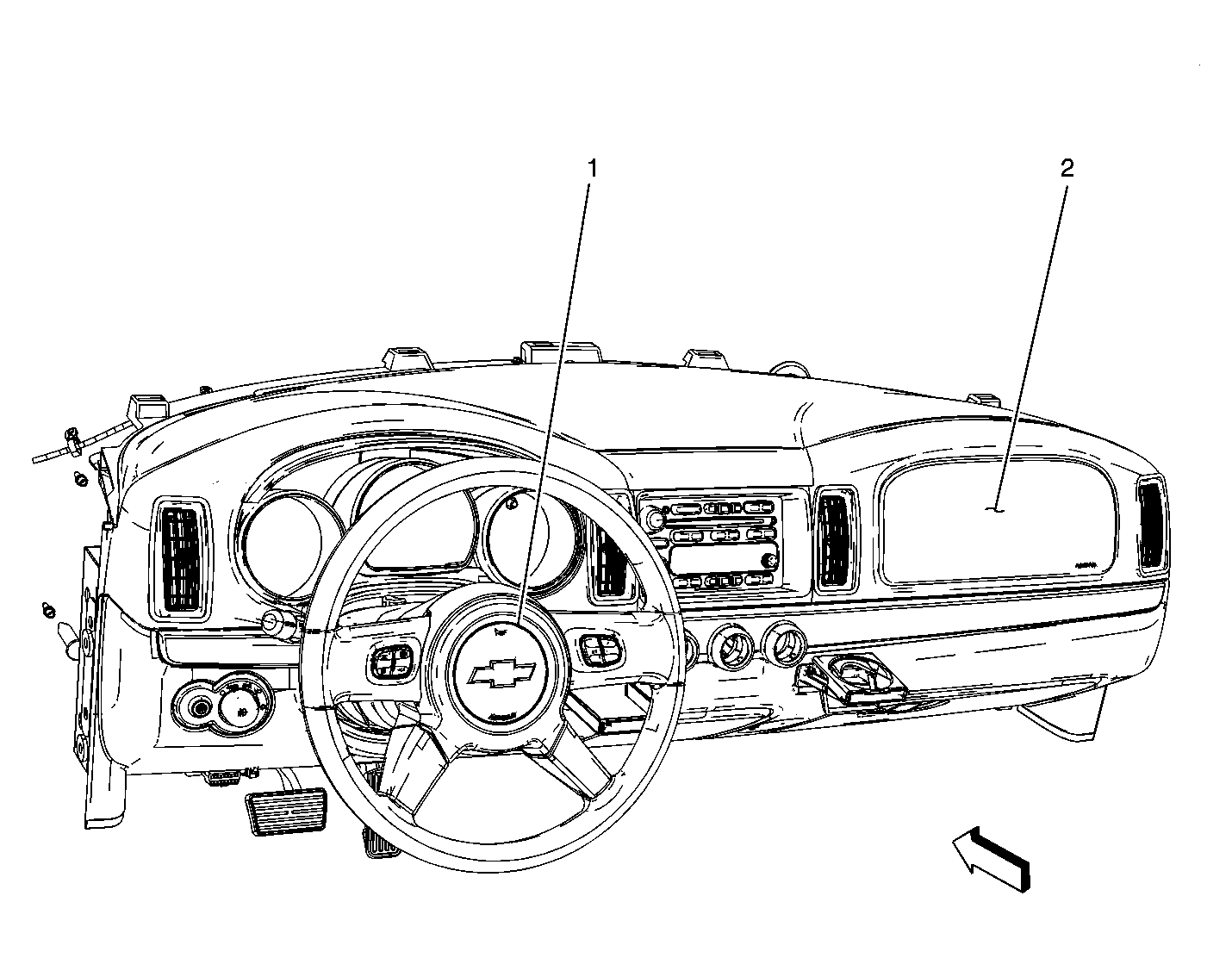

Fig 1: Inflatable Restraint Steering Wheel and I/P Module Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint I/P Module

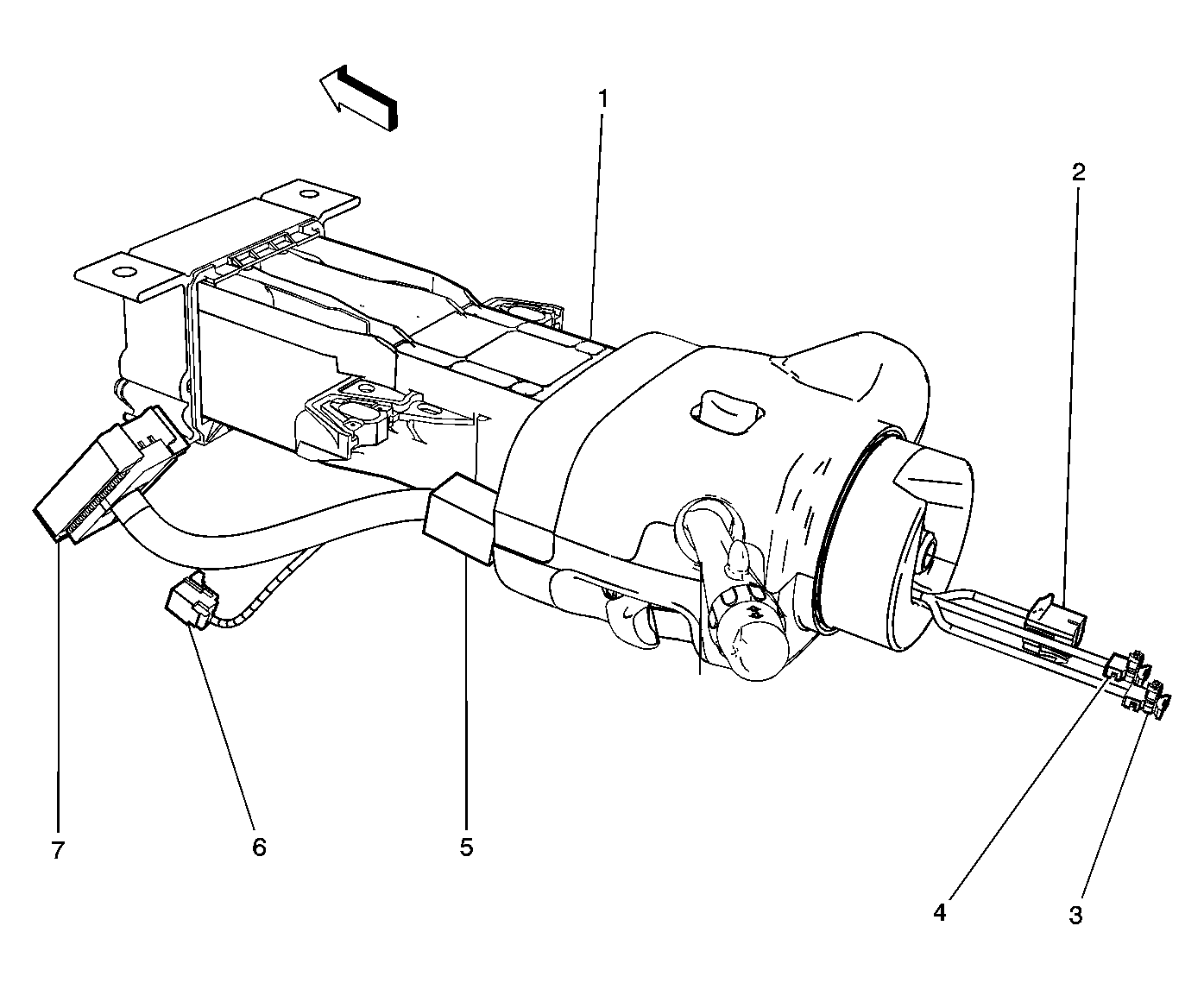

Fig 2: Steering Column Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Column
2	C277
3	Inflatable Restraint Steering Wheel Module C2
4	Inflatable Restraint Steering Wheel Module C1
5	Steering Column Fuse Holder
6	C275
7	C201

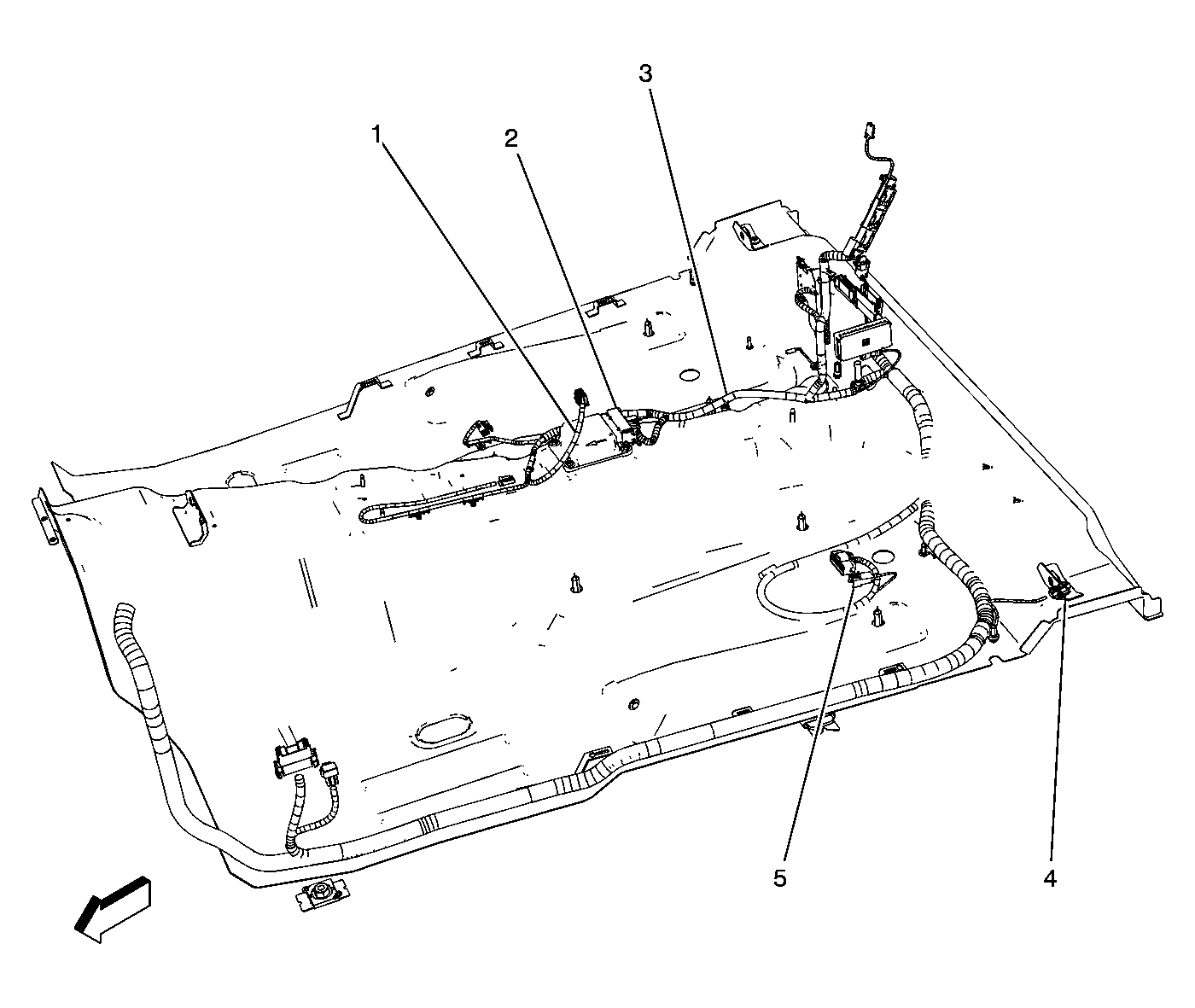

Fig 3: SDM and Sensors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
3	I/P Harness
4	Seat Belt Pretensioner - Left Connector
5	Inflatable Restraint Side Impact Module - Left Connector

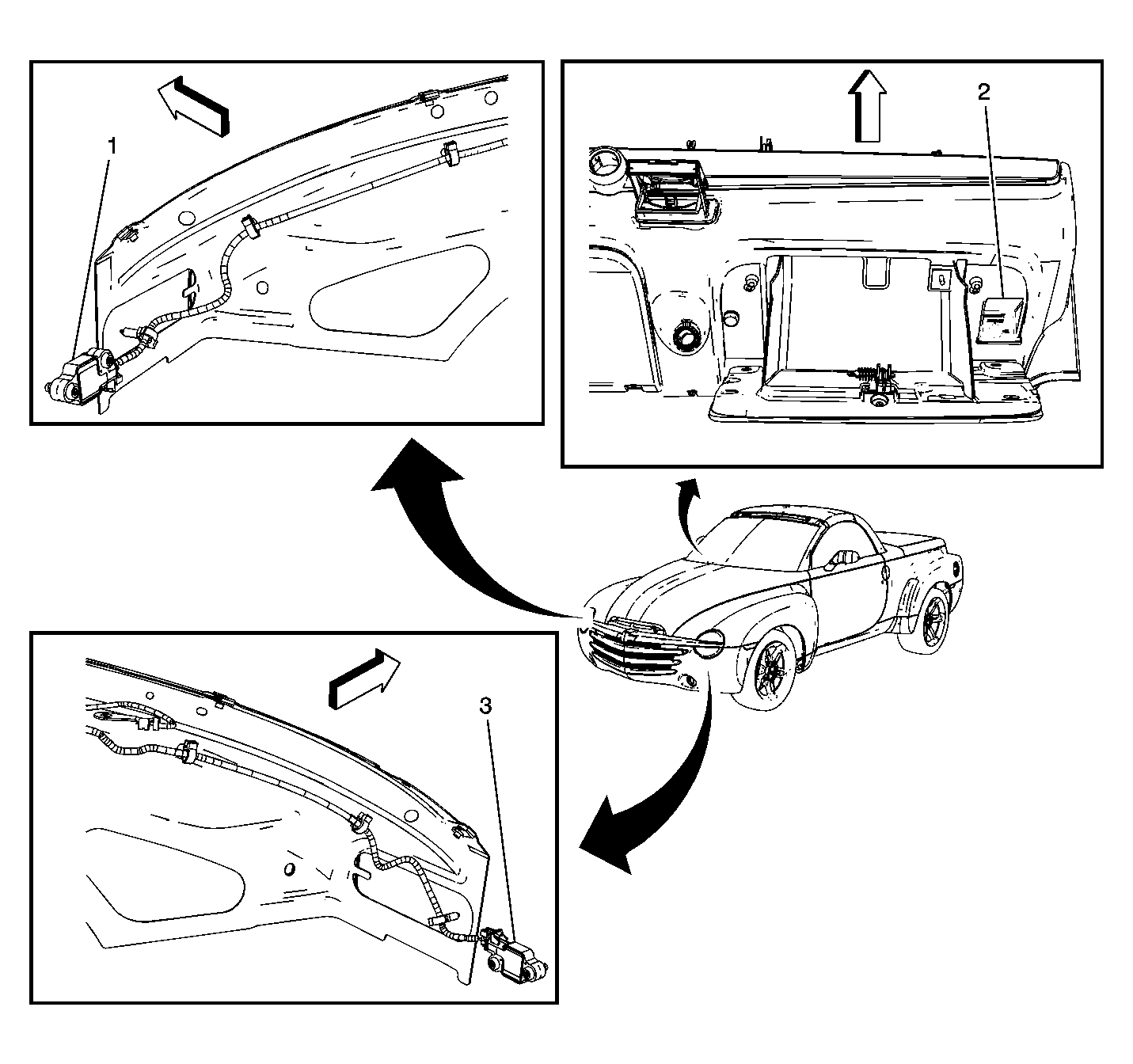

Fig 4: Disable Switch and Front Sensors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Frontal Sensor (EFS) - Right
2	Inflatable Restraint I/P Module Disable Switch
3	Electronic Frontal Sensor (EFS) - Left

Fig 5: Driver Seat UP Level Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left
2	C300
3	S325
4	S324
5	S315
6	S313
7	S314
8	Seat Adjuster Switch - Driver Connector C1
9	Seat Adjuster Switch - Driver Connector C2
10	Seat Adjuster Switch - Driver
11	Lumbar Motor - Driver Connector

Fig 6: Driver Seat Base Level Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Motor - Driver Connector
2	C300
3	Seat Belt Switch - Driver Connector
4	Inflatable Restraint Seat Position Sensor (SPS) - Left Connector
5	C313
6	Seat Adjuster Switch - Driver Connector C1,C2
7	Seat Adjuster Switch - Driver

Fig 7: Passenger Seat Components Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Adjuster Switch - Passenger Connector C2
2	Seat Adjuster Switch - Passenger Connector C1
3	Heated Seat Switch - Passenger Connector
4	C314
5	Inflatable Restraint Seat Position Sensor (SPS) - Right Connector
6	Seat Belt Switch - Passenger Connector
7	Heated Seat Element - Passenger Connector
8	Inflatable Restraint Side Impact Module - Right
9	Seat Adjuster Switch - Passenger

Fig 8: Driver Door Components (Premium Radio)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Speaker - LF Door Midrange
3	S501
4	C500
5	C501
6	S500
7	Outside Rearview Mirror - Driver
8	Speaker - LF Door
9	S502
10	Window Motor - Driver
11	Inflatable Restraint Side Impact Sensor (SIS) - Left
12	Door Latch Assembly - Driver

Fig 9: Passenger Door Components (Premium Radio)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Midrange
2	Door Latch Assembly - Passenger
3	Passenger Door
4	Inflatable Restraint Side Impact Sensor (SIS) - Right
5	Window Motor - Passenger
6	S602
7	Speaker - RF Door
8	Outside Rearview Mirror - Passenger
9	S600
10	C601
11	C600
12	S601

Fig 10: Body Harness Routing/Components Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C303
2	C600
3	C601
4	G301
5	Seat Belt Pretensioner - RF
6	Inflatable Restraint Side Impact Module - Right
7	C306
8	S303
9	C308
10	Roof/Door Module
11	Roof/Door Module
12	Relay Block - Rear
13	D300
14	Speaker - LR
15	Audio Amplifier C3
16	Audio Amplifier C1
17	Splice Pack SP300
18	Audio Amplifier C2
19	S307
20	Speaker - RR
21	C309
22	C202
23	C204
24	C200
25	Fuse Block - Rear C2
26	S306
27	Fuse Block - Rear C3
28	S301
29	S302
30	G302
