Installation Procedure

    Fig 1: View Of Transmission Control & Bolts
    GM745783Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the transmission control.
  2. Install the transmission control bolts.

    Tighten:  Tighten the transmission control bolts to 25 N.m (18 lb ft).

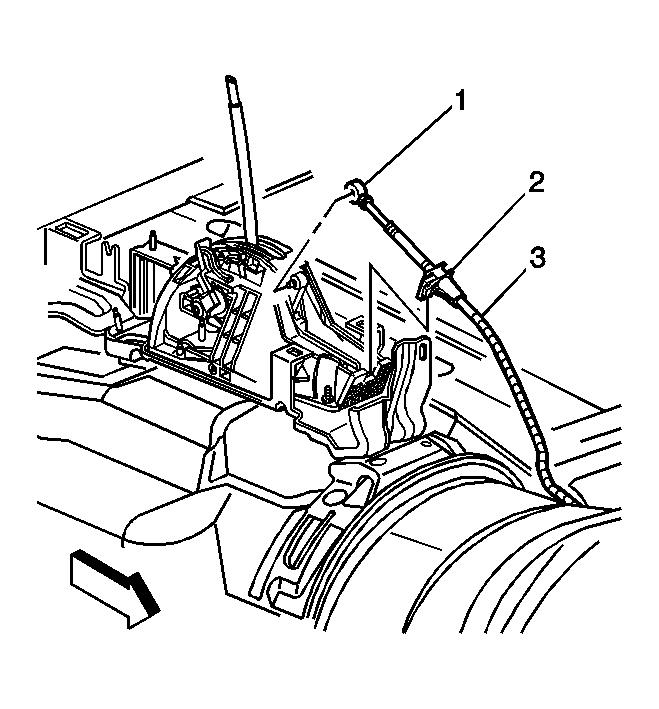

    3. Fig 2: View Of shift Control Cable & Shifter
    GM744173Courtesy of GENERAL MOTORS CORP.
  3. Install the range selector cable (2) to the floor shift control.
  4. Install the end of the range selector cable (1) to the transmission control ball stud.
  5. Connect the shift lock control solenoid wiring harness.
  6. Install the front floor console. Refer to Console Replacement in Instrument Panel, Gages and Console.
  7. Check for proper operation of the floor shift control.
  8. Adjust the range selector cable if necessary. Refer to Automatic Transmission Range Selector Cable Adjustment .
