Wheel Alignment Specifications: Specifications

Use illustrations for wheel alignment specifications. See Fig 1 .

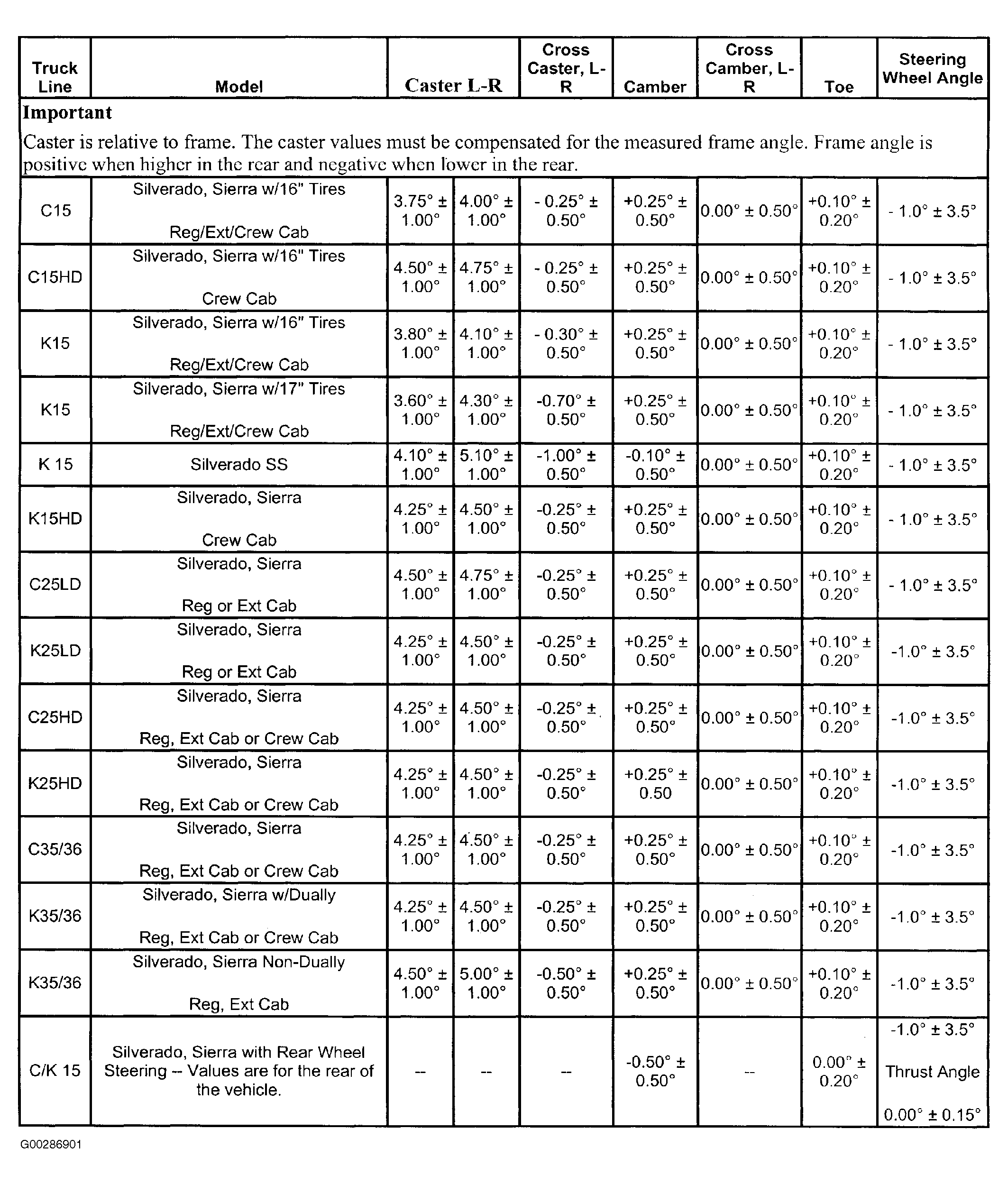

Fig 1: Wheel Alignment Specifications
G00286901Courtesy of GENERAL MOTORS CORP.
