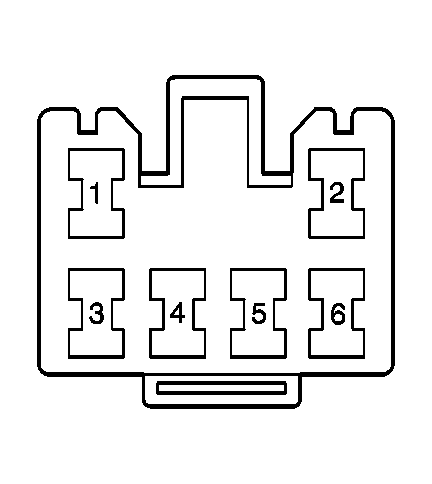

Shift Program Switch Connector End View
Shift Program Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Function |
| 1-2 |
- |
Not Used |
| 3 |
RED/YEL |
Shift Program Switch Supply Voltage |
| 4 |
ORN/BLU |
Shift Mode Signal |
| 5 |
BLK |
Ground - G201 |
| 6 |
RED/GRN |
LED Ground G200 |
