Inflatable Restraint IP Module Connector End View

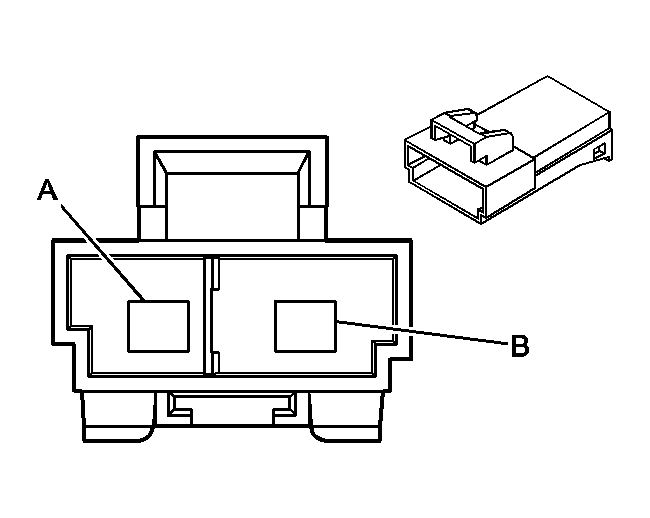

Inflatable Restraint IP Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
09707-02W01-22
YEL
Pin
Wire Color
Function
A
YEL
Passenger Frontal Low
B
YEL/RED
Passenger Frontal High
Courtesy of GENERAL MOTORS CORP.
