Transfer Case Control Schematics
WARNING:
This page is about a different variant/trim than selected.

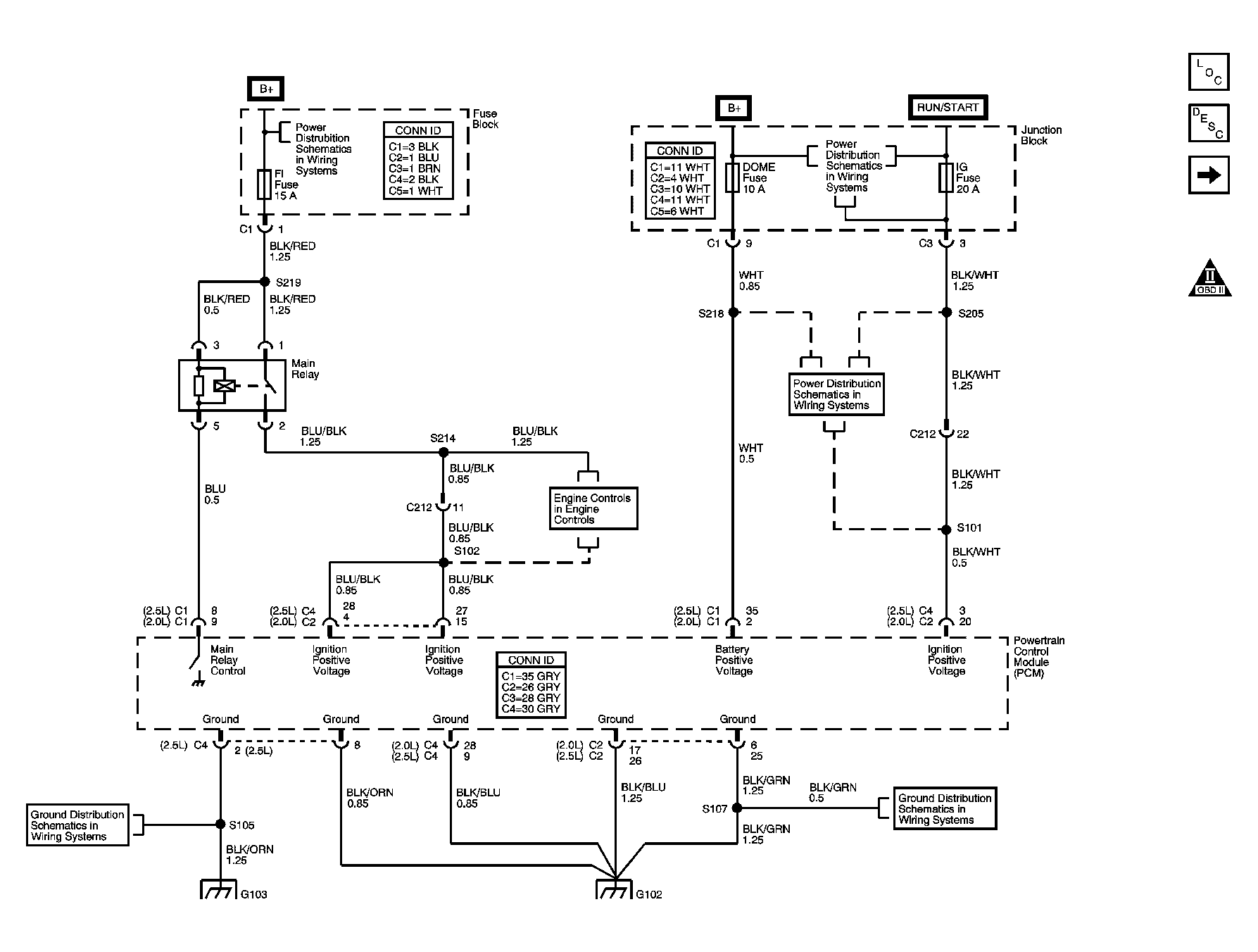

Fig 1: Main Relay, Powertrain Control Module (PCM) Power and Ground
Courtesy of GENERAL MOTORS CORP.

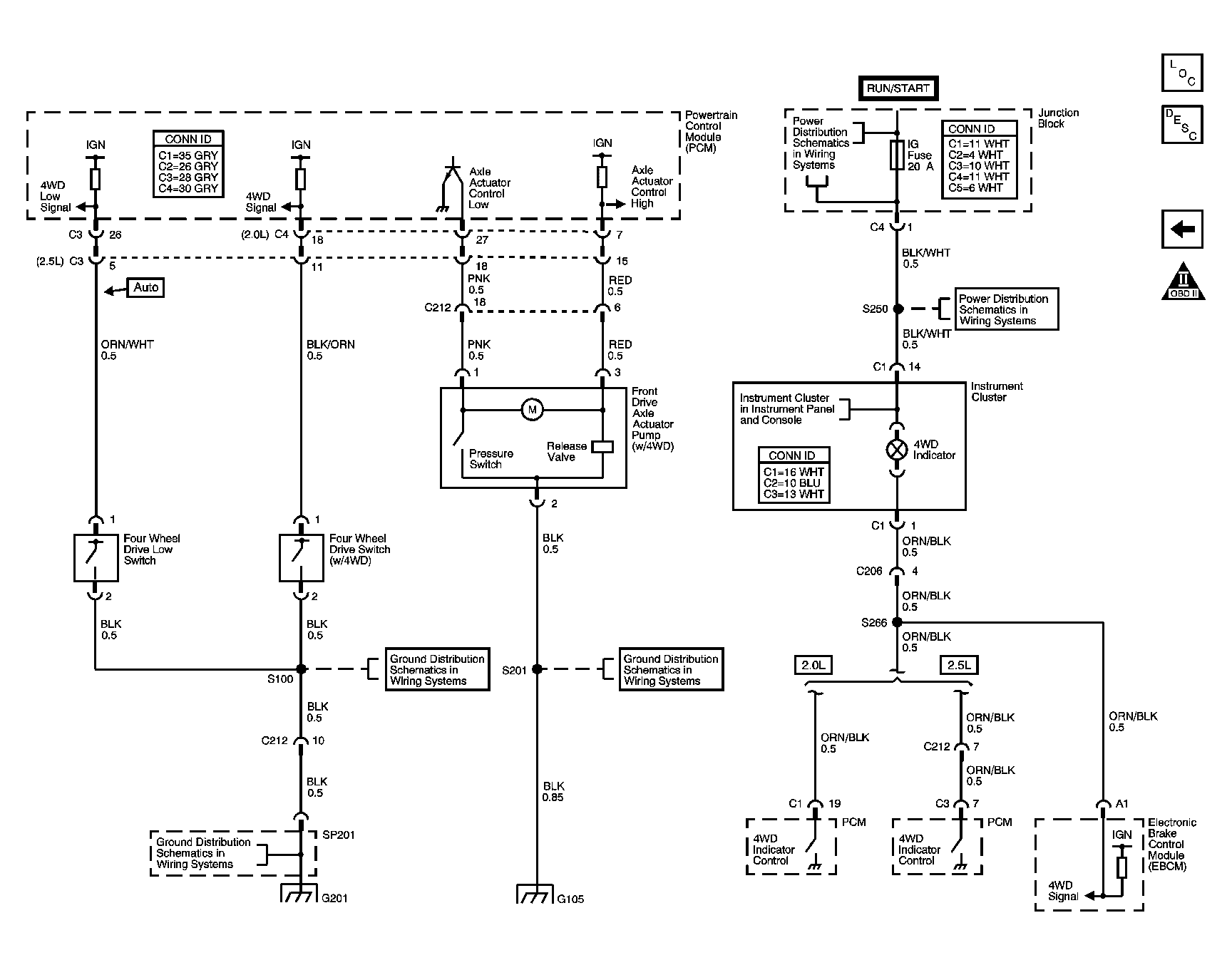

Fig 2: Four Wheel Drive Switches, Front Drive Axle Actuator
Courtesy of GENERAL MOTORS CORP.
