Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the bump stopper (3).

    Tighten:  Tighten the bump stopper to 50 N.m (36.5 lb ft).

  2. Install the spring rubber seat (1).
  3. Install the coil spring. Refer to Front Coil Springs Replacement .
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  5. Lower the vehicle.

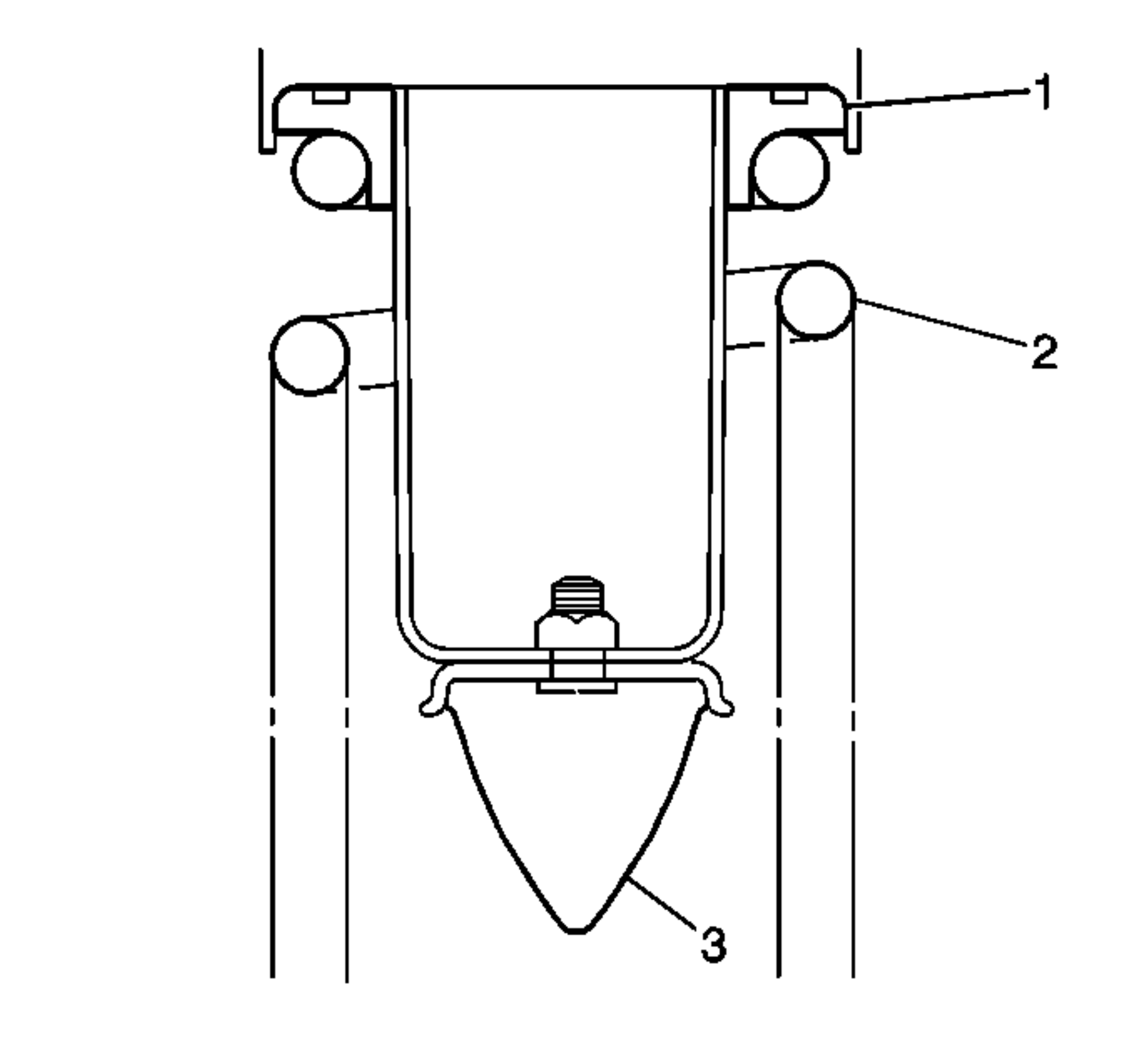

    6. Fig 1: View Of Coil Spring, Rubber Seat & Bump Stopper
    GM464754Courtesy of GENERAL MOTORS CORP.
